Product Name
|

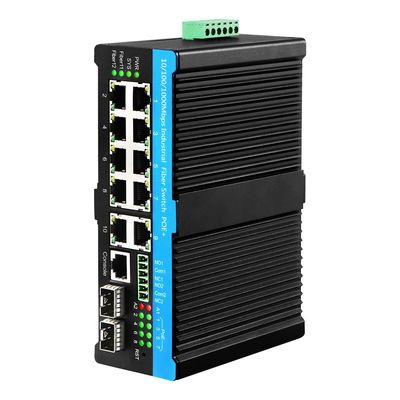

10/100/1000Mbps Managed Industrial POE Fiber Switch (2F+10TP)
|
|
Model No.
|
IM-FP21008GW
|
|

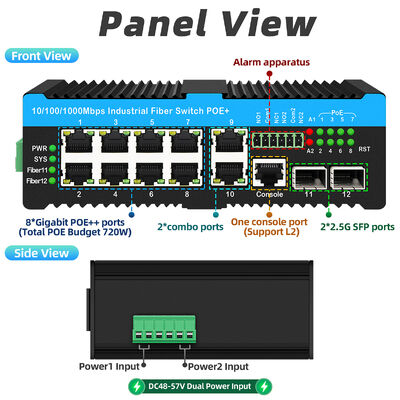

Port
|
2x 100/1000/2500Base-FX SFP Fiber
SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Standard
|
IEEE 802.3: 10Base-T 10Mbit/s Ethernet
IEEE 802.3u: 100Base-TX, 100Base-FX, Fast Ethernet
IEEE 802.3z: 1000Base-T Gbit/s Ethernet over fiber optic
IEEE 802.1d: STP (Spanning Tree Protocol)
IEEE 802.1s: 100Base-TX, 100Base-FX, Fast Ethernet
IEEE 802.1w: RSTP (Rapid Spanning Tree Protocol )
ITU-T G.8032 :ERPS (Ethernet Ring Protection Switching)
IEEE 802.1Q: Virtual LANs (VLAN)
IEEE 802.1X: Port based and MAC based Network, Access Control, Authentication
IEEE802.3ac: Max frame size extended to 9600Bytes.
IEEE 802.3ad: Link aggregation for parallel links with LACP(Link Aggregation Control Protocol)
IEEE 802.3x: Flow control for Full Duplex
IEEE 802.1ad: Stacked VLANs
IEEE 802.1p: LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization
IEEE 802.1ab: Link Layer Discovery Protocol (LLDP)
IEEE 802.1az: EEE (Energy Efficient Ethernet)
IEEE802.3af: 15.4W
IEEE802.3at: 30W
IEEE802.3bt: 90W
|
|
VLAND ID
|
4094 IEEE802.1Q VLAN VID
|
|
Switch Architecture
|
System bandwidth:58Gbps (non-traffic jam)
DRAM size: 128M Flash size: 16M Packet buffer size: 4Mb
|
|
Data Processing
|
Store and Forward
|
|
Flow Control
|
IEEE 802.3x for full duplex mode Back pressure for half duplex mode
|
|
Network
Connector
|
8x 10/100/1000Base-TX RJ-45
Auto MDI/MDI-X function,
|
|
Console
|
RS-232 (RJ-45)
|
|
Network Cable
|
UTP/STP above Cat. 5e cable
|
|
 Protocols
|
CSMA/CD
|
|
Reverse Polarity
Overload Current
Protection
|
Supported
Supported
|
|
CPU Watch Dog
|
Supported
|
|
Power Supply
|
Redundant DC48V (48~57VDC) Input or 100-240VAC
power (Removable Terminal Block )
|
|
Power
Consumption
|
3.5W(no-load)
|
|
LED
|
Per unit: Power 1 (Red), SYS (Red), Alarm
(Red) PoE(Green)
RJ-45 port: Link/Active (Green) Speed(Yellow)
SFP Fiber port: Link/Active (Green)
|
|
Jumbo Frame
|
9.6KB
|
|
IEEE802.3ac
|
Max frame size extended to 1522Bytes (allow Q-tag
in packet)
|
|
MAC Address Table
|
8K
|
|

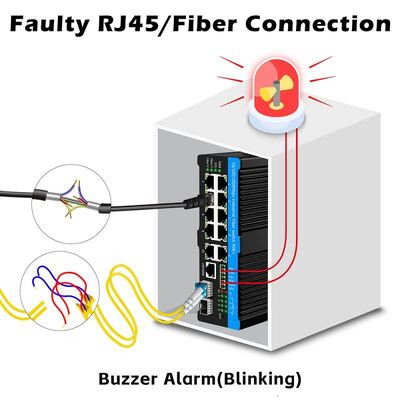

Warning Message
|
System Syslog, alarm relay
|
|

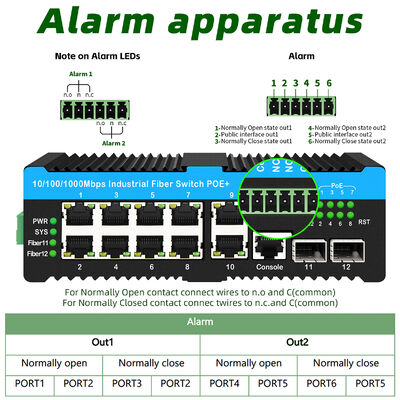

Alarm Relay
Contact
|
Relay outputs with current carrying capacity of 1 A
@30VDC
|
|
Operating Temperature
|
-40 ~ 75°C
|
|
Operating Humidity
|
0% to 95% (Non-condensing)
|
|
Storage Temperature
|
-40 ~ 85°C
|
|

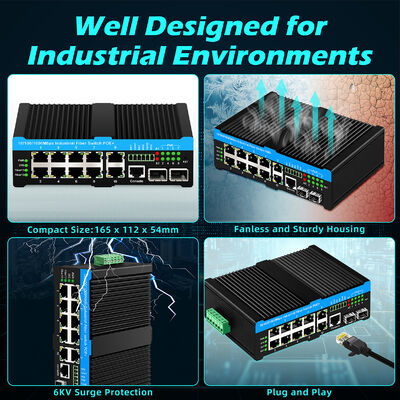

Dimensions
|
165 x 112 x 45.5mm
|
|
Weight
|
0.85kg
|
|
Installation Mounting
|
Din-rail mounting
|
|
FCC Emmission
|
CE
FCC Part 15 Subpart B Class B 2010
EN50121
EN 5502:2006+A1:2007
EN61000-3
EN55035
EN55032
EN50155
2:2006+A1:2009+A2:2009
|
|
Safety
|
EN62368
|
|
6KV Surge Protection
|
Supported for UTP and Fiber port
|
|
Shock
|
IEC 60068-2-27
|
|
Freefall
|
IEC 60068-2-32
|
|
Vibration
|
IEC 60068-2-6
|
|
Software Specifications
|
|
Topology
|
|
VLAN
|
IEEE 802.1q VLAN,up to 4094 802.1Q VLAN VID
IEEE 802.1q VLAN,up to 4094 Groups
IEEE 802.1ad
MAC-based VLAN,up to 256 entries
IP Subnet-based VLAN, up to 128 entries
Protocol-based VLAN(Ethernt, SNAP, LLC), up to 128 entries
VLAN Translation, up to 256 entries
GVRP (GARP VLAN Registration Protocal)
MVR ( Multicast VLAN Registration)
|
|
Link Aggregation
(Port Trunk)
|
Static (Hash with SA, DA, IP, TCP/UDP port), up to 5 trunk group
Dynamic (IEEE 802.3ad LACP), up to 5 trunk group
|
|
Spanning Tree
|
IEEE802.1d STP
IEEE802.1w RSTP
IEEE802.1s MSTP
|
|
POE/POE+
|
IEEE802.3at 30W
IEEE802.3af 15.4W
IEEE802.3bt 90W
|
|
Loop Protection
|
Supported
|
|
ITU-T G.8032 / Y.1344 ERPS (Ethernet Ring
Protection)
|
Recovery time <50ms
Single Ring, Sub-Ring, Multiple ring topology network
|
|
QoS Features
|
|
Class of Service
|
IEEE802.1p 8 active priorities queues for per port
|
|
Traffic Classification QoS
|
IEEE802.1p based CoS
IP Precedence based CoS
IP DSCP based CoS
|
|
Traffic Classification QoS
|
QCL(QoS Control List): Frame Type, Source/
Destination MAC, VLAN ID, PCP, DEI
QCE(QoS Control Entry): Protocol, Source IP, IP
Fragment, DSCP, TCP/UDP port number
|
|
DiffServ (RF 2474) Remarking
|
|
Storm Control
|
for Unicast, Broadcast, Multicast
|
|
IP Multicasting Features
|
|
IGMP / MLD Snooping
|
IGMP Snooping v1, v2, v3 / MLD Snooping v1, v2
Port Filtering Profile
Throttling, Fast Leave
Maximum Multicast Group : up to 1022 entries
Query / Static Router Port
|
|
Security Features
|
|
IEEE 802.1X
|
Port-Based
MAC-Based
|
|
ACL
|
Number of rules : up to 256 entries
for L2 / L3 / L4
L2 : Mac address SA/DA/VLAN
L3: IP address SA/DA, Subnet
L4: TCP/UDP
|
|
RADIUS authentication & accounting
|
|
TACACS+ authentication & accounting, TACACS+ 3.0
|
|
HTTPS, HTTP
|
Supported
|
|
SSL / SSH v2
|
Supported
|
|
User Name Password
Authentication
|
Local Authentication
Remote Authentication (via RADIUS / TACACS+)
|
|
Management Interface Access Filtering
|
Web, Telnet / SSH , CLI RS-232 console
|
|
Management Features
|
|
CLI
|
Cisco® like CLI
|
|
Web Based Management
|
|
Telnet
|
Server
|
|
SNMP
|
V1, V2c, V3
|
|
SW & Configuration
Upgrade
|
TFTP, HTTP
Redundant firmware in case of upgrade failure
|
|
Modbus/TCP
|
Support for management and monitoring
|
|
RMON
|
RMON I , RMON II
|
|
MIB
|
RFC1213 MIB II, Private MIB
|
|
UPnP
|
Supported
|
|
DHCP
|
Server, Client, Relay, Snooping
Snooping option 82
Relay option 82
|
|
IP Source Guard
|
Supported
|
|
Port Mirroring
|
Supported
|
|
Event Syslog
|
Syslog server (RFC3164) (Support 1 server )
|
|
Warning Message
|
System syslog, e-mail, alarm relay
|
|
IEEE1588
|
Support
|
|
NTP
|
Client
|
|
DNS
|
Client, Proxy
|
|
LLDP (IEEE 802.1ab)
|
Link Layer Discovery Protocol LLDP-MED
|
|
IPv6 Features
|
|
IPv6 Management
|
Telnet Server/ICMP v6
|
|
SNMP over IPv6
|
Supported
|
|
SSH over IPv6
|
Supported
|
|
IPv6 NTP
|
Client
|
|
IPv6 QoS
|
Supported
|
|
HTTP over IPv6
|
Supported
|
|
IPv6 Telnet
|
Supported
|
|
IPv6 TFTP
|
Supported
|
|
IPv6 ACL
|
Number of rules: up to 256 entries for L2 / L3 / L4
L2 : Mac address SA/DA/VLAN
L3: IP address SA/DA, Subnet
L4: TCP/UDP
|
|
Others Features
|
|
Green Ethernet
|
Supports IEEE802.3az EEE (Energy Efficient Ethernet)
Management to optimize the power consumption
Determine the cable length and lowering the power
for ports with short cables
Lower the power for a port when there is no link
LED Power Management :Adjustment LEDs intensity
|
|
Cable Diagnostic
|
Measuring UTP cable normal or broken point distance
|
