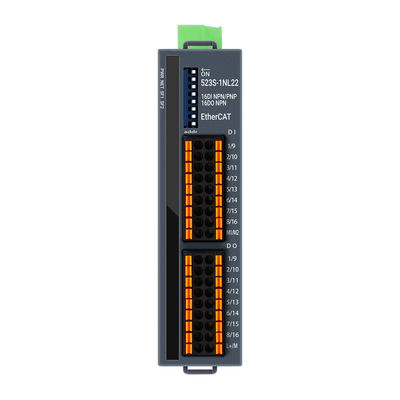

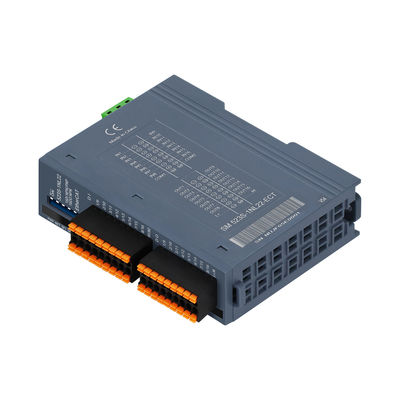

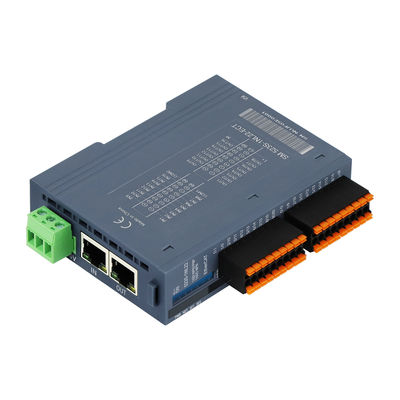

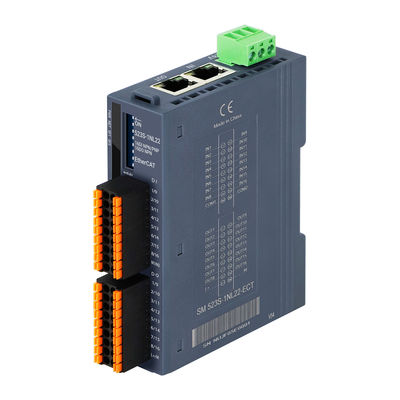

Industrial remote EtherCAT I/O Module 2 RJ45 100Mbit/s EtherCAT Standalone PAL I/O System Analog/ Digital DC24V Input

Industrial remote EtherCAT I/O Module 2 RJ45 100Mbit/s

EtherCAT Standalone PAL I/O System Analog/ Digital DC24V Input

Product Features of Industrial remote EtherCAT I/O Module

Packing

Application

Scenario: Automated Packaging Line

• Problem: In a packaging line, multiple sensors detect product positions, and actuators control motors and pneumatic devices. Any delay or failure in I/O communication can cause jams, product misalignment, or downtime.
• Solution with OM523S-1NL22-ECT:
  • Provides real-time I/O updates (≤500μs response), ensuring precise control of actuators and motors.
  • The EtherCAT high-speed network allows multiple OM523S modules to be daisy-chained, maintaining synchronized operation across the line.
  • Protection against voltage surges and reverse wiring reduces the risk of equipment damage and downtime.
• Benefit: Improves production efficiency, reduces error rate, and minimizes maintenance costs.

Ordering Details

FAQ:

1. Can the OM523S-1NL22-ECT work with mainstream EtherCAT PLCs?

Yes. The module supports the standard EtherCAT protocol and provides XML configuration files, making it compatible with most mainstream EtherCAT masters and PLC systems. This helps customers integrate the module quickly without complex secondary development.

2. How does this module help reduce production downtime?

The module includes reverse polarity protection, surge absorption, and overcurrent protection. These features help prevent damage caused by incorrect wiring or unstable power supply, reducing unexpected downtime and maintenance costs in industrial environments.

3. Is the response speed suitable for high-speed automation equipment?

Yes. The minimum I/O response time is 500μs, which is suitable for high-speed industrial automation applications such as packaging machines, conveyor systems, assembly lines, and robotic equipment that require real-time signal processing.

4. Can multiple modules be used in one EtherCAT network?

Yes. The system supports up to 255 slave stations in one segment (depending on the master controller capability). This allows customers to expand I/O points easily for large-scale automation systems.

5. What problems can this module solve in automated production lines?

The OM523S-1NL22-ECT helps customers achieve stable real-time communication between sensors, actuators, and PLC systems. It reduces signal delays, improves synchronization accuracy, minimizes wiring complexity, and enhances overall production efficiency.
