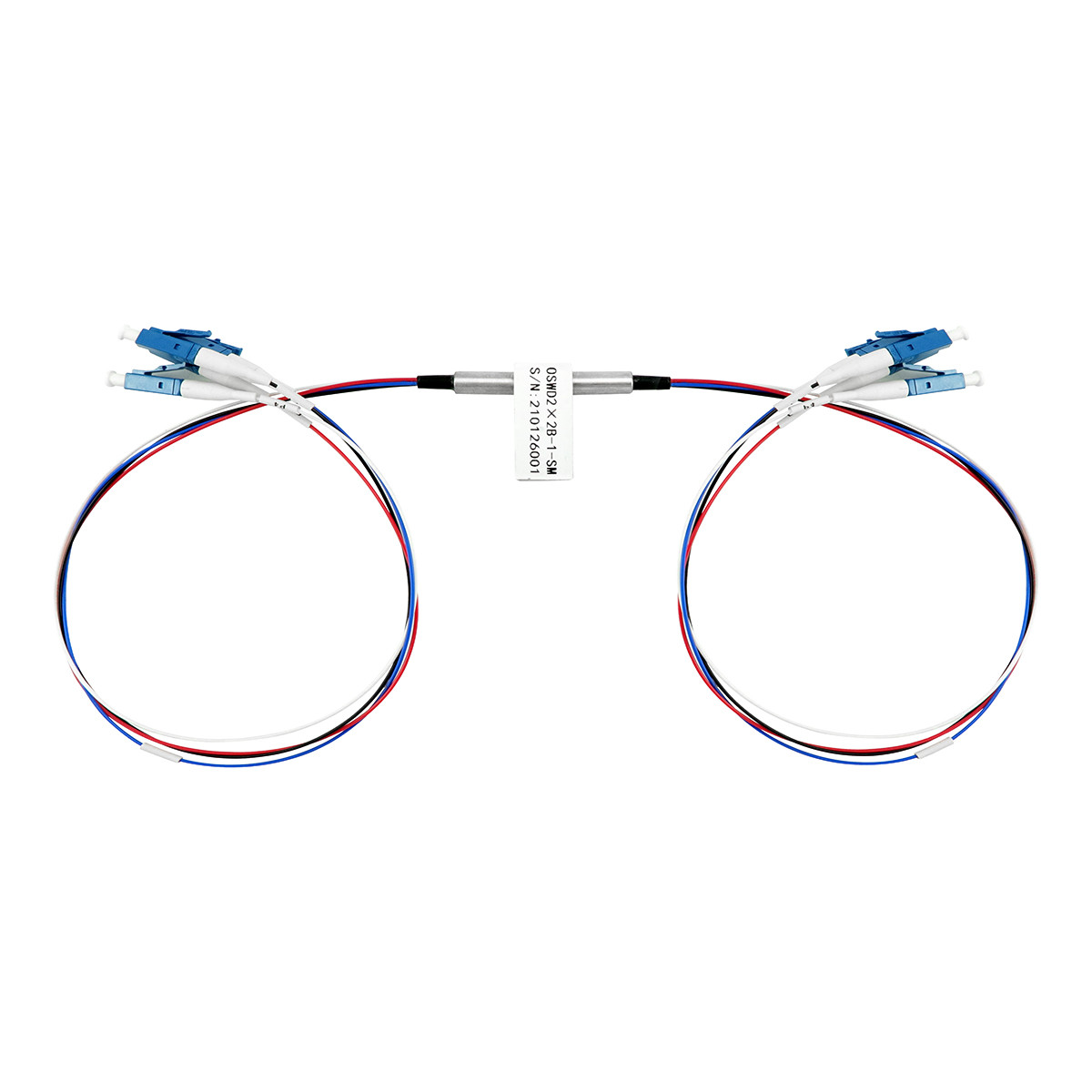

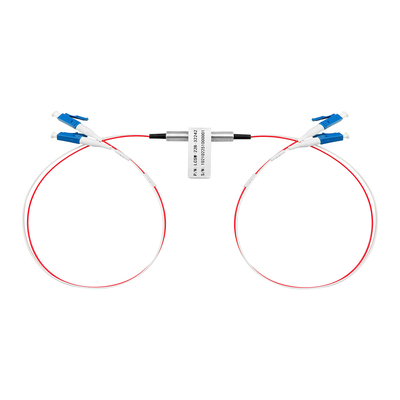

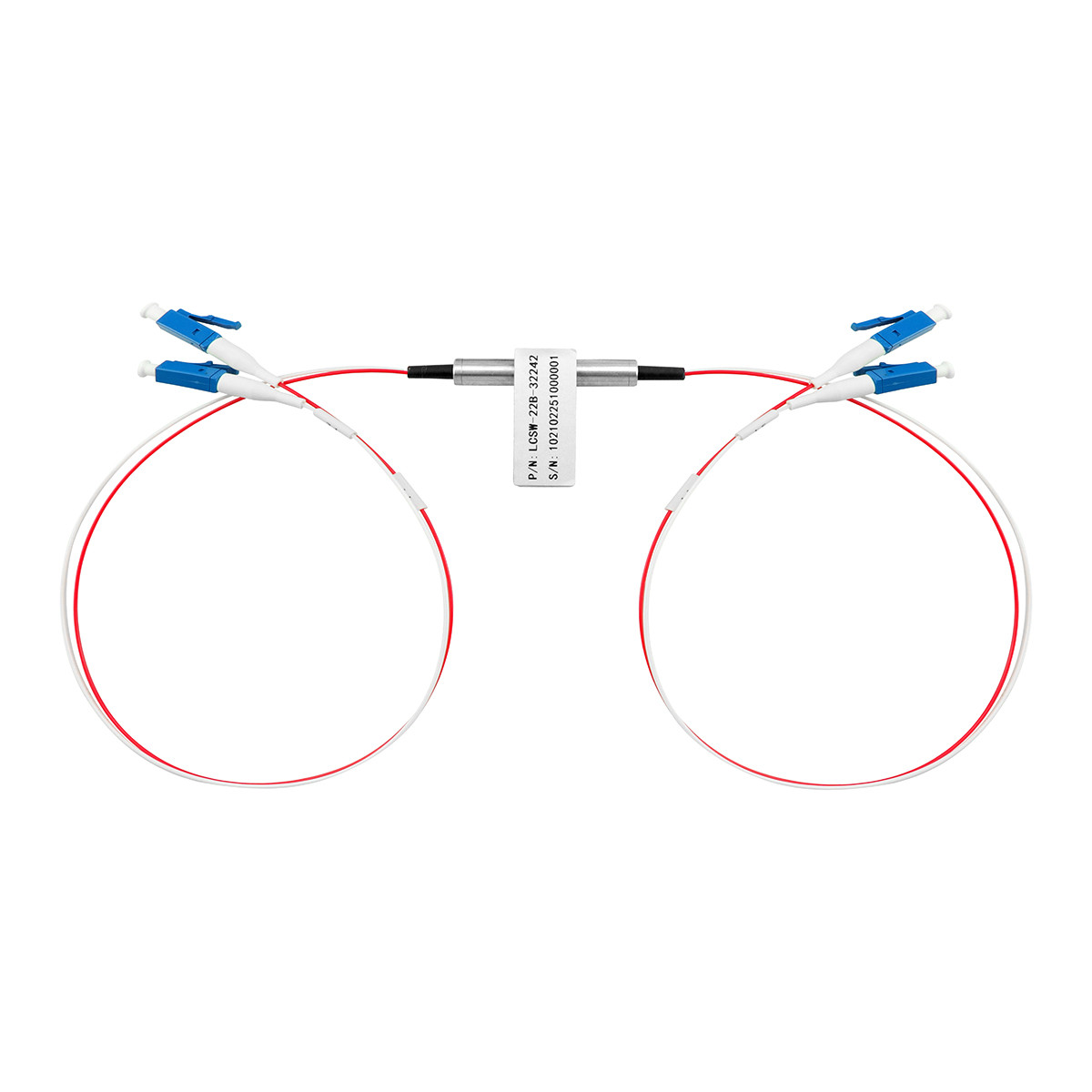

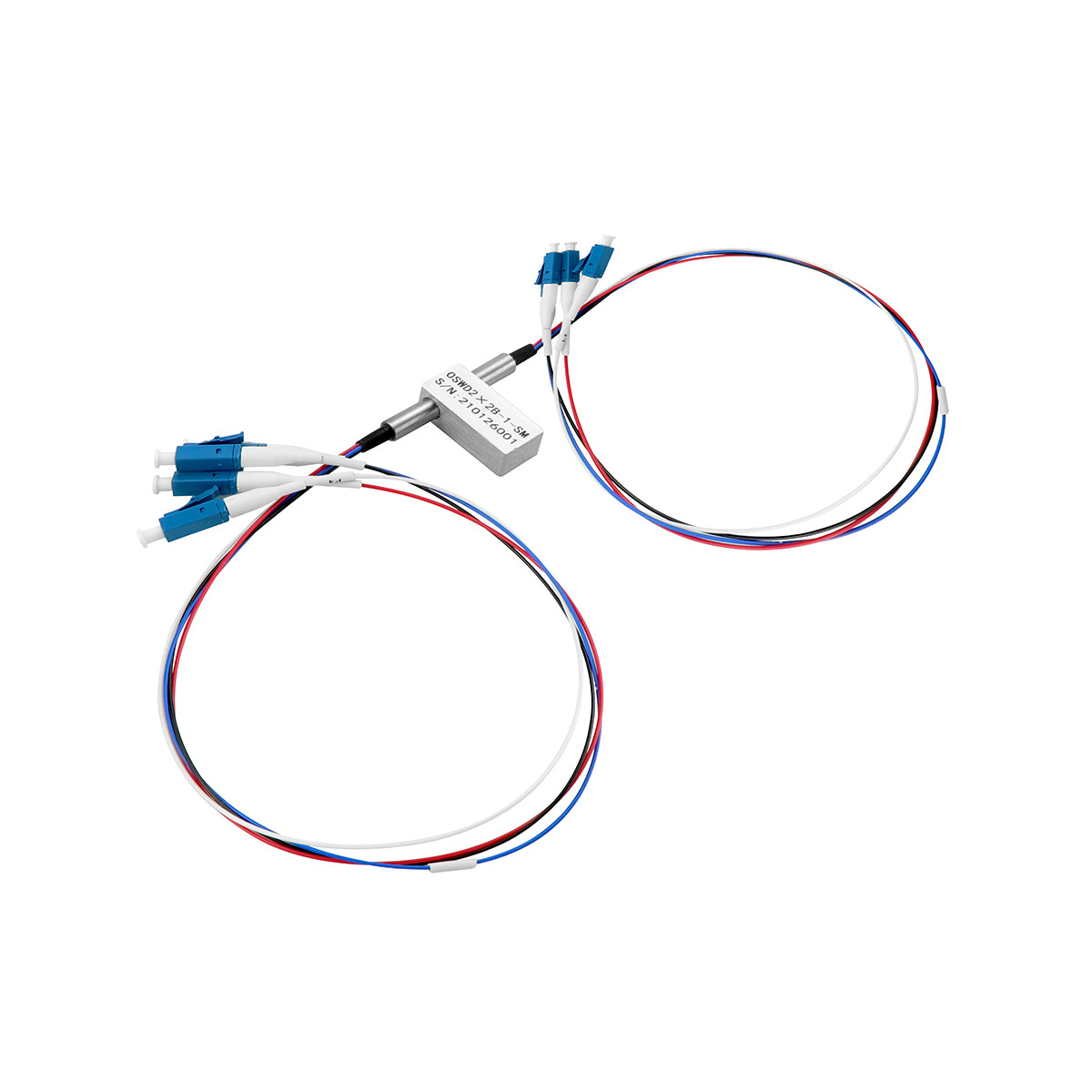

D2×2B Mechanical Bypass Optical Switch LC Connctor Singlemode Cross-Connect

1pc
MOQ
negotiable
Price
D2×2B Mechanical Bypass Optical Switch LC Connctor Singlemode Cross-Connect
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Bypass Fiber Optical Switch
Weight: 14g
Switching Time: <8ms
Dimension: 27*12*8mm
Highlight:

Singlemode Mechanical Bypass Optical Switch

,

Cross-Connect Mechanical Bypass Optical Switch

,

LC Connctor Mechanical Bypass Optical Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OSWD2×2B
Document: Olycom Fiber Bypass.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 200g G.W.
Delivery Time: 4~8 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description
D2×2B Mechanical Optical Switch

Features

  1. Low Insertion Loss
  2. Wide Wavelength Range
  3. Low Crosstalk
  4. High Stability, High-Reliability
  5. Epoxy-free on Optical Path
  6. Latching and Non-latching



Specifications



Parameters Unit OSWD2×2B
Wavelength Range nm 850±40 / 1300±40 1260 ~ 1650
Test Wavelength nm 850 / 1300 1310 / 1550
Insertion Loss 1, 2 dB Typ: 0.6 Max: 1.0 Typ: 0.6 Max: 1.0
Return Loss 1, 2 dB MM ≥ 30 SM ≥ 50
Crosstalk 1 dB MM ≥ 35 SM ≥ 55
PDL dB ≤0.05
WDL dB ≤0.25
Repeatability dB ≤±0.02
Operating Voltage V 3.0 or 5.0
Durability Cycles ≥ 10 Million
Switching Time ms Typ: 3 Max: 8
Optical Power mW ≤500
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Relative Humidity % 5 ~ 95
Weight g 14
Dimension mm (L)27.0×(W)12.0×(H)8.2 ±0.2

Note: 1. Within operating temperature and SOP.

2. Excluding Connectors.



Optical Switch, which is famous for its high performance, low insertion loss and compact dimension.

It is an ideal Component for OADM, OXC, system monitoring and protection.

With compact package, it can be easy to integrate into a high density optical communication system.



Applications



  1. R&D in Laboratory
  2. System Monitoring
  3. OADM
  4. MAN (Metropolitan Area Network)



Pin Configurations



Type State Optical Route Electric Drive Status Sensor
D2×2B     Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
Latching A P1-P3’,P2-P4’ -- -- GND V+ Close Open Open Close
B

P1-P1’,P2-P2’,

P3-P3’,P4-P4’,

 V+ GND -- -- Open Close Close Open
Non-latching A P1-P3’,P2-P4’ -- -- -- -- Close Open Open Close
B

P1-P1’,P2-P2’,

P3-P3’,P4-P4’,

 V+ -- -- GND Open Close Close Open



Optical Route



State A State B
D2×2B Mechanical Bypass Optical Switch LC Connctor Singlemode Cross-Connect 0 D2×2B Mechanical Bypass Optical Switch LC Connctor Singlemode Cross-Connect 1



Dimension



D2×2B Mechanical Bypass Optical Switch LC Connctor Singlemode Cross-Connect 2



Electrical Specification



Specifications Voltage Current Resistance
5V latching 4.5~5.5 V 36~44 mA 125 Ω
5V non-latching 4.5~5.5 V 26~32 mA 175 Ω
3V latching 2.7~3.3 V 54~66 mA 50 Ω
3V non-latching 2.7~3.3 V 39~47 mA 70 Ω


Ordering Information



7201-D2×2B-A-B-C-D-E-F-G

Example:7201-D2×2B-SM-FS-3-L-90-12-FA



A B C D E F G
Fiber Type Test Wavelength Operating Voltage Switch Type Tube Type

Fiber Length



 Connector

SM: SM, 9/125

M5:MM, 50/125

M6:MM, 62.5/125

X: Others

 85: 850±40nm
O: O band(1260~1360nm)
C: C band(1530~1565nm)
L: L band(1565~1625nm)
U: U band(1625~1675nm)
FS: 1260~1650nm

3: 3V

5: 5V



L: Latching

N: Non-latching

25:250um(Bare fiber)

90:900um

X: Others

 05: 0.5m±5m
10: 1.0m±5m
12: 1.2m±5m
15: 1.5m±5m
X: Others

OO: None

LP: LC/PC

LU: LC/UPC

LA: LC/APC

FP: FC/PC

FU: FC/UPC

FA: FC/APC

SP: SC/PC

SU: SC/UPC

SA: SC/APC

STP: ST/PC

STA: ST/APC

X: Others



D2×2B Mechanical Bypass Optical Switch LC Connctor Singlemode Cross-Connect 3

D2×2B Mechanical Bypass Optical Switch LC Connctor Singlemode Cross-Connect 4
