1+1 OLP Optical Line Protection Board

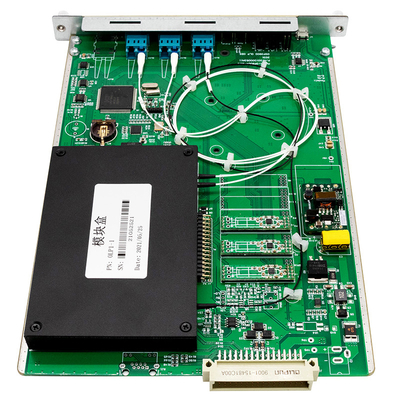

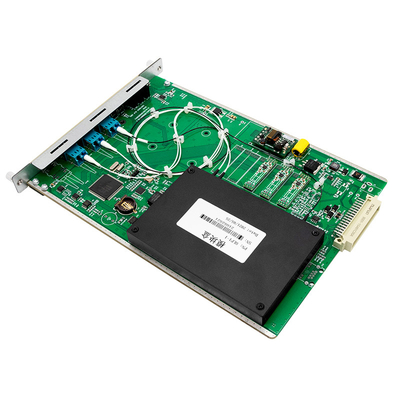

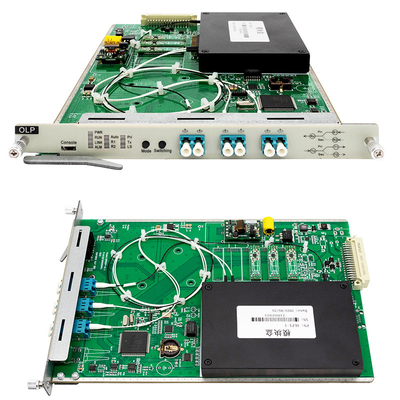

Product Diagram
| Function |
Description |
| OLP model |
3800-OLP1:1A3-A0 |
| Working wavelength range |
1260nm～1650nm |
| OLP type |
OLP-1:1(Choose to send and receive) |
| switching time |
＜35ms |
| Introducing loss |
Working path |
＜1.3dB |
| Alternate path |
＜1.3dB |
| Monitor optical power range |
-50 dBm～+25dBm |
| Application scenarios |
Optical line protection |
| Network management function |
Support real-time monitoring of OLP optical power, active switching scheduling, performance management, routing management and other functions |
| Number of occupied slots |
Support OSP3800 full series chassis, occupies 1 slot, (0.5U) |
| Optical interface |
LC/UPC |
| Max power consumption |
5W |
| MTBF |
＞100,000 hours |
- Olycom plug and play OLP card can be well integrated in OM3800 series 1U/2U/3U/5U chassis and takes up 0.5U slot.
- It can monitor the signal status of the main and backup optical paths in real time. Once the optical signal is interrupted or In the event of performance degradation, safe switching can be automatically performed on the primary and backup routes to ensure rapid recovery of the system's optical signals.
- OLP technology completes route switching operations at the optical layer.
- Optical layer protection has incomparable advantages in upper-layer business protection and is an ideal solution for non-blocking communication.
Interface and Indicator
| Interface Marking |
Name |
Function/Link |
| Rx |
OLP local output interface |
Connect to local device receiving port |
| Tx |
OLP local receiving interface |
Connect to the local device transmit port |
| R1 |
Main route receiving interface |
Connect to peer T1 |
| T1 |
Main routing output interface |
Connect to peer R1 |
| R2 |
Standby route receiving interface |
Connect to peer T2 |
| T2 |
Standby route output interface |
Connect to peer R2 |
| M1/M2 |
OTDR access port |
Test faulty lines in transmission routes |
| Interface Marking |
Name |
Description |
| PWR |
OLP power indicator |
On, OLP power supply is normal
off, power supply failure
|
| RUN |
OLP operation indicator |
On, the OLP is operating normally
off, there is an operating failure.
|
| Auto |
OLP working mode indicator |
On, working in automatic mode
off: working in manual mode
|
| R1 |
OLP main route receiving indicator |
On, reception is normal
off, reception is abnormal
|
| R2 |
OLP standby route receiving indicator |
On, reception is normal
off, reception is abnormal
|
| Pri |
Main route work indicator |
On, working on the main route |
| Tx |
Local receiving indicator |
On, reception is normal
off, reception is abnormal
|
| LS |
Working status of the internal optical source of the device |
On, it indicates normal operation
off, it indicates abnormality.
|
Maintenance
The reasonable use and proper storage of equipment can maintain good performance indicators for an extended period, prolonging its lifespan. Therefore, appropriate maintenance is necessary:
Devices should avoid strong mechanical vibrations, collisions, falls, and other mechanical damages. During transportation, it is necessary to have good packaging, shock absorption, rainproof, and waterproof measures.
Equipment should be kept clean regularly, and the working environment should be free from corrosive gases such as acids or alkalis. You can use a clean towel dampened with water or soapy water to gently wipe the chassis and panels. The use of solvents like alcohol for cleaning is prohibited.
When removing fiber optic cables, promptly cover them with dust caps to prevent hard objects, dust, or other contaminants from touching the fiber end faces.
Online real-time monitoring of OLP disk working status
Online real-time monitoring of OLP’s current working routing
Online real-time monitoring of OLP working mode manual or automatic
Online real-time monitoring of OLP access side receiving and transmitting optical power
Real-time monitoring of OLP primary and secondary routing transmitting and optical power
