Home /Products/Industrial Managed POE Switch/1U Rack 24 Ports Gigabit L2 Managed Industrial Network POE Switch With 12 RJ45+12 SFP

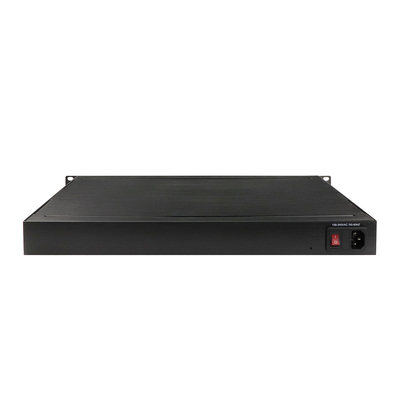

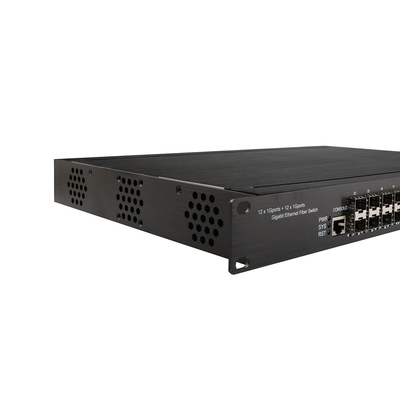

1U Rack 24 Ports Gigabit L2 Managed Industrial Network POE Switch With 12 RJ45+12 SFP

1 pc
MOQ
Negotiable
Price
1U Rack 24 Ports Gigabit L2 Managed Industrial Network POE Switch With 12 RJ45+12 SFP
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 24 Port 1U Rack Network Switch
Network: POE, ERPS, STP, RSTP, SNMP
Input Voltage: DC48V
Consumption: 300W
Communication Mode: Full-Duplex & Half-Duplex
Sample: Available
Highlight:

12 SFP Industrial network POE switch

,

24 ports Industrial network POE switch

,

1U Rack Industrial network POE switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP121212GW V1
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T, PayPal
Supply Ability: 5000pcs/month
Product Description

1U Rack 24 ports gigabit L2 managed

Industrial network POE switch with 12 RJ45+12 SFP



Key Features



  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  • IEEE 802.3af power on to 1 ~ 12 RJ45 ports
  • 12 x 10/100/1000Mbps Auto-sensing TX RJ45 ports
  • 12 x 1000Mbps SFP fiber ports
  • Support cable diagnosis and can locate the fault point
  • Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  • Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  • Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
  • Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  • Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  • Support IGMP agent report, MLD snooping
  • Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  • Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  • Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.



Specification



Product Name 10/100/1000Mbps managed Industrial POE Fiber Switch (12F+12TP)
Model No. IM-FP121212GW
Port

12 x 1000Mpbs SFP ports

12x10/100/1000M UTP RJ45
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Poe Standard IEEE802.3af, total MAX power is 340W
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

Input voltage:DC48V

Non-polar power input :support
Environment

Working temperature:-40°～ 85°C

Working humidity:5%～95%,non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A, EN61000-6-4- Emission for industrial environment

EMS:EN61000-6-2-Immunity for industrial environment, EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2, Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32, Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4
Mechanical information

Safety class:IP30

Dimension:483x 275 x 44.5mm
Warranty Replacement within 1year; 5 years repairing




Dimension



1U Rack 24 Ports Gigabit L2 Managed Industrial Network POE Switch With 12 RJ45+12 SFP 0


Packing



1U Rack 24 Ports Gigabit L2 Managed Industrial Network POE Switch With 12 RJ45+12 SFP 1





FAQ

1 Q: What is your lead time?

A:It usually takes 3~5 working days to produce and then will send goods.



2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.



3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.



4 Q: Something about pricing.

A: Good quality components for our products. Low prices for big and repeat orders.



5 Q: What is warranty time?

A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
