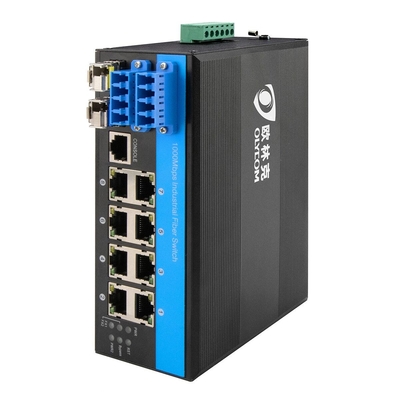

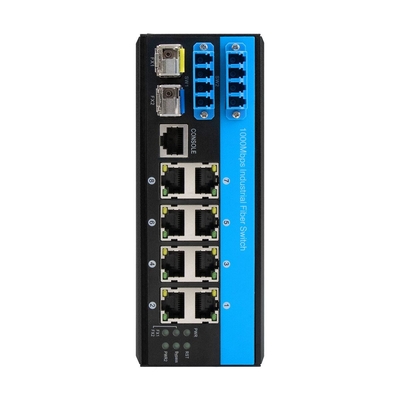

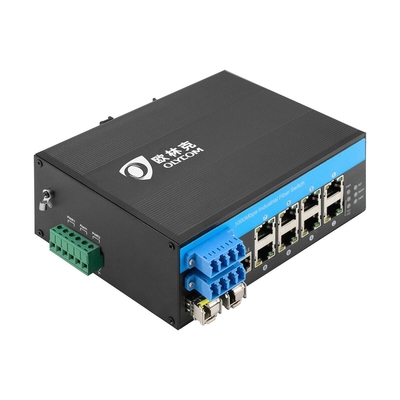

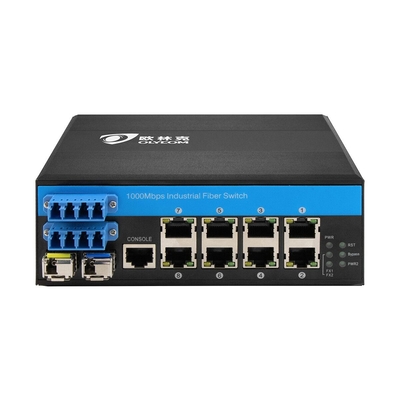

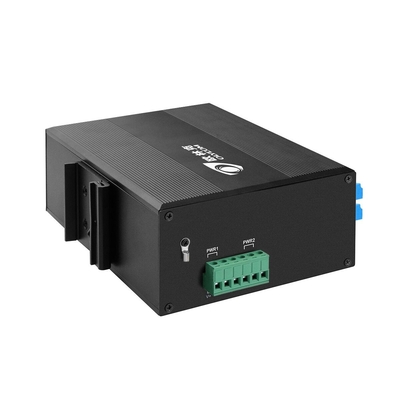

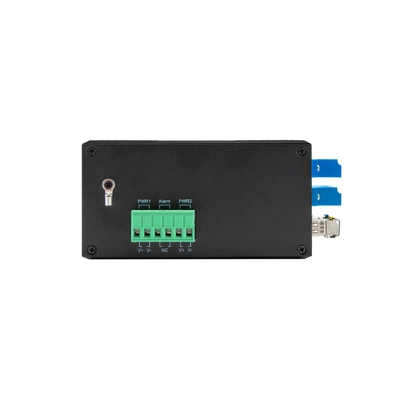

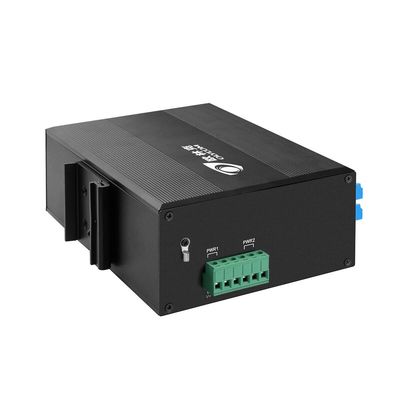

8 port optical fiber Switch managed industrial network switch witch D2*2B bypass

1 pc
MOQ
Negotiable
Price
8 port optical fiber Switch managed industrial network switch witch D2*2B bypass
Features Gallery Product Description Ratings & Review Request A Quote
Features
Specifications
Product Name: Industrial Network Switch Witch D2*2B Bypass
Function: LACP, QoS, SNMP, VLAN Support
Use: Telecommunication And Security Field
Optical Fiber: 2*2.5G LC Port
OEM: Accept
Highlight:

Managed Industrial POE Fiber Switch

,

2.5G SFP POE Fiber Switch

,

10 Port Managed POE Switch
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Olycom
Certification: CE
Model Number: IM-FBS280GW v1
Payment & Shipping Terms
Packaging Details: 1pc in a box
Delivery Time: 3~5 working days
Payment Terms: T/T,PayPal
Supply Ability: 5000pcs/month
Product Description

8 port optical fiber Switch managed industrial network switch witch D2*2B bypass


IM-FBS280GW is a 10/100/1000 Mbps industrial fiber bypass switch supporting following features

  • Wide voltage dual power input
  • Web GUI management
  • Din rail installation

FCC and CE certificationAnd as an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as

  • Metropolitan area network (MAN)
  • Dynamic configuration of add/drop multiplexing
  • System monitoring

Laboratory research and developmentMeantime, the fiber pass switch characterizes

  • Low Insertion Loss
  • Wide Wavelength Range
  • Low Channel Crosstalk


Key Features


  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x2.5G SFP fiber ports, 2 x Bypass ports
  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~75 ° c


Specification


Product Name 10/100/1000Mbps Managed Industrial Fiber Bypass Switch (2F+8TP)
Model No. IM-FBS280GW
Port

2 x 2.5G SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table 8K
Switching features

Transmission mode:storage and forward

System bandwidth:58Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber, bypass
Power supply

Input voltage: DC 9-52V; No-load power: 5W;

Reverse connection: support
Environment Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4
Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;
Warranty 3 years


Fiber Bypass
Category Unit Specification
Wavelength range nm 850±40/1300±40 1260~1650
Test wavelength nm 850/1300 1310/1550
Insert loss dB Typ:0.6 Max:1.0 Typ:0.6 Max:1.0
Return loss dB MM≥30 SM≥50
Channel crosstalk dB MM≥35 SM≥55
Polarization loss dB ≤0.05
Wavelength loss dB ≤0.05
Temperature loss dB ≤0.05
Repeat-ability dB ≤0.05
Operating voltage v 3.3V-5V
Service life times ≥100000000
Switching time ms ≤10
Transmission optical power mw ≤500
Operating temperature ºc -20~+70
Storage temperature ºc -40~+85

Application of optical bypass switch


8 port optical fiber Switch managed industrial network switch witch D2*2B bypass 0

8 port optical fiber Switch managed industrial network switch witch D2*2B bypass 1


1. Critical Industrial Control Networks (PLC / SCADA)
* In PLC and SCADA systems, switches are often deployed in critical communication paths
* In case of power failure or device malfunction, the built-in Bypass function automatically maintains link connectivity
* Prevents network interruption caused by single device failure
* Ensures continuous data transmission in mission-critical industrial automation environments


2. Video Surveillance & Security Systems
* Widely used in IP surveillance networks with daisy-chain or ring topologies
* Traditional switches may cause complete link failure if a node loses power
* With Bypass functionality, the link remains active even when the switch is powered off
* Guarantees uninterrupted video transmission for security-critical applications

3. Daisy-Chain Topology Deployments
* Common in industrial environments to reduce cabling costs
* However, traditional daisy-chain networks are vulnerable to single-point failures
* With Bypass-enabled switches:
Failed nodes are automatically bypassed
Downstream communication remains unaffected
* Significantly improves fault tolerance in linear network architectures

FAQ

1. What is an optical bypass switch?
A: it is also named a bypass TAP used for automatically switching faulty nodes when power outages or failures take place, this secures the complete optical transmission.

2. Where it is used?
A: It is mainly used to prevent network outages, protect the network or control the networking system in the optical telecommunication. It can be used in ring or linear fiber network architectures such as railway communication systems, factory automation, and power substations.

3. What are the ordering options?
A: There is SC connector singlemode(4 port), LC singlemode(4 port and 8 port) and LC multimode(4 port and 8 port)for your choice as below photos.

4. Can your optical bypass units work with different switches?
A: Yes, this device is about the optical transmission level and not involving any network protocols.
It can work with any switches of different optical rates(100M/1G/2.5G/10G/25G/40G/100G).

5. What is the switching time?
A: No more than 10ms, this depends on the optical switch component inside.
