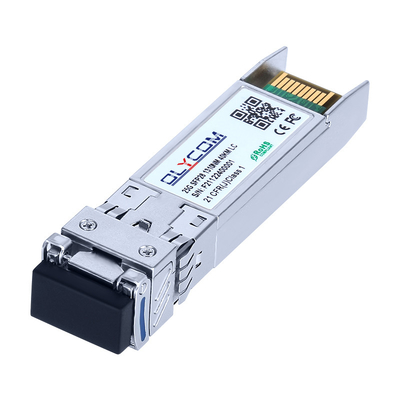

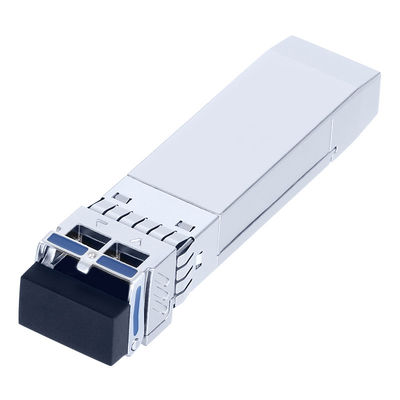

25G SFP28 40KM Transceiver Module LAN-WDM Single Mode Dual LC Port DDM

1pc
MOQ
negotiable
Price
25G SFP28 40KM Transceiver Module LAN-WDM Single Mode Dual LC Port DDM
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 25G SFP28 Fiber Module
Distance: 40KM
Speed: 25.78Gbps
Connector: LC, Dual Port
High Light:

40KM SFP28 Transceiver Module

,

25G SFP28 Transceiver Module

,

LAN-WDM SFP28 Transceiver Module

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OSPLTG40D
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 200g G.W.
Delivery Time: 4~8 days
Payment Terms: T/T, PayPal
Supply Ability: 2000pcs/month
Product Description

Single Mode 40KM 25G SFP28 Transceiver



Product Features



  • Supports up to 25.78Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • Up to 40km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply2
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature 0 to +70°C



25G SFP28 40KM Transceiver Module LAN-WDM Single Mode Dual LC Port DDM 0



Optical Characteristics



Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Lane Wavelengths(Range)

1272.55 to 1274.54

1276.89 to 1278.89

1281.25 to 1283.27

1285.65 to 1287.69

1290.07 to 1292.12

1294.53 to 1296.59

1299.02 to 1301.09

1303.54 to 1305.63

1308.09 to 1310.19

nm
Average Launched Power PO 0   +6.0 dBm
Average Launched Power(Laser Off) Poff - - -30 dBm
Spectrum Bandwidth(-20dB) Dl - - 1 nm
Side-Mode Suppression Ratio SMSR 30 - - dB
Transmitter and Dispersion Penalty TDP     1 dB
Extinction Ratio ER 3.5   - dB
Output Eye Mask Compliant with IEEE 802.3cc   Note (2)
Receiver
Input Optical Wavelength λIN 1272.55 - 1310.19 nm
Receiver Sensitivity-AVG PSens     -19 dBm Note (1)
Receiver Sensitivity-OMA PSens-OMA     -18.2 dBm Note(1)
Input Saturation Power (Overload) PSAT -4 - - dBm Note (1)
Receiver Reflectance       -26 dB
Los Of Signal Assert PA -30 - - dBm
Los Of Signal De-assert PD - - -20 dBm
LOS -Hysteresis PHys 0.5     dB


Note:

Note (1): BER≤5x10-5



Electrical Interface Characteristics



High Speed Electrical Interface Characteristics



Parameter Symbol Min Typ Max Unit Notes
Transmitter
Differential input swing Vin(pp) 190   700 mV
Differential input return loss (min) RLd(f) 9.5–0.37f, 0.01≤f<8 dB
4.75–7.4log10(f/14), 8 ≤f<19

Differential to common mode input

return loss (min)

RLdc(f) 22-20(f/25.78), 0.01≤f<12.89 dB
15-6(f/25.78), 12.89≤f<19
Differential termination mismatch Tm - - 10 %
Eye width Ew - - 0.46 UI
Applied pk-pk sinusoidal jitter Ppj Per IEEE 802.3bm
Eye height Eh - 95 - mV
DC common mode voltage DCv -350 - 2850 mV
Receiver
Differential data output swing Vout(pp) 300 - 850 mV
Eye width Ew 0.57 - - UI
Vertical eye closure Vec - - 5.5 dB
Differential output return loss (min) RLd(f) 9.5–0.37f, 0.01≤f<8 dB
4.75–7.4log10(f/14), 8 ≤f<19
Common to differential mode conversion return loss (min) RLdc(f) 22-20(f/25.78), 0.01≤f<12.89 dB
15-6(f/25.78), 12.89≤f<19
Differential termination mismatch Tm - - 10 %
Transition time, 20% to 80% Tr/Tf 12 - - ps 20%~80%



LOW Speed Electrical Interface Characteristics



Parameter Symbol Min. Typ. Max. Unit Note
Transmitter
Transmitter Fault Output-High VFaultH 2 - Vcc+0.3 V
Transmitter Fault Output-Low VFaultL 0 - 0.8 V
Transmitter Disable Voltage- High VDisH 2 - Vcc+0.3 V
Transmitter Disable Voltage- low VDisL 0 - 0.8 V
Receiver
LOS Output Voltage-High VLOSH 2 - Vcc+0.3 V
LOS Output Voltage-Low VLOSL 0 - 0.8 V



Diagnostics



Parameter Range Unit Accuracy Calibration
Temperature 0 to 70 °C ±3°C Internal
Voltage 3.0 to 3.6 V ±3% Internal
Bias Current 0 to 100 mA ±10% Internal
TX Power 0 to 6 dBm ±3dB Internal
RX Power -19 to -4 dBm ±3dB Internal



Description



The SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 40km transmission distance with SMF.



The transceiver consists of three sections: a cooled DML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.



The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.



Application



25GBASE-ER



25G SFP28 40KM Transceiver Module LAN-WDM Single Mode Dual LC Port DDM 1



Ordering information



Part Number Product Description
OSPLTG40D LAN-WDM, 25.78Gbps, LC, 40km, 0°C~+70°C, with DDM



λC Wavelength Guide
Channel Central Wavelength Wavelength Range
02 1273.54 1272.55 to 1274.54
03 1277.89 1276.89 to 1278.89
04 1282.26 1281.25 to 1283.27
05 1286.67 1285.65 to 1287.69
06 1291.10 1290.07 to 1292.12
07 1295.56 1294.53 to 1296.59
08 1300.05 1299.02 to 1301.09
09 1304.58 1303.54 to 1305.63
10 1309.14 1308.09 to 1310.19
