Home /Products/SFP Module Transceiver/100Gbps QSFP28 Fiber Optic Transceiver CWDM4 Single Mode 2KM For Data Center

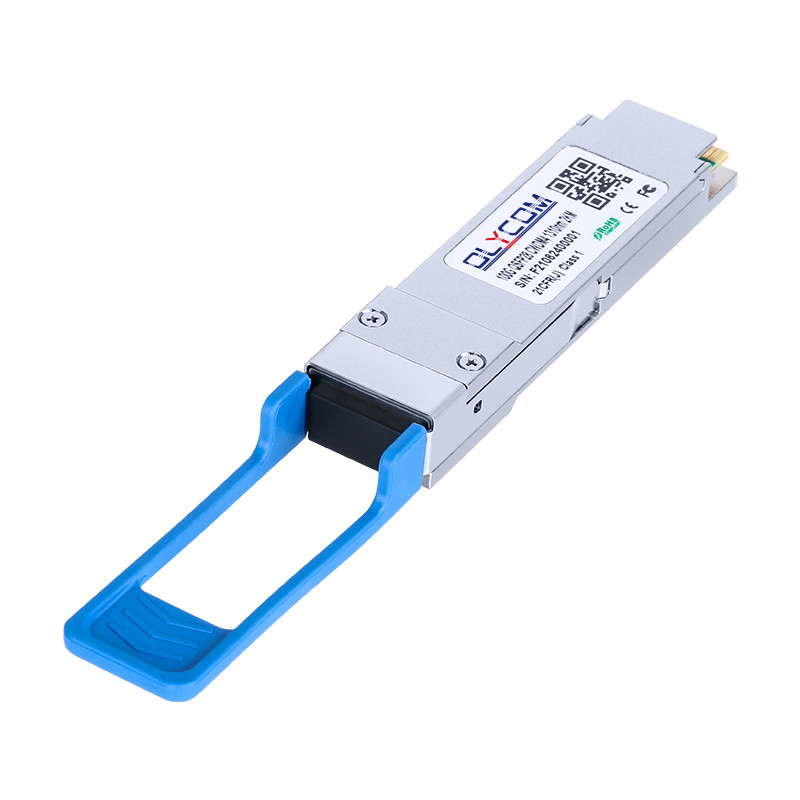

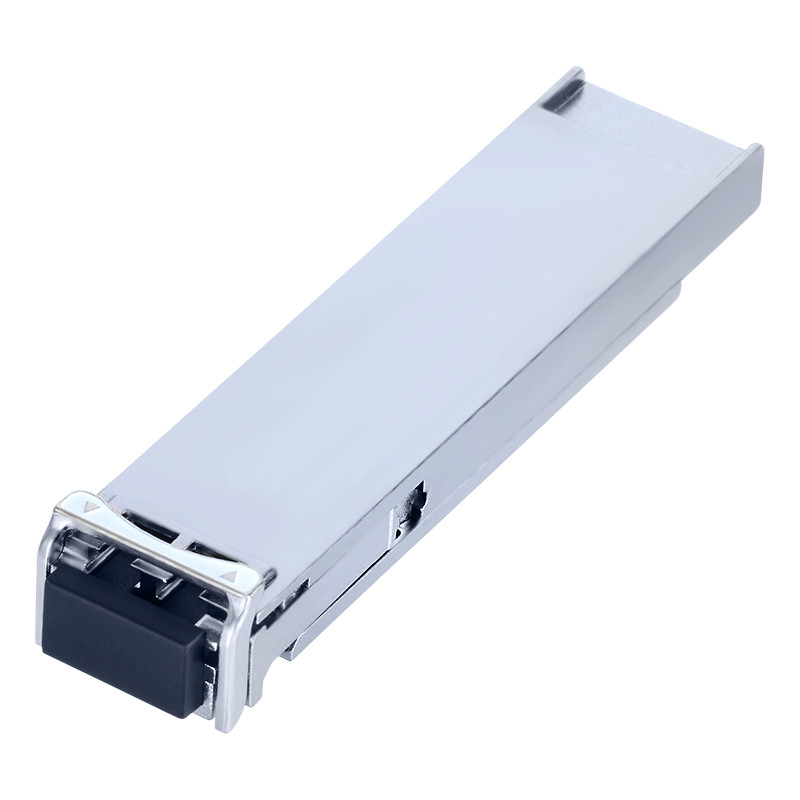

100Gbps QSFP28 Fiber Optic Transceiver CWDM4 Single Mode 2KM For Data Center

1pc
MOQ
negotiable
Price
100Gbps QSFP28 Fiber Optic Transceiver CWDM4 Single Mode 2KM For Data Center
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 100G QSFP28 Optical Module
Transmission Distance: 2KM
Connector: Duplex, LC Port
Speed: 4*25.78Gb/s
Power Supply: 3.3V
Application: Switch, Router, Data Center
Highlight:

Data Center QSFP28 Fiber Optic Transceiver

,

100Gbps QSFP28 Fiber Optic Transceiver

,

CWDM4 QSFP28 Fiber Optic Transceiver
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: OQSPLHG02D
Document: DWDM OTN SYSTEM OLYCOM.pdf
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 200g G.W.
Delivery Time: 4~7 days
Payment Terms: T/T, PayPal
Supply Ability: 1500pcs/month
Product Description

OQSPLHG02D CWDM 4 Single Mode 100G QSFP28 Transceiver



DESCRIPTION of 100G Fiber Module



OQSPLHG02D is 100Gb/s QSFP28 IR4 transceiver. It is compliant with the QSFP28 MSA and IEEE 802.3ba. QSFP28 IR4 transceiver modules are designed for use in 100 Gigabit Ethernet interfaces over single mode fiber.



FEATURES of QSFP 28 Transceiver



  • Hot-pluggable QSFP28 form factor
  • Supports 25G/28G Dual-Rate operation
  • Maximum link length of 2km on Single Mode Fiber (SMF)
  • Power dissipation < 3.5W
  • Built-in digital diagnostic functions
  • Supports 40G/100G Dual Mode operation with CDR auto-bypass mode
  • 4x25.78Gb/s DFB-based CWDM transmitter
  • Duplex LC receptacles
  • Single 3.3V power supply
  • RoHS compliant
  • Operating case temperature: 0~+70°C



OPTICAL SPECIFICATION



Parameter Symbol Min Typical Max Units Notes
Transmitter
Signaling rate per lane   25.78125±100ppm Gb/s 1
Center wavelength λ

1264.5 – 1277.5

1284.5 – 1297.5

1304.5 – 1317.5

1324.5 – 1337.5

 nm
Sidemode Suppression ratio SMSR 30         nm
Transmit OMA per Lane TXP -4       2.5 dBm
Transmit Average Power per Lane Pout -6.5       2.5 dBm
Optical Extinction Ratio ER 3.5       dB
Average launch power of OFF transmitter, per lane           -30 dBm
Transmitter and dispersion penalty, each lane TDP         3 dB
Transmitter Reflectance RL         -12 dB/Hz

Transmitter eye mask definition {X1, X2, X3, Y1, Y2, Y3}



   {0.31, 0.4, 0.45, 0.34, 0.38, 0.4}   2
Receiver















 -130
Signaling rate per lane   25.78125±100ppm Gb/s 1
Center wavelength λ

1264.5 – 1277.5

1284.5 – 1297.5

1304.5 – 1317.5

1324.5 – 1337.5

 nm
Average Receive Power per Lane RXP -11.5   2.5 dBm
Damage threshold, each lane   3.5     dBm
Unstressed Receiver Sensitivity (OMA), each lane RXsens     -10 dBm
Stressed Receiver OMA Sensitivity SRS     -7.3 dB
LOS De-Assert LOSD     -12 dBm
LOS Assert LOSA -30     dBm
LOS Hysteresis LOSh 0.5     dB



APPLICATION



  • 100G CWDM4 applications with FEC
  • High-density data center switches, routers



100Gbps QSFP28 Fiber Optic Transceiver CWDM4 Single Mode 2KM For Data Center 0



PIN DESCRIPTION



Pin Symbol Name/Description Ref.
1 GND Ground 1
2 Tx2n Transmitter Inverted Data Input
3 Tx2p Transmitter Non-Inverted Data Input
4 GND Ground 1
5 Tx4n Transmitter Inverted Data Input
6 Tx4p Transmitter Non-Inverted Data Input
7 GND Ground 1
8 ModSelL Module Select
9 ResetL Module Reset
10 Vcc Rx +3.3 V Power supply receiver
11 SCL 2-wire serial interface clock
12 SDA 2-wire serial interface data
13 GND Ground 1
14 Rx3p Receiver Non-Inverted Data Output
15 Rx3n Receiver Inverted Data Output
16 GND Ground 1
17 Rx1p Receiver Non-Inverted Data Output
18 Rx1n Receiver Inverted Data Output
19 GND Ground 1
20 GND Ground 1
21 Rx2n Receiver Inverted Data Output
22 Rx2p Receiver Non-Inverted Data Output
23 GND Ground 1
24 Rx4n Receiver Inverted Data Output
25 Rx4p Receiver Non-Inverted Data Output
26 GND Ground 1
27 ModPrsL Module Present
28 IntL Interrupt 2
29 Vcc Tx +3.3 V Power supply transmitter
30 Vcc1 +3.3 V Power Supply
31 LPMode Low Power Mode
32 GND Ground 1
33 Tx3p Transmitter Non-Inverted Data Input
34 Tx3n Transmitter Inverted Data Input
35 GND Ground 1
36 Tx1p Transmitter Non-Inverted Data Input
37 Tx1n Transmitter Inverted Data Input
38 GND Ground 1



DIGITAL DIAGNOSTIC FUNCTION



100Gbps QSFP28 Fiber Optic Transceiver CWDM4 Single Mode 2KM For Data Center 1



SPECIFICATION



100Gbps QSFP28 Fiber Optic Transceiver CWDM4 Single Mode 2KM For Data Center 2



Ordering information



Part Number Product Description
OQSPLHG02D 100Gbps QSFP28 CWDM4, LC, 2km, 0°C~+70°C, with DDM



100Gbps QSFP28 Fiber Optic Transceiver CWDM4 Single Mode 2KM For Data Center 3
