4 Port POE Voltage Booster DC12-48V Input For Solar Power With 1 Uplink Network Port Switch

4 port POE voltage booster DC12-48V input

for solar power with 1 uplink network port Switch

Key Features of Industrial Network Switch

• Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

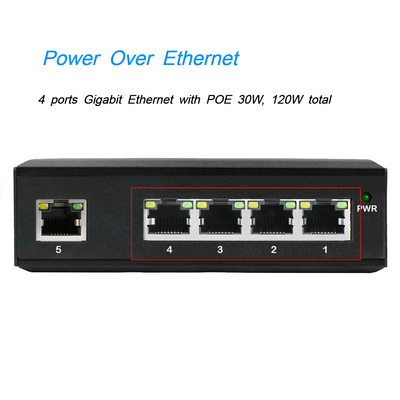

• IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
• 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
• 1 x 10/100/1000Mbps uplink network port
• Built-in voltage booster for DC12-48V input which can be used for solar power/Trunk/VoIP system/CCTV security system
• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Support Auto MDI/MDIX
• Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
• Max power to15.4W under af standard, 30W under at standard to each PoE port
• Detect the PoE models of electrical equipments.
• Operating environment temperature:-40 ° ~75 ° c

Specification of Industrial 5 port Ethernet Switch

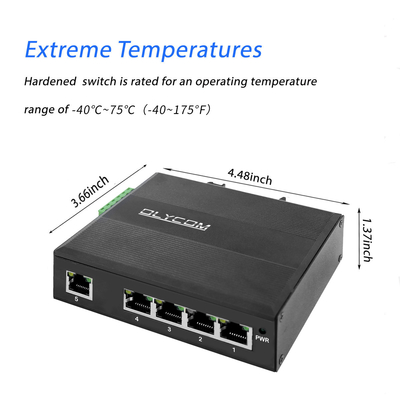

Dimension of 5-port Gigabit switch

Packing box of Din rail unmanaged switch

1. Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

2. The standard packing usually contains a main device, a warranty card and a user manual.
3. Packing box dimension for 1pc: 23*16.5*5.8cm
4. 40pcs in a packing box of 67*33*47cm dimension.

Production Steps

• Welding: Weld the necessary components
• Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
• Assembling: Builds up components of a product, like panels, screws, PCB boards.
• Testing: To make sure the product is basically working fine after assembling
• Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
• Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
• QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
• When all above is done, the product will go to market.
