Gigabit 5 Port Industrial POE Ethernet Switch Hub Support POE At/Af
Introduction of POE Ethernet Switch
We are delighted to introduce you to the OLYCOM 5-port 10/100/1000 Mbps industrial fiber optic switch by Shenzhen Olink Tech Co., Ltd. Ideal for use in challenging industrial environments, this impressive switch can withstand even the harshest conditions with an operating temperature range of -40℃ to +85℃. With its wide voltage dual power input and easy installation on DIN rails, the OLYCOM switch offers unparalleled reliability. It is certified to meet hazardous environment requirements, providing IP40 degree of protection and EMC industry-standard requirements.
The OLYCOM switch is built to last, with a sturdy and reliable industrial grade design that guarantees continuous and stable operation of your automation system. Choose the OLYCOM switch for its unparalleled quality and performance that you can trust.
Thank you for considering our product and we look forward to hearing from you soon.
Q&A of POE Ethernet Switch

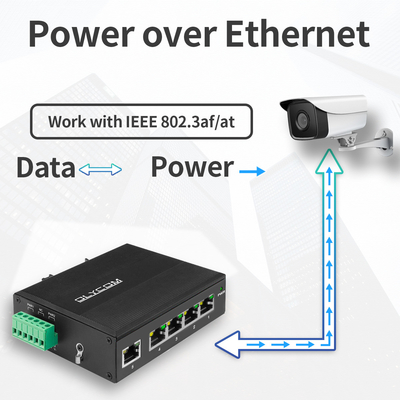

1. What is the PoE power (maximum 240W, 60W per port, conventional 30W)
2. What is in the packing box (equipment+foam cotton+manual+warranty card)
3. Does the price include power supply and modules? (Excluding)
4. Can I use my own PVC film? (Yes)
Application of POE Ethernet Switch
Specification of POE Ethernet Switch
| Product Name | 10/100/1000Mbps Industrial POE Network Switch (5TP) |
| Model No. | IM-FP054GE |
| Port |

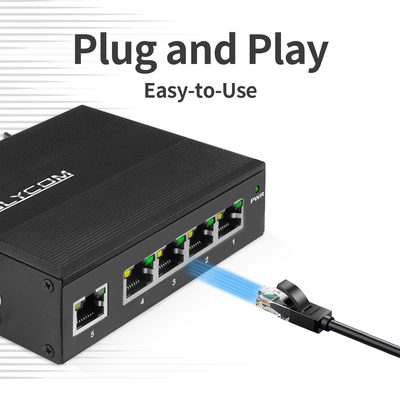

1 x 10/100/1000Mpbs uplink network port 4 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions) |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information |

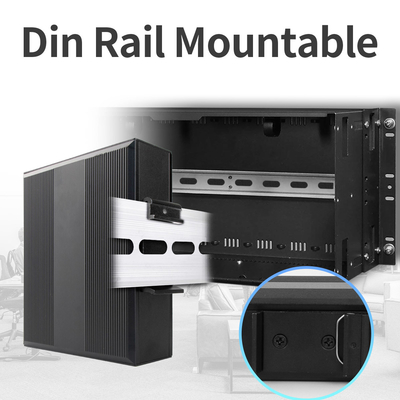

Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Key Features of POE Ethernet Switch
We at Shenzhen Olycom Technology Co., Ltd are proud to offer our powerful networking solution featuring 4x10/100/1000Base T (X) PoE ports and 1x10/100/1000Base T (X) UpLink port. Our product is designed with 4 kv Ethernet surge protection to withstand harsh outdoor environments and provide reliable connectivity for your business needs. Our switch also supports Auto MDI/MDIX and operates with full duplex IEEE 802.3x standard and half-duplex Backpressure standard for efficient flow control. Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX, our switch utilizes a store-and-forward switching mechanism. With an operating temperature range of -40°C to 85°C, our switch is built for durability and reliability.
