Home /Products/Industrial Managed POE Switch/8 Port UPoE Rack Managed Switch 900W Budget 220V Input 2.5G Fiber Gigabit Ethernet

8 Port UPoE Rack Managed Switch 900W Budget 220V Input 2.5G Fiber Gigabit Ethernet

1pc
MOQ
negotiable
Price
8 Port UPoE Rack Managed Switch 900W Budget 220V Input 2.5G Fiber Gigabit Ethernet
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial Rack Managed Fiber Switch
Fiber Rate: 100M/1000M/2500M
Ethernet Rate: 100/1000Mbps
PoE Budget: 720W
PoE Protocol: PoE Af/at/bt
AC Input: AC100V~240V
Highlight:

8 Port Rack Managed Switch

,

220V Rack Managed Switch

,

2.5G Rack Managed Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP21008GW-U
Payment & Shipping Terms
Packaging Details: 2 pieces in a box, 10Kg G.W.
Delivery Time: 4~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 1500pcs/month
Product Description
PoE++ 802.3bt (90W) 8 Port Rack Managed Network Switch

This is Gigabit Managed 10-port,L2 Gigabit Ethernet 90W PoE Ring Switch.
  • IEEE802.3af/at/bt compliant up to 90W PoE power on 8 copper ports for total power of 720W to provide power for the most demanding PoE applications for PTz domes, LED lighting and wireless products
  • Compliant to G.8032 ERPS V1/V2 Ring protocol
  • uniquely designed for outdoor enclosure applications with a ribbed temperature disbursement chassis ,6kv surge protection and user programmable port thermal protection of over temperature shut down to prevent damage from excessive heat

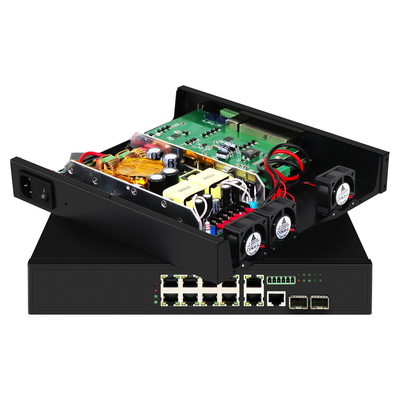

8 Port UPoE Rack Managed Switch 900W Budget 220V Input 2.5G Fiber Gigabit Ethernet 0

Features

  1. 8x 10/100/1000Base-T RJ-45 and 2x 100/1000/2500Base-T SFP Fiber
  2. 2 Copper/MSA Fiber Combo ports
  3. Cable diagnostic, Measuring cable normal or broken point distance
  4. Supports Green Ethernet IEEE802.3az EEE (Energy Efficient Ethernet) management to optimize the power Consumption
  5. STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) for redundant cabling
  6. DHCP Server/Client/Relay/Snooping/Snooping option 82/Relay option 82
  7. QoS, Traffic classification QoS, CoS, bandwidth control for Ingress and Egress, Storm Control
  8. IEEE802.1q VLAN, MAC based VLAN, IP subnet based VLAN, Protocol based VLAN, VLAN translation, GVRP, MVR
  9. Dynamic IEEE 802.3ad LACP Link Aggregation, Static Link Aggregation
  10. IGMP snooping V1/V2/V3, IGMP Filtering/ Throttling, IGMP query, IGMP proxy reporting, MLD snooping V1/V2
  11. Security : Port based and MAC based IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
  12. Software upgrade via TFTP and HTTP, redundant firmware to avoid in case of upgrade failure
  13. Supports IEEE1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End
  14. Transparent Clock, Master, Slave mode by each port
  15. RMON, MIB II, Port mirroring, Event syslog, DNS, NTP, IEEE802.1ab LLDP
  16. Supports IPv6 Telnet server /ICMP v6
  17. CLI, Web based management, SNMP v1/v2c/v3, Telnet server for management

Specification

Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch(2F+10TP)
Port

2 x 1000Mpbs SFP port, 1G/2.5G both supportive

SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km;

MM: 1310nm, 2Km; 850nm, 500 meters

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address 8K
Switching features

Transmission mode: Storage and forward

System bandwidth: 58Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs Power, network, fiber, POE, alarm
Power supply

POE power supply input voltage: 48V (max 57V)

Single PoE power supply output power: 15.4W/30W/60W/90W(port 1~8)


Application



  1. Supply power to power-hungry devices
  2. Optical Telecommunication
  3. Remote controlling and monitoring
  4. Outdoor CCTV security surveillance
  5. Broadband private network

Dimension

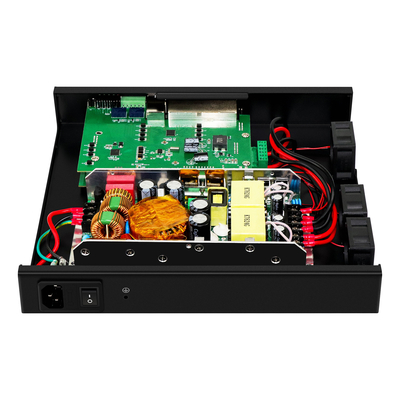

8 Port UPoE Rack Managed Switch 900W Budget 220V Input 2.5G Fiber Gigabit Ethernet 1

8 Port UPoE Rack Managed Switch 900W Budget 220V Input 2.5G Fiber Gigabit Ethernet 2
8 Port UPoE Rack Managed Switch 900W Budget 220V Input 2.5G Fiber Gigabit Ethernet 3
