8 Port Ultra PoE VLAN Managed Switch Gigabit Ethernet 802.3bt Compliant 720W Budget

1pc
MOQ
negotiable
Price
8 Port Ultra PoE VLAN Managed Switch Gigabit Ethernet 802.3bt Compliant 720W Budget
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: 8 Port Industrial Poe Managed Switch
PoE Protocol: PoE Af/at/bt
Speed: 10/100/1000Mbps
Power Input: DC48V~DC57V
Mounting Method: Din Rail
Cloud Management: Not Supported
Highlight:

8 Port Gigabit Ethernet Managed Switch

,

Ultra PoE VLAN Managed Switch

,

802.3bt Ethernet Managed Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP20808GW
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 900g G.W.
Delivery Time: 4~7 days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

Olycom L2+ Ring Managed Gigabit Industrial POE++ Switch

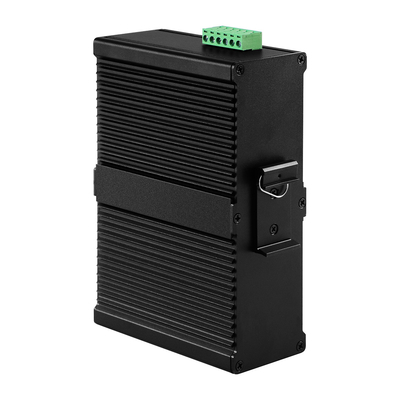

8 Port Ultra PoE VLAN Managed Switch Gigabit Ethernet 802.3bt Compliant 720W Budget 0



  • 8 + 2 ports with 10/100/1000/2500Mbps data rate
  • Jumbo frame programming at all bandwidth settings
  • IEEE 802.3af/at/bt (15.4W/30W/60W/90W) power on to 1 ~ 8 RJ45 ports, 720W budget
  • G.8032 V1/V2 Rapid Ring protocol compliant
  • Support POE managed, enable/disable the POE ports, set the POE power-on delay and POE output power
  • Operating temperature range -40ºC to +75ºC
  • Dual fiber/copper Uplink ports
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Tested for critical transportation and traffic applications


Specification


Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch
Model No. IM-FP20808GW
Port

2 x 1000Mpbs SFP port, 1G/2.5G both supportive
SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km;
MM: 1310nm, 2Km; 850nm, 500 meters
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: Storage and forward
System bandwidth: 20Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 15.4W (port 1~8)
(802.3at/bt standards required special instructions)


Management Features


  1. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  2. Support Qos, transport classification Qos, Cos, bandwidth control
  3. (input/output direction), storm suppression ,differentiated services
  4. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  5. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  6. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  7. Support IGMP agent report, MLD snooping
  8. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  9. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  10. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  11. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  12. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  13. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

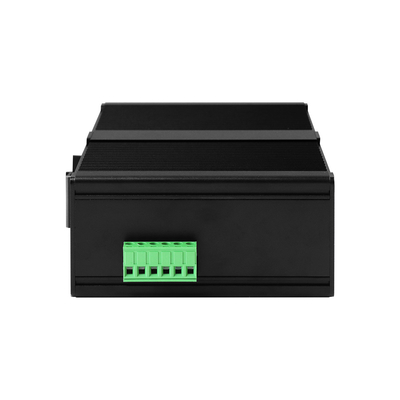

8 Port Ultra PoE VLAN Managed Switch Gigabit Ethernet 802.3bt Compliant 720W Budget 1

8 Port Ultra PoE VLAN Managed Switch Gigabit Ethernet 802.3bt Compliant 720W Budget 2

8 Port Ultra PoE VLAN Managed Switch Gigabit Ethernet 802.3bt Compliant 720W Budget 3
