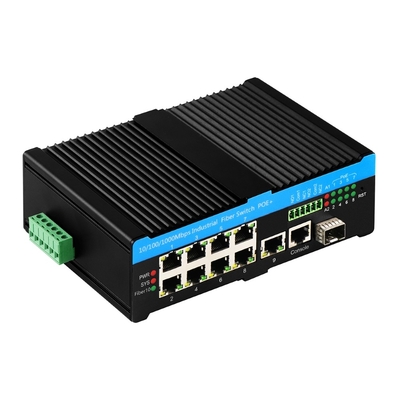

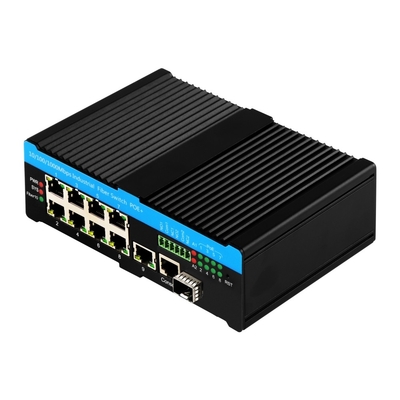

8 Port Gigabit BT PoE Managed Switch With 1 SFP / Copper Uplink 480W Budget Din Type

8 Port Gigabit BT PoE Managed Switch With 1 SFP / Copper Uplink 480W Budget Din Type
Features Gallery Product Description Request A Quote
Product Name: 8 Port Din Rail POE Managed Switch
Speed: 1G/2.5G For Optical, Gigabit For Copper
PoE Budget: 480W
PoE Standard: PoE Af/at/bt, Max 90W Output
Mounting Type: Din Rail, Desktop Use
Chip: Vitesse
High Light:

8 Port Gigabit PoE Managed Switch


Din Type PoE Managed Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP1188GW
Payment & Shipping Terms
Packaging Details: 1 piece in a box, 1KG G.W.
Delivery Time: 4~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 1500pcs/month
Product Description

Industrial Fanless Gigabit  8-Port Layer 2 Managed 802.3bt Switch

8 Port Gigabit BT PoE Managed Switch With 1 SFP/Copper Uplink 480W Budget Din Type


Basic Information of 8 port POE switch


  • Port: 2*100/1000/2500M SFP fiber ports+1*Console port+2 Combo ports+8*100/1000M Copper
  • POE Standard: IEEE 802.3af/at/bt (15.4W/30W/60W/90W) on 1 ~ 8 RJ45 ports, 720W budget
  • Management Feature: Vitesse-based, QoS/STP/ERPS/MPLS/VLAN...


8 Port Gigabit BT PoE Managed Switch With 1 SFP / Copper Uplink 480W Budget Din Type 0


  • POE distance: 100-meter, support external POE accessory(POE extender/splitter)
  • Operating temperature -40℃ to + 85℃(fully tested)
  • IP40 protection level
  • DIN rail design, fan-less heat dissipation
  • CE/FCC compliant
  • 4KV Ethernet surge protection, 1500V Port-to-port isolation voltage
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism


Key Features of POE managed Switch


  1. Real-time display of voltage, current, power and PD level and full indicators
  2. Enable/disable the POE ports, set the POE power-on delay and POE output power
  3. Support relay alarm output and alarm status light display(2 way-from dry contact)

8 Port Gigabit BT PoE Managed Switch With 1 SFP / Copper Uplink 480W Budget Din Type 1

8 Port Gigabit BT PoE Managed Switch With 1 SFP / Copper Uplink 480W Budget Din Type 2


Specification of industrial POE switch


Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch(1F+9TP)
Model No. IM-FP1188GW

 1x 1000Mpbs SFP port, 1G/2.5G both supportive

SM: 1310nm/1550nm,20Km; 1490nm/1550nm, 40~120Km;

MM: 1310nm, 2Km; 850nm, 500 meters

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Jumbo Frame 9.6KB
MAC Address 8K
Switching features

Transmission mode: Storage and forward

System bandwidth: 58Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km

LEDs Power, network, fiber, POE, alarm
Power supply

POE power supply input voltage: 48V (max 57V)

Single PoE power supply output power: 15.4W/30W/60W/90W(port 1~8)


Working Temp: -40°~ 85°C

Storage Temp: -40°~ 85°C

Working humidity: 10%~90%, non-condensing

Storage humidity: 10%~95%, non-condensing

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4

Safety CE Mark, commercial; CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Dimension: 165 x 112 x 45.5mm

Mounting method: Din-rail mounting

Warranty Replacement within 1 year; 3 years repairing


Application of BT standard POE switch


  • Supply power to power-hungry devices
  • Optical Telecommunication
  • Remote controlling and monitoring
  • Outdoor CCTV security surveillance
  • Broadband private network


Management Features


  1. Support cable diagnosis and can locate the fault point
  2. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  4. Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
  5. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  6. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  7. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  8. Support IGMP agent report, MLD snooping
  9. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+, HTTP/HTTPS, SSL/SSH v2
  10. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  11. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  12. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  13. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  14. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.




  • Alarm ports

It is I/O ports, there is no serial communication.

Clink all in the management interface

Connect those 2 alarm ports to an external bell or siren

The bell/siren rings to warm the users if any port is down(remote real-time monitoring)


  • Management

Support Console/ SNMP/CLI(SSH/Lan port/Telnet...) and IP address management

Programmable POE&Power Supply

It continuously supplies 15.4W/30W/60W/90W standard power to PD devices from 8 POE ports(excluding combo ports)

We do not suggest connecting too many power-hungry devices to a single switch, this will affect the stability

Full-load, 720W POE output, 15A/48V power supply is required

Programmable POE output budget such as 480W/240W to match your in-hand power supply

It is recommended to set 480W for better stability and service life.


  • Simple Customization


It is basically about

Putting customer logo in the management interface

Putting customer model name in the management interface

Putting customer brand color in the management interface

8 Port Gigabit BT PoE Managed Switch With 1 SFP / Copper Uplink 480W Budget Din Type 3
