Industrial CCTV PoE Switch 4 Port
Introduction of Rugged Ethernet Switch
Specification of Fiber Optic Switch

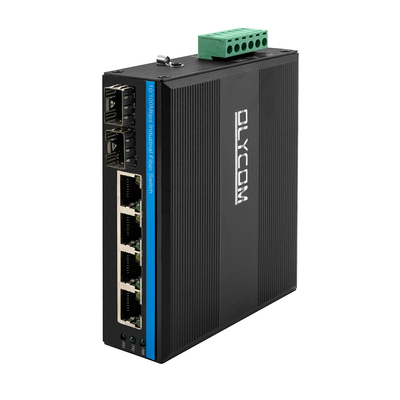

Product Name | 10/100Mbps Industrial PoE Fiber Switch(2F+4TP) |
Model No. | IM-FP244FE |
Port |
2x100M SFP Fiber SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) 1x6-PIN Power Terminal Block |
Protocol |
IEEE 802.3(10Base-T) IEEE 802.3u(100Base-TX) IEEE 802.3af 15.4W(PoE) IEEE 802.3at 30W(PoE+) |
Switching Features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 1.2Gbps (non-traffic jam) MAC: 4K Packet buffer size: 1.75Mb |
Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
LEDs |
Power, Fiber, Network, PoE PWR: Power
Fiber: FX1, FX2 On: transmission is normal Off: transmission is NOT normal(faulty optical module or disconnected)
Copper orange: PoE indicator On: PoE is working Off: PoE is not working or this is Non-PoE device
Copper green: Speed indicator On: transmission speed is 1000Mbps Blinking: in transmission Off: Disconnected or working speed is 10/100Mbps |
Power Consumption | Full loading without PoE≤5W |

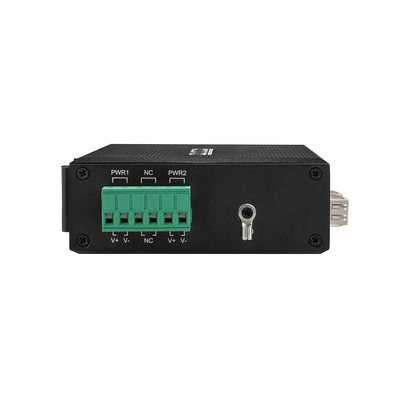

Power Supply |
PoE power supply input voltage: 48V (max 52V) Single PoE power supply output power: 30W (port 1~4) PoE output voltage: 48V Reverse connection: support |
PoE Wiring | 1/2 (V+), 3/6 (V-) |
Environment |
Working temperature: -40°C~75°C Storage temperature: -40°C~85°C Working humidity: 10%~90%, non-condensing Storage humidity: 10%~95%, non-condensing |
Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
Mechanical information |

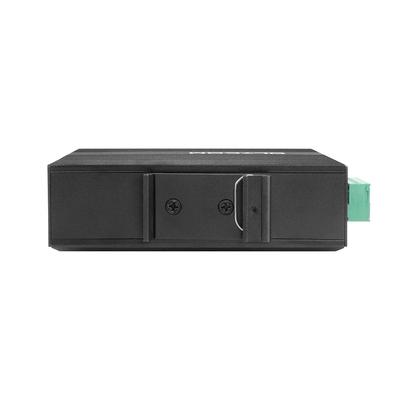

Shell: Corrugated metal shell, IP40 grade level Dimension: 114*93*35mm Mounting method: Din-rail/Wall mounting Weight: 0.35Kg/0.45Kg(Net/Gross) |
Warranty | 3 years, lifetime technical support |
Q&A
Application of 120W PoE Switch
Packing List
Remark
Accessories(DIN rail bracket, optical module, power supply, patchcord, network cable etc.)are NOT included in the packing box, please prepare it by yourself or purchase a whole set from us
Shipping box information
Product size: 11.4*9.3*3.5cm
Inner box size: 23*16.5*5.8cm
Product weight: 0.35Kg
Packing weight: 0.45Kg
Master box size: 67*33*47cm
Packing quantity: 40Pcs
Packing weight: 20Kg
Accessories
Industrial Optical Module | |
OSPL1E06D-85 | 100BASE-FX(850nm) |
OSPL1E06D | 100BASE-FX |
OSPL1E20D | 100BASE-LX |
OSPL1E40D | 100BASE-EX |
OSBL1E20D-35 | 100BASE-BX-U(TX 1310 RX1550) |
OSBL1E20D-53 | 100BASE-BX-D(TX 1550 RX1310) |
Industrial DIN Power Supply | |
IM-DAC220/DC12V1.67A | AC220V to DC12V1.67A, -30℃~70℃ |
IM-DAC220/DC24V1A |
AC220V to DC24V1A, -30℃~70℃ |
