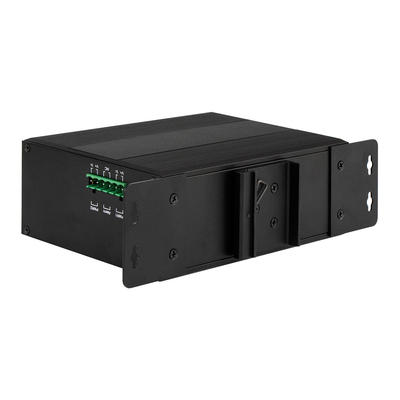

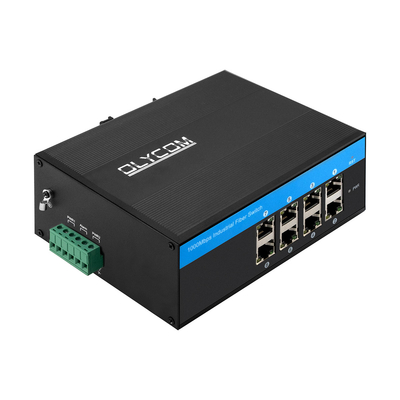

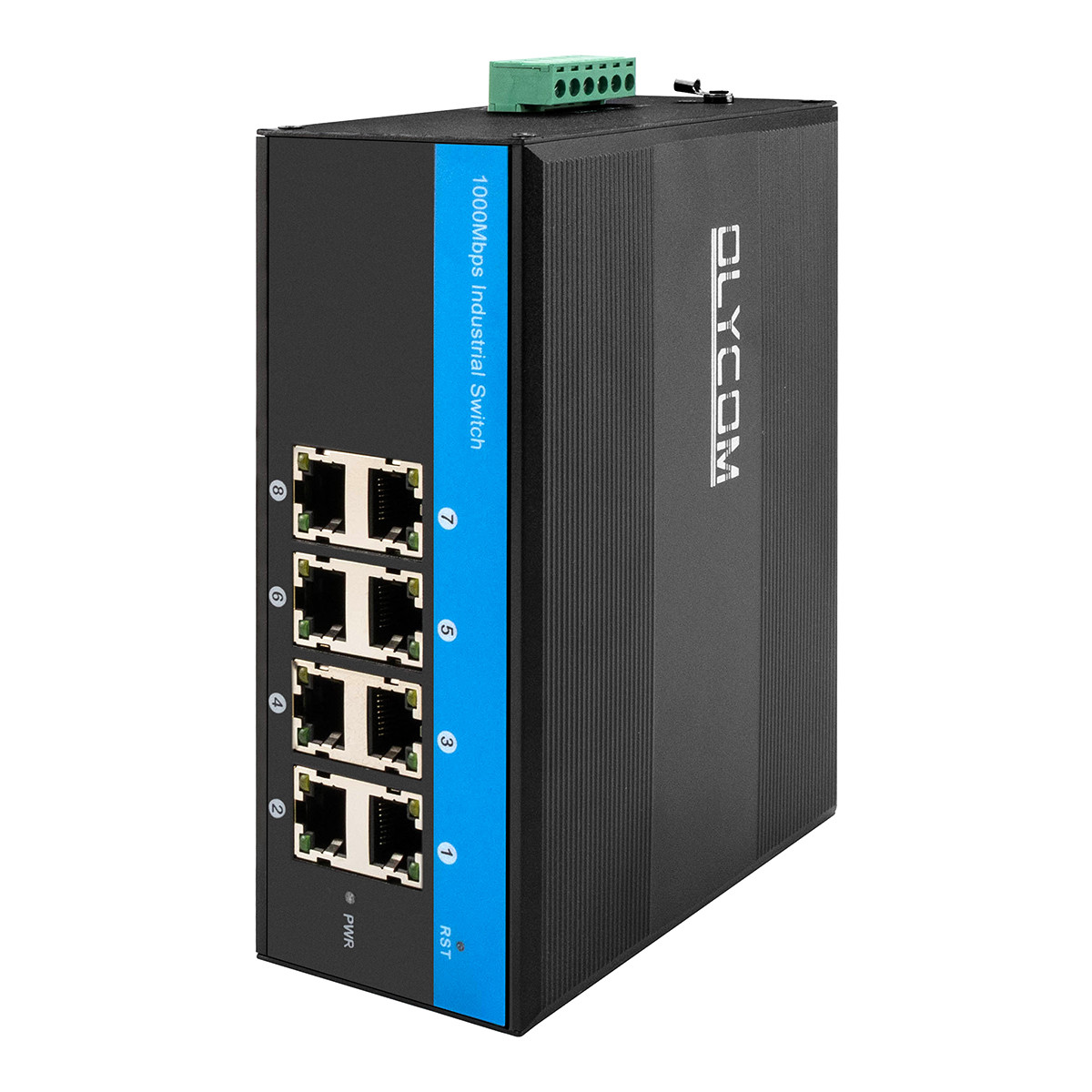

E-Mark Certified FE / GE Unmanaged Ethernet Switch 8 Port Vehicle Solution

E-Mark Certified FE / GE Unmanaged Ethernet Switch 8 Port Vehicle Solution
Features Gallery Product Description Request A Quote
Product Name: E-mark 8 Port Industrial Ethernet Switch
Working Speed: 10/100M Or 10/100/1000M
Application: Automotive Solution
Size: 15.8*11.5*6cm
Weight: 750g
Voltage: DC9V~DC52V
High Light:

Unmanaged Ethernet Switch FCC


Auto MDI Unmanaged Ethernet Switch


IP40 8 Port Ethernet Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001 E-mark
Model Number: IM-WS080GE V3
Payment & Shipping Terms
Packaging Details: 1pc in a box, 900g gross weight
Delivery Time: 4~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

8 port 10/100/1000M automotive e-mark Certified Ethernet switch


Key features of E-Mark Gigabit Switch


  1. IM-WS080GE series is the 10/100/1000Mbps industrial network switch
  2. operating temperature -40 ℃ to + 85 ℃
  3. support dual power input, 12V/24V is optional and recommended
  4. meet IP40 protection degree
  5. DIN rail installation, if you need to customize the mounting bracket, please let us know.
  6. 8 x 10/100/1000Mbps auto-sensing RJ45 ports, support Auto MDI/MDIX
  7. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  8. 4 KV Ethernet surge protection for  harsh outdoor Vehicle network application


Spefication of E-Mark Industrial switch


Product Name 10/100/1000Mbps Industrial Ethernet Switch ( 8TP)
Model No. IM-WS080GE
Port 8 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features

Transmission mode:storage and forward

System bandwidth:16Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

LEDs Power, network
Power supply

Input voltage:DC 9-52V

No-load power:5W

Reverse connection:support


Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing


Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4


CE Mark, commercial, E-mark

CE/LVD EN60950


Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 114.8 x 60mm

Mounting method:Din-rail mounting

Warranty Replacement within 1 year; 3 years repairing


  • The customer is responsible for delivering the defective product to the designated RMA Address for repair or replacement. Olycom will repair or replace a product that was found to be defective by Olycom during the warranty period at its discretion. The sole responsibility of Olycom under this warranty shall be limited to repair of this product, or replacement thereof, at the sole discretion of Olycom.
  • Any RMA items shipped to Olycom which are out of warranty will not be returned to the customer under any circumstances.


Dimension of Vehicle e-mark switch


E-Mark Certified FE / GE Unmanaged Ethernet Switch 8 Port Vehicle Solution 0


Application of automotive e-mark ethernet switch


E-Mark Certified FE / GE Unmanaged Ethernet Switch 8 Port Vehicle Solution 1


FAQ of Industrial E-Mark Ethernet Switch


1 Q: What is your lead time?

A:It usually takes 2~4 working days to produce and then will send goods.


2 Q: How will you send my goods?

A: We will send the goods by DHL, TNT, UPS or FEDEX, please check the delivery details by the tracking number.


3 Q: Please tell me something about your MOQ

A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms, sample order to check our services and quality.
