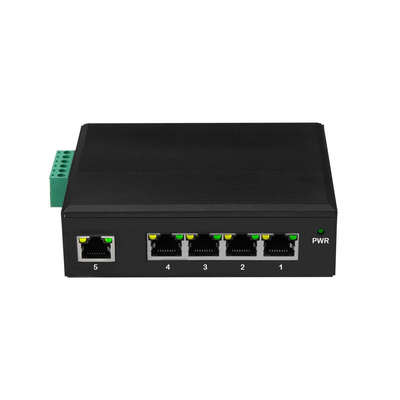

E-Mark Certified 5 Port Ethernet Switch Industrial Wide Temp Unmanaged 12V 24V

E-Mark Certified 5 Port Ethernet Switch Industrial Wide Temp Unmanaged 12V 24V
Features Gallery Product Description Request A Quote
Product Name: E-mark Ethernet Switch
Speed: Full Gigabit
Feature: Unmanaged, Non-POE
Applciation: Traffic Control And Transportation
Voltage Input: 12V Or 24V
Weight: 0.35kg
High Light:

Auto MDI 5 Port Ethernet Switch


MDIX 5 Port Ethernet Switch


UTP RJ45 Industrial Network Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001 E-mark
Model Number: IM-WS050GE V3
Payment & Shipping Terms
Packaging Details: 1pc in a box, 0.45kg gross weight
Delivery Time: 4~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

Full Gigabit E-mark Industrial Ethernet 5-port Switch


Key Features of E-mark Ethernet Switch


  • 5 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism
  • Operating environment temperature: -40 ° ~75 ° c


Specification of Industrial E Mark Ethernet Switch


Product Name 10/100/1000Mbps Industrial Ethernet Switch(5TP)
Model No. IM-WS050GE
Port 5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features Transmission mode:storage and forward System bandwidth:10Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

LEDs Power, network
Power supply

Input voltage:DC 9-52V No-load power:5W

Reverse connection:support


Working temperature:-40°~ 85°C Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4


CE Mark,commercial, E-mark

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell Safety class:IP40 Dimension:114 x 93 x 35mm

Mounting method:Din-rail mounting

Warranty Replacement within 1 year; 3 years repairing


Application of E-Mark Certified Ethernet Switch


E-Mark Certified 5 Port Ethernet Switch Industrial Wide Temp Unmanaged 12V 24V 0


Dimension of 5-port Gigabit switch


E-Mark Certified 5 Port Ethernet Switch Industrial Wide Temp Unmanaged 12V 24V 1


Packing box of Din rail unmanaged switch


E-Mark Certified 5 Port Ethernet Switch Industrial Wide Temp Unmanaged 12V 24V 2

  1. Put the product in an ESD Bag, then placed in PE foams with outer carton packaging.

  2. The standard packing usually contains a main device, a warranty card and a user manual.
  3. Packing box dimension for 1pc: 23*16.5*5.8cm
  4. 40pcs in a packing box of 67*33*47cm dimension.


Production steps


  1. Welding: Weld the necessary components
  2. Cleaning: To avoid any possible dysfunction due to dust or scraps on the PCB boards.
  3. Assembling: Builds up components of a product, like panels, screws, PCB boards.
  4. Testing: To make sure the product is basically working fine after assembling
  5. Aging: To check if the product can work smoothly for long time without any minors such as LED indicators, voltage. This will usually last for 24 to 48 hours.
  6. Testing: To test if the product can process data or video signals correctly. Any data loss? Transmission rate correct? Any data packet failure? Such questions would be verified in this procedure.
  7. QC testing: This is the third and also last check of product quality. If it goes good, our packing staff will pack it up according to customer requirements and attach to the packing box a product label.
  8. When all above is done, the product will go to market.
