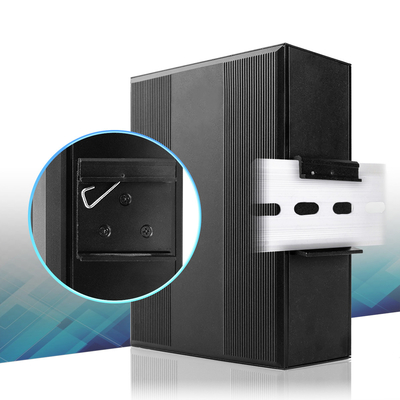

2.5G Lite Layer 3 Ring Managed Ethernet Switch 12 Port ERPS RSTP Din Rail Mounted

IM-FS480GW series is the 10/100/1000 Mbps industrial fiber switch

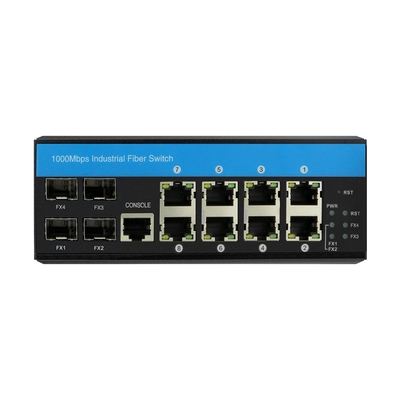

• 4 x 100M/1G/2.5G SFP fiber port
• 8 x 10/100/1000Mbps Auto-sensing RJ45 ports, support Auto MDI/MDIX
• 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
• Flow control mode: full duplex with IEEE 802.3x standard,
• half-duplex with Back pressure standard
• IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
• A store-and-forward switching mechanism
• Operating temperature -40℃ to + 75℃

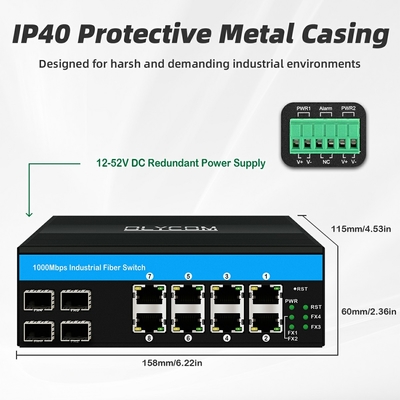

• Support wide voltage dual power input
• Support web management,meet IP40 protection degree

Management Software

1. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
2. Support IGMP agent report, MLD snooping
3. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
4. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
5. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
6. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
7. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
8. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.

Warranty

1 year for commercial products and 3 years for industrial products. Technical support will be offered free.

Packing Box of managed Ethernet switch

FAQ

Are you a manufacturer?

Yes, we have our production line and R&D team.

Please visit us via below VR link to see our office and production area.

https://www.ecer.com/corp/uuu5b8d-industrialnetworkswitch/vr.html

What is the leadtime if I order?

After receiving the payment, we start production.

If you are ordering some popular models, we usually got stock. After some testings, we will ship the materials.

If we do not have stock, production time is usually 3~5 working days for less than 50pcs/pairs.

Does your switch support 155Mb/s tranceivers?

A: Yes, the optical speed is 100M/1000M/2500M. Please just configure 100M speed in the management interface, megabit modules are working.

What SFP modules do I use?

A: In a standard cabling, singlemode 20KM and Multimode 2KM modules are usually applied.

Can you show me how to use and test the devices?

A: Yes, we are an OEM manufacturer and do multiple testings each day.

We have different videos to explain the connection and working mechanism.

Does your switch support 10G speed?

A: For some models, the fiber speed is 1G/2.5G/10G based.

We need to confirm the specification you need and let you know.
