14 Port Full Gigabit Industrial Layer 2 Managed SFP PoE Switch 1G 2.5G Optical Uplink

14 Port Full Gigabit Industrial Layer 2 Managed SFP PoE Switch 1G 2.5G Optical Uplink
Features Gallery Product Description Request A Quote
Product Name: Industrial Managed POE Switch
Speed: 1.25Gbps
POE Budget: 240W
Voltage Input: DC48V
Warranty: 3 Years
Dimension: 15.8*11.5*6cm
High Light:

CAT4 SFP PoE Switch


240W SFP PoE Switch


Industrial Managed POE Switch RoHS

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP688GW V1
Payment & Shipping Terms

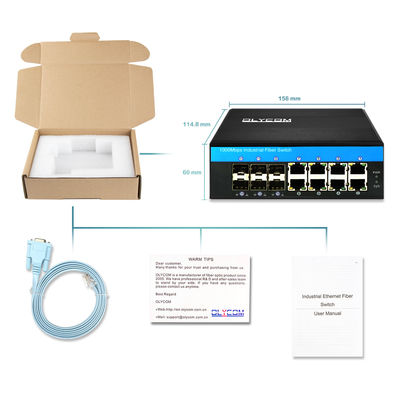

Packaging Details: 1pc in a carton, 0.9kg gross weight
Delivery Time: 4~7 working days
Payment Terms: L/C, PayPal
Supply Ability: 2000pcs/month
Product Description
IEEE802.3af/at Smart Managed POE Industrial Gigabit Switch


Key Features of 8 port POE fiber switch


  • IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports, support Auto MDI/MDIX
  • 6 x 1000Mbps SFP fiber port
  • Din rail or wall mounting
  •  A store-and-forward switching mechanism
  • Operating environment temperature: -40 ° ~85 °C
Specification of Industrial POE switch
Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch (6F+8TP)

6x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features Transmission mode:storage and forward System bandwidth:46Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions)

Environment Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity: 10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40

Dimension:158 x 115x 60mm;

Mounting method:Din-rail mounting

Warranty Replacement within 1 year; 3 years repairing


Management Software


14 Port Full Gigabit Industrial Layer 2 Managed SFP PoE Switch 1G 2.5G Optical Uplink 0
  1. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  2. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  3. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  4. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  5. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  6. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL
  7. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  8. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  9. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  10. Support IGMP agent report, MLD snooping
Application of Managed Network Switch
14 Port Full Gigabit Industrial Layer 2 Managed SFP PoE Switch 1G 2.5G Optical Uplink 1



We are fully connected with our customers, even if just for a single purchase. It starts from the promise of professional products and services, but our work goes far beyond. It is not only fiber optic connection, but also human connection.


The Customer information will be highly confidential, and relevant cooperation information will not be leaked to a third party without the customer’s permission.


OEM and ODM service are optional. OLYCOM can provide product with customer LOGO and will do our best to meet clients requirements.
