16 Port Gigabit Managed PoE Switch 802.3at Standard 8 Optical SFP Slots 240W Budget

1pc
MOQ
Negotiable
Price
16 Port Gigabit Managed PoE Switch 802.3at Standard 8 Optical SFP Slots 240W Budget
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Industrial POE Managed Network Switch
Port: 16
POE Budget: 240W
POE Standard: IEEE 802.3af, IEEE 802.3at
Weight: 0.45kg
Size: 15.8*11.5*6cm
Highlight:

FCC Gigabit Managed PoE Switch

,

Gigabit Managed PoE Switch

,

802.3at Industrial Managed POE Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP888GW V1
Document: Managed Switch User Manual.pdf
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.9kg gross weight
Delivery Time: 3~7 working days
Payment Terms: L/C, PayPal
Supply Ability: 4000pcs/month
Product Description
16-Port Gigabit Smart Managed PoE Switch

Description of 16 port managed switch

  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable. IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 8 x 100/1000/2500Mbps SFP fiber port
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant A store-and-forward switching mechanism
  • Operating environment temperature: -40°C~75°C



Specification of Industrial POE switch

Product Name 10/100/1000Mbps Managed Industrial PoE Fiber Switch (8F+8TP)
Port

8x 100M/1G/2.5G SFP port

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500m

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard

IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP

IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344

 IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af

 IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: storage and forward

System bandwidth: 56Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~8)
Total budget: 240W

PoE output voltage: 48V

Environment Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4
Safety

CE Mark, commercial

CE/LVD EN60950
Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

Mounting method: Din-rail/Wall mounting
Warranty Replacement within 1 year; 3 years repairing



Management Software

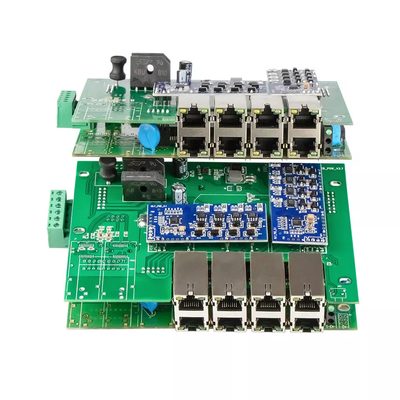

16 Port Gigabit Managed PoE Switch 802.3at Standard 8 Optical SFP Slots 240W Budget 0
  1. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  2. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  3. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  4. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL
  5. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  6. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  7. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  8. Support IGMP agent report, MLD snooping
  9. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  10. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet

Application Diagram

16 Port Gigabit Managed PoE Switch 802.3at Standard 8 Optical SFP Slots 240W Budget 1



Shipping



We deliver goods by Express like DHL, UPS or FedEx.

It takes around 2~4 working days to deliver an order by DHL, UPS or FedEx.

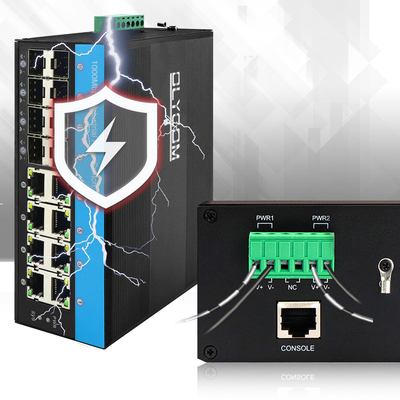

16 Port Gigabit Managed PoE Switch 802.3at Standard 8 Optical SFP Slots 240W Budget 2

16 Port Gigabit Managed PoE Switch 802.3at Standard 8 Optical SFP Slots 240W Budget 3
