240W 10 Port Cloud Smart Managed POE Switch Gigabit PoE / PoE+ 1G / 2.5G SFP Fiber

240W 10 Port Cloud Smart Managed POE Switch Gigabit PoE / PoE+ 1G / 2.5G SFP Fiber
Features Gallery Product Description Request A Quote
Product Name: Smart Managed POE Switch
Port: 10
Speed: 100/1000Mbps
Voltage: DC48V~DC52V
POE Budget: 240W
Management: Layer 2
High Light:

240W Smart Managed POE switch


IP40 Smart Managed POE switch


CE Industrial Managed POE Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC ISO9001
Model Number: IM-FP288GW V1
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.9kg gross weight
Delivery Time: 3~7 working days
Payment Terms: L/C, PayPal
Supply Ability: 2500pcs/month
Product Description
10-Port Industrial PoE+ Layer 2 Gigabit Managed Switch


Key Features of 10 port POE Managed switch
  • IM-FP288GW series is the 10/100/1000 Mbps managed industrial POE fiber switch,

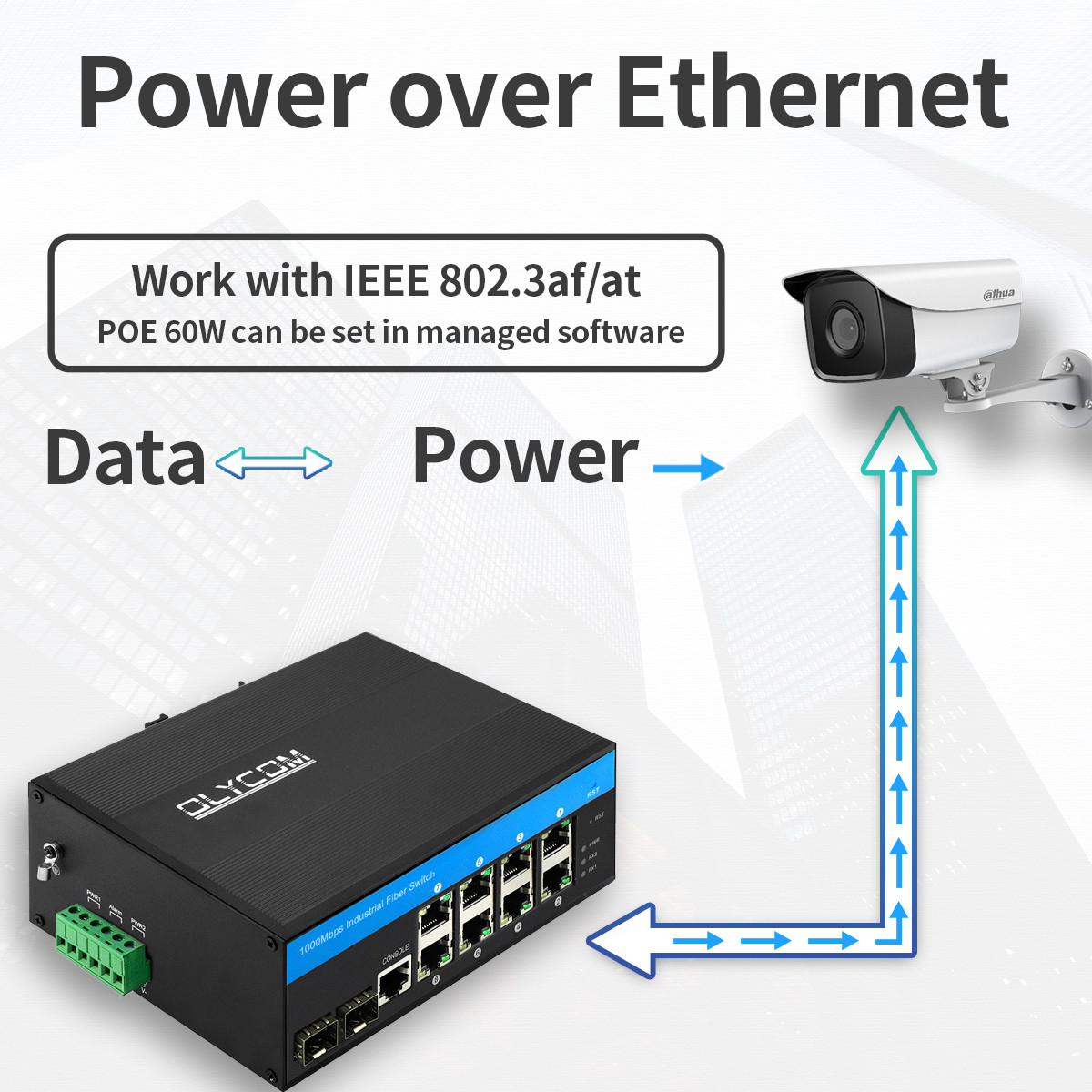

  • comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable
  • simple construction, power range up to 100 meters
  • operating temperature-40 ℃ to + 85 ℃
  • meet IP40 protection degree and EMC industrial grade requirements
  • DIN rail or wall installationIEEE 802.3af/at power on to 1 ~ 8 RJ45 ports

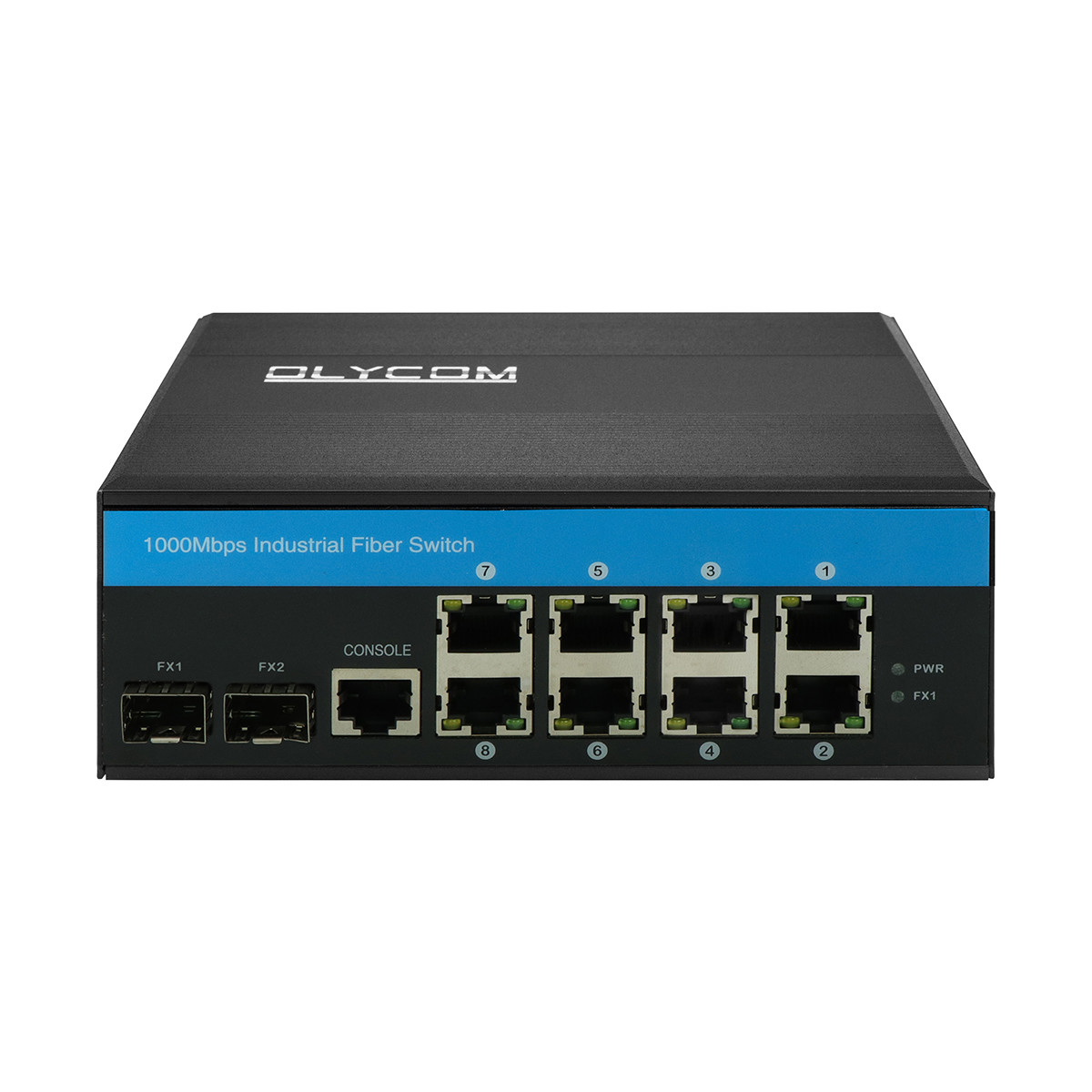

  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 2 x 1000Mbps SFP fiber port
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
Specification of Managed Ethernet switch

2 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode:storage and forward

System bandwidth:26Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber

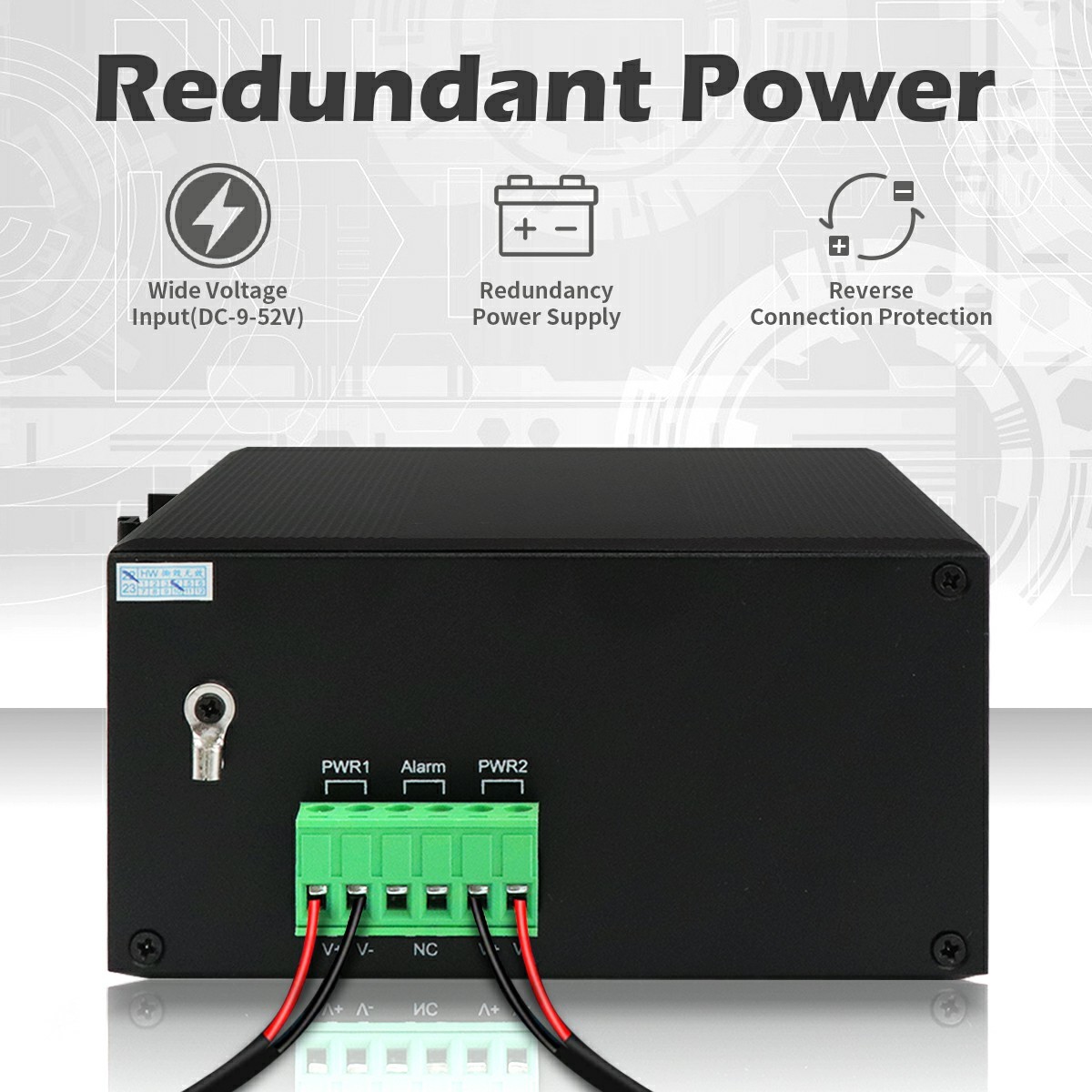

Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8)

(802.3at standards required special instructions)

Environment Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity:10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 115 x 60mm;

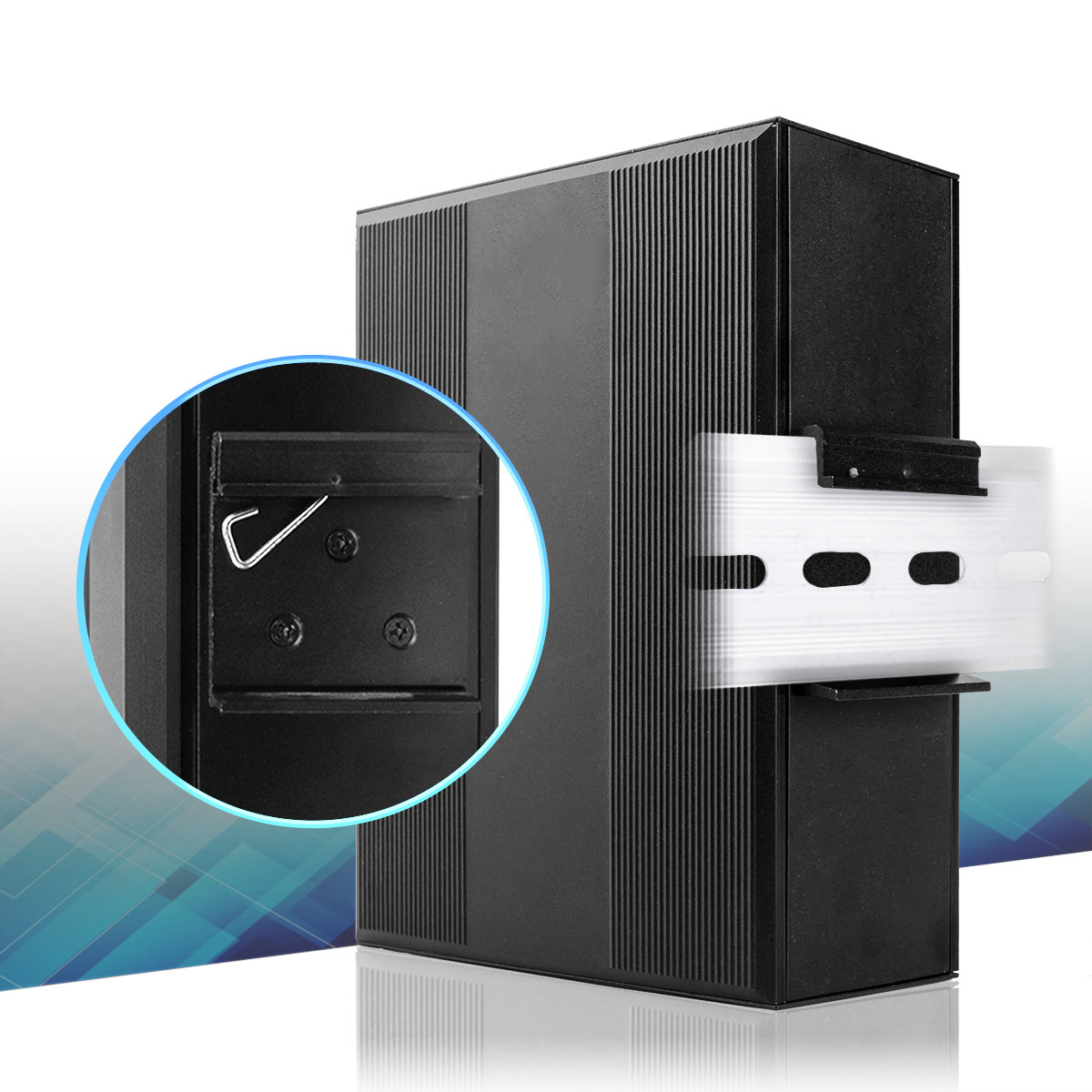

Mounting method:Din-rail mounting

Net weight: 0.75kg

Warranty Replacement within 1year; 3 years repairing


Management Software


240W 10 Port Cloud Smart Managed POE Switch Gigabit PoE / PoE+ 1G / 2.5G SFP Fiber 0
  1. Support cable diagnosis and can locate the fault point
  2. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption

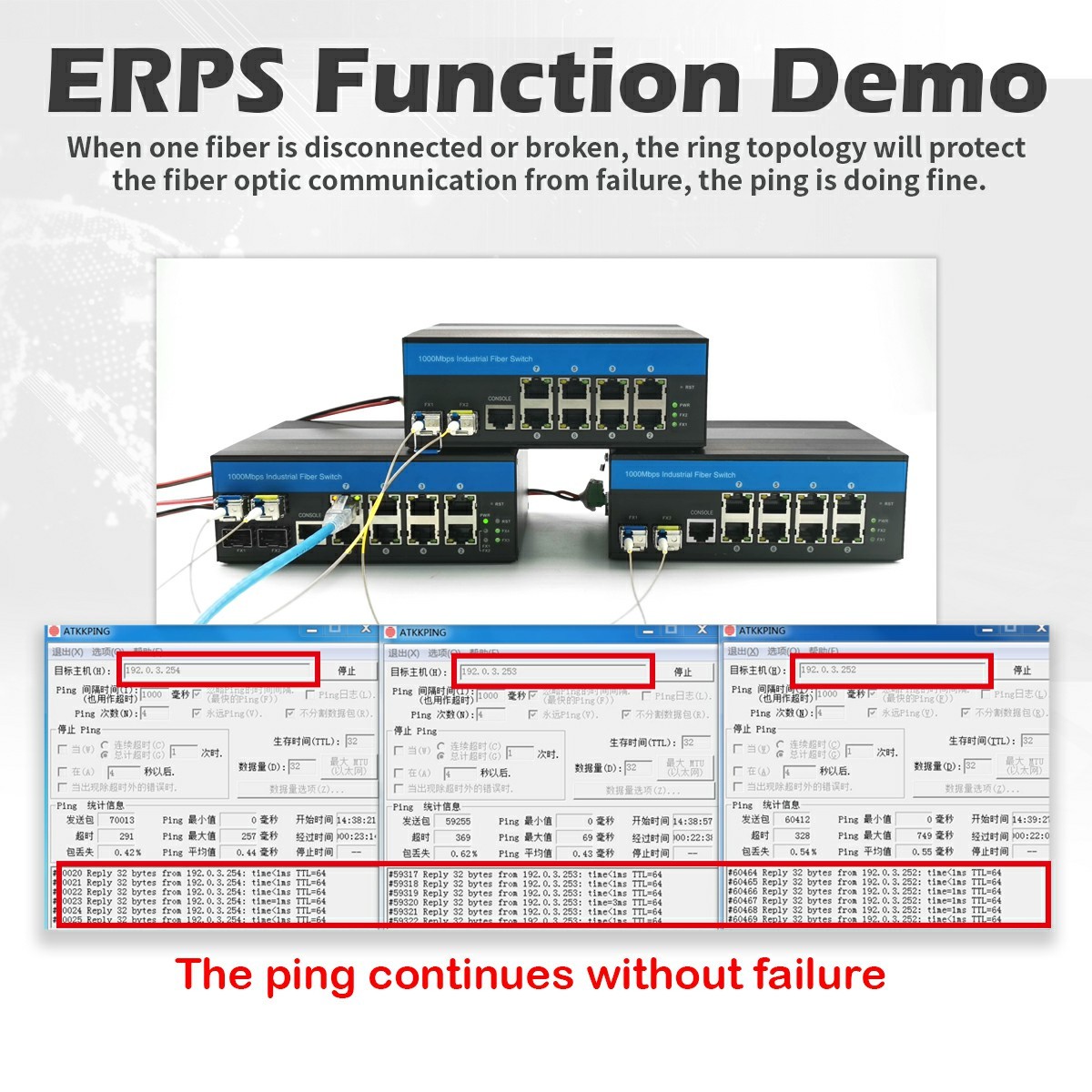

  3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  4. Support Qos, transport classification Qos, Cos, bandwidth control(input/output direction), storm suppression ,differentiated services
  5. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  6. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  7. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.


Application of POE fiber switch
240W 10 Port Cloud Smart Managed POE Switch Gigabit PoE / PoE+ 1G / 2.5G SFP Fiber 1



1 year for commercial products and 3 years for industrial products. Technical support will be offered free.


Products Category Warranty Period
Fiber media converter 1 year
Optical Video Converter 1 year
Fiber Switch 1 year
Ethernet Extender 1 year
Fiber Modem 1 year
PDH Multiplexer 1 year
Industrial switch 3 years


Packing Box


240W 10 Port Cloud Smart Managed POE Switch Gigabit PoE / PoE+ 1G / 2.5G SFP Fiber 2
