Industrial Managed PoE Switch 8 Port L2 Based 240W Budget Support 1G 2.5G Fiber Ring

1pc
MOQ
Negotiable
Price
Industrial Managed PoE Switch 8 Port L2 Based 240W Budget Support 1G 2.5G Fiber Ring
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Gigabit Ethernet Managed PoE Switch
Port: 12
POE Budget: 240W
POE Standard: IEEE 802.3af, IEEE 802.3at
Voltage: DC48V
Dimension: 158*115*60mm
Highlight:

120W Managed Industrial Ethernet Switch

,

802.3at Industrial Ethernet Switch

,

Manageable Industrial POE Switch
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: IM-FP488GW V1
Document: Managed Switch User Manual.pdf
Payment & Shipping Terms
Packaging Details: 1pc in a box, 0.9kg gross weight
Delivery Time: 4~7 working days
Payment Terms: L/C, PayPal
Supply Ability: 3500pcs/month
Product Description
8 Port PoE Gigabit Managed Industrial Network Switch

Introduction to 8 port PoE switch


IM-FP488GW series is the 10/100/1000/2500 Mbps managed industrial POE fiber switch featuring

  • IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
  • 8 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 4 x 1G/2.5G SFP fiber ports

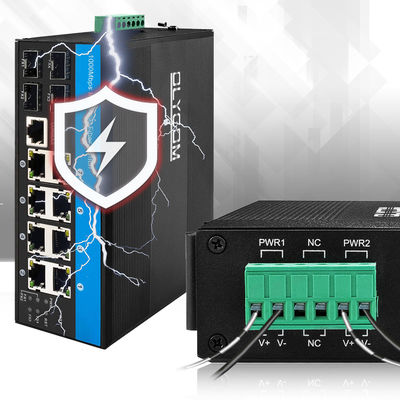

  • 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Comply with IEEE802.3af/at, 240W POE budge
  • Operating temperature -40 ℃ to + 75 ℃
  • Meet IP40 protection degree and EMC industrial grade requirements

Specification of Industrial managed switch

Product Name 10/100/1000Mbps Managed Industrial POE Fiber Switch (4F+8TP)
Port

4 x 100/1000/2500M SFP port

SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km

MM: 1310nm, 2Km; 850nm, 500m

8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: storage and forward

System bandwidth: 30Gbps (non-traffic jam)
Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port transmission distance: 20Km,40Km,60Km,80Km,100Km
LEDs

Power, network, fiber

PWR: Power

FX: Fiber port(1/2/3/4)

Orange: Link/ACT

Green: 1000M Network Speed(off when it is 100Mb/s)
Power supply

POE power supply input voltage: 48V (max 57V),

POE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~8)
Total budget: 240W

PoE output voltage: 48V
Environment

Working temperature: -40～75°C

Storage temperature: -40～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV

Certification

CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020

EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021/AC:2022

CE-LVD: EN IEC 62368-1:2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 115 x 60mm;

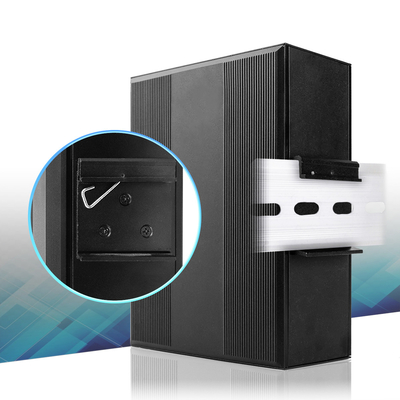

Mounting method: Din-rail mounting

Net weight: 0.75kg
Warranty Replacement within 1 year; 3 years repairing

Management Features



  • Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  • Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  • Support Qos, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression ,differentiated services
  • Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN, Protocol VLAN,VLAN convert, MVR
  • Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  • Support IGMP agent report, MLD snooping
  • Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  • Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  • Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.
Industrial Managed PoE Switch 8 Port L2 Based 240W Budget Support 1G 2.5G Fiber Ring 0

Dimension of Managed Ethernet Switch

Industrial Managed PoE Switch 8 Port L2 Based 240W Budget Support 1G 2.5G Fiber Ring 1

FAQ


1 Q: Do you accept sample order?

A: Yes. Sample order to check our services and quality.



2 Q:Can I have any discounts?

A: Discounts will be given to repeat orders, regular clients and discount products.



3 Q:Tell me something about your packing.

A: It is neutral packing. If you have your own packing box, we support it.



Industrial Managed PoE Switch 8 Port L2 Based 240W Budget Support 1G 2.5G Fiber Ring 2

Industrial Managed PoE Switch 8 Port L2 Based 240W Budget Support 1G 2.5G Fiber Ring 3
