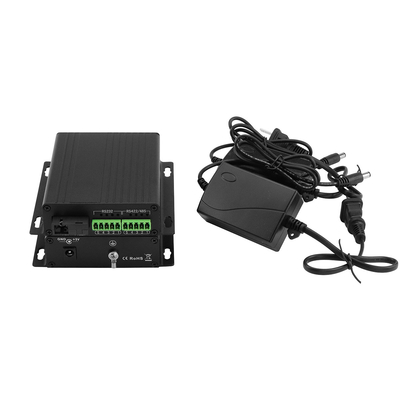

Industrial RS485 RS422 Serial Media Converter 40KM Single Core Fiber 1310 / 1550nm

• Serial RS485 RS422 optical fiber modem

Key Features of Serial optic extender

1. Extends RS-422 / RS-485 transmission up to 2Km on MMF, 80Km on SMF
2. Industrial Wall Mount Compact size rugged case
3. Diagnostic and unit indicator LEDs
4. Protects against electrical interference and chemical corrosion
5. Built-in surge and static protection
6. Wide temperature range
7. Plug-and-play, hot pluggable

Introduction to serial optical converter

1. OM2101-RS485/RS422 is a multi-function and economic RS-485/422 interface fiber optic product.
2. It is the best choice to connect RTU to HOST or SCADA controller.
3. It uses optic fiber as transmission media, increasing the system. transmitting function.
4. Communication equipments abstain menace effectively from lightning strike, surge, electromagnetism disturb in the working environment.

Specification of fiber optic modem

Application of serial fiber converter

Ordering Information

Above listed are the most frequently ordered items. Please contact us for other configurations.

FAQ

• One pair has two converters?

It is used in pairs. So yes.

• Is there any special software to use this device or just plug & play?

Just plug&play.

Once the fiber cable/serial signal got a problem, it stops working.

• Do we have to set for baud rate (RS485)?

Our MFM meters are using 9600 or 19200 baud rates.

• Will it work for those baud rates (either one)? Or baud rate is automatically selected?

Auto-sensing/300 Baud to 115,200 Baud

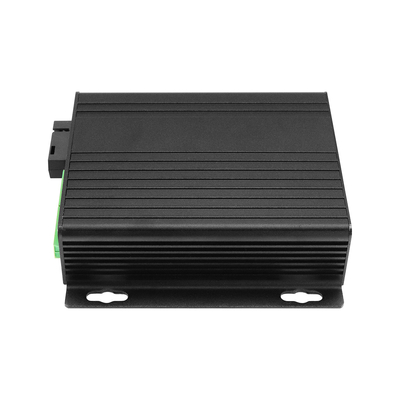

More product photos
