Hardened Gigabit Unmanaged Media Converter FC Fiber Single Core 12V 24V Mini

1 piece
Hardened Gigabit Unmanaged Media Converter FC Fiber Single Core 12V 24V Mini
Features Gallery Product Description Request A Quote
Product Name: Single Fiber Gigabit Media Converter
Size: 114*93*35mm
Weight: 350g
Distance: 20KM
Optical: FC Port
Mounting Method: Din Rail, Wall Mounting
High Light:

Hardened Unmanaged Media Converter


Single Core Unmanaged Media Converter


24V Industrial Ethernet Media Converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE ISO9001 RoHS FCC
Model Number: IM-FS120GE-FC
Payment & Shipping Terms
Packaging Details: 1pc in a carton, 0.45kg/pc
Delivery Time: 4~7 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

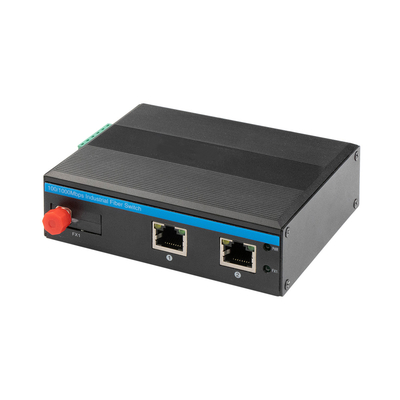

Rugged single core 20KM FC fiber Ethernet unmanaged Media converter


Key Features of Unmanaged Media Converter


  • 2 x 10/100/1000Mbps Auto-sensing RJ45 ports
  • 1 x 1000Mbps FC fiber port, single core, 20KM
  • 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~85 ° c


Specification of gigabit fiber Ethernet converter


Product Name 10/100/1000Mbps Industrial Fiber Switch (1F+2TP)
Model No. IM-FS120GE-FC

1 x 1000Mpbs SFP port


2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode:storage and forward

System bandwidth:6Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

Input voltage:DC 9-52V

No-load power:5W

Reverse connection:support



Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control:NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic:EN 50121-4


CE Mark ,commercial

CE/LVD EN60950

Mechanical information

Shell:Corrugated metal shell

Safety class:IP40

Dimension: 113.8 x 93 x 34.9mm

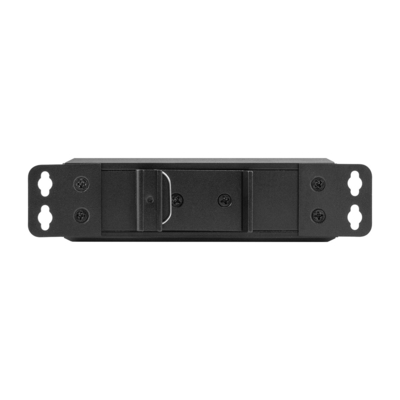

Mounting method:Din-rail mounting

Warranty Replacement within 1year; 3 years repairing



Application of Rugged Ethernet converter


Hardened Gigabit Unmanaged Media Converter FC Fiber Single Core 12V 24V Mini 0




1 year for commercial products and 3 years for industrial products. Technical support will be offered free.


  • The customer is responsible for delivering the defective product to the designated RMA Address for repair or replacement. Olycom will repair or replace a product that was found to be defective by Olycom during the warranty period at its discretion. The sole responsibility of Olycom under this warranty shall be limited to repair of this product, or replacement thereof, at the sole discretion of Olycom.
  • All RMA items shipped to Olycom must be freight prepaid.
  • The repaired products would be returned within 1 month after receiving the return materials. Freight charge should be paid by the sender.
  • Any RMA items shipped to Olycom which are out of warranty will not be returned to the customer under any circumstances.


Products Category Warranty Period
Fiber media converter 1 year
Optical Video Converter 1 year
Fiber Switch 1 year
Ethernet Extender 1 year
Fiber Modem 1 year
PDH Multiplexer 1 year
Industrial switch 3 years
