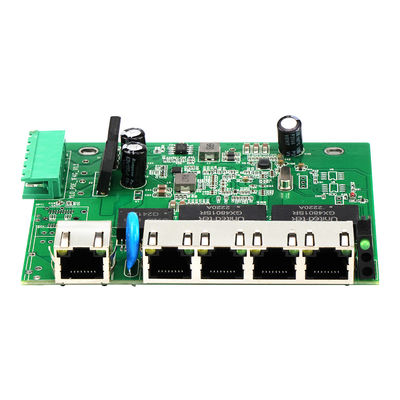

5 port 10/100/1000Mbps Unmanaged Ethernet Switch PCBA
Key Features of gigabit switch PCBA
Specification of Industrial Ethernet Switch
| Product Name | 10/100/1000Mbps Industrial Ethernet Switch(5TP) |
| Model No. | IM-WS050GE-PCB |
| Port | 5 x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth: 10Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
| LEDs | Power, network |
| Power supply |
Input voltage: DC 12-52V No-load power: 5W Reverse connection: support |
| Environment |
Working temperature: -40°～ 85°C Storage temperature: -40°～ 75°C Working humidity: 10%～90%,non-condensing Storage humidity: 10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety | CE Mark, commercial CE/LVD EN60950 |
| Mechanical information |
Shell: Corrugated metal shell Safety class: IP40 Dimension: 114x 93 x 35mm Mounting method: Din-rail mounting |
| Warranty | Replacement within 1 year; 3 years repairing |
Dimension of 5 port network switch
Our Advantages
OEM/ODM
More Product Photos
