Industrial Multimode RS232 Serial Media Converter
Key Features of serial fiber converter
| Standard | EIA /TIA RS232, RS-422, RS-485 |
| Fiber Connector | SC standard, ST/FC optional |
| Fiber Distance | 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km |
| Serial Connector | RS-232 ,RS-422, RS-485: phoenix terminal |
| Serial Distance | RS-232 port 15m, RS-422, RS-485: 1500 meters |
| Rate | 0-120Kbps |
| Baud Rate | 300 Baud to 115,200 Baud |
| RS-485 | D+, D-, GND |
| RS-422 | R+, R-, T+, T-, GND |
| RS-232 | IN, OUT, GND |
| Power rate | 2W, 5-40V |
| Static protection | 15KV electric static discharge (ESD) protection |
| Surge protection | 1500W/sec surge protection |
| Operation Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Storage Humidity | 5%~90% non-condescending |
| Dimensions | 110mm*104mm*28mm |
| Weight | 0.3kg/pcs |
Packing Box of RS232 fiber modem
Ordering Details
| OM2101-RS232-M2-SC |
RS232 serial to fiber converter, DB9-RS232, MM, dual fiber, 2Km, SC
|
| OM2101-RS232-S20-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 20Km, SC
|
| OM2101-RS232-S40-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 40Km, SC
|
| OM2101-RS232-S60-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 60Km, SC
|
| OM2101-RS232-S80-SC |
RS232 serial to fiber converter, DB9-RS232, SM, dual fiber, 80Km, SC
|
| OM2101-RS485/RS422-M2-SC |
RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
|
| OM2101-RS485/RS422-S20-SC |
RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
|
| OM2101-RS232/RS485/RS422-M2-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
|
| OM2101-RS232/RS485/RS422-S20-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
|
| OM2101-RS232/RS485/RS422-S40-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 40Km, SC
|
| OM2101-FV24-M2-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, MM, dual fiber, 2Km, SC
|
| OM2101-FV24 -S20-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 20Km, SC
|
| OM2101-FV24-S40-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 40Km, SC
|
| OM2101-FV24-S60-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 60Km, SC
|
| OM2101-FV24-S80-SC |
RS232/RS422/RS485 serial to fiber converter, Phoenix terminal, SM, dual fiber, 80Km, SC
|

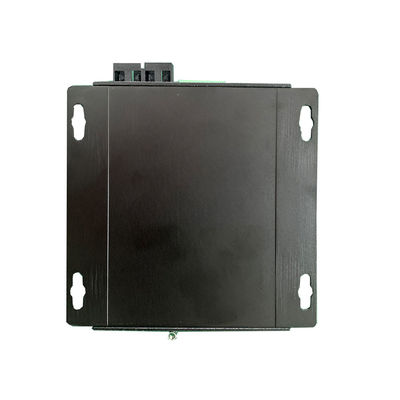

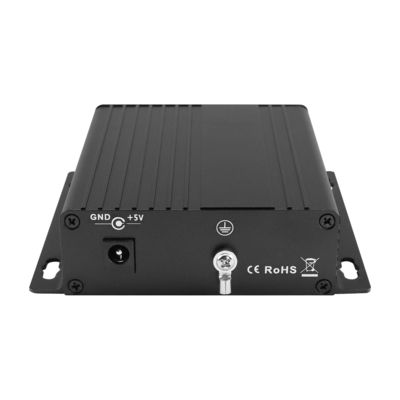

Detailed Photos
