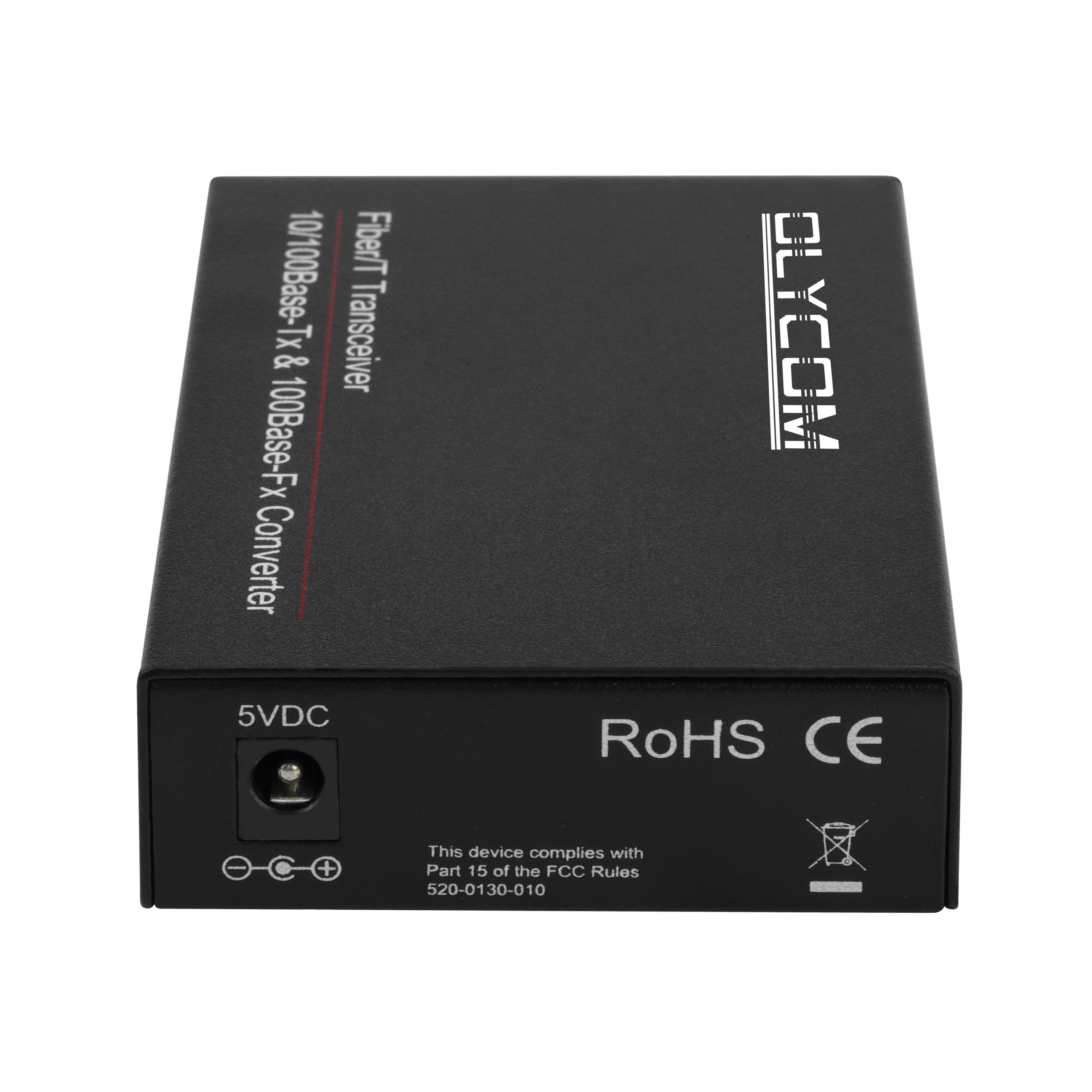

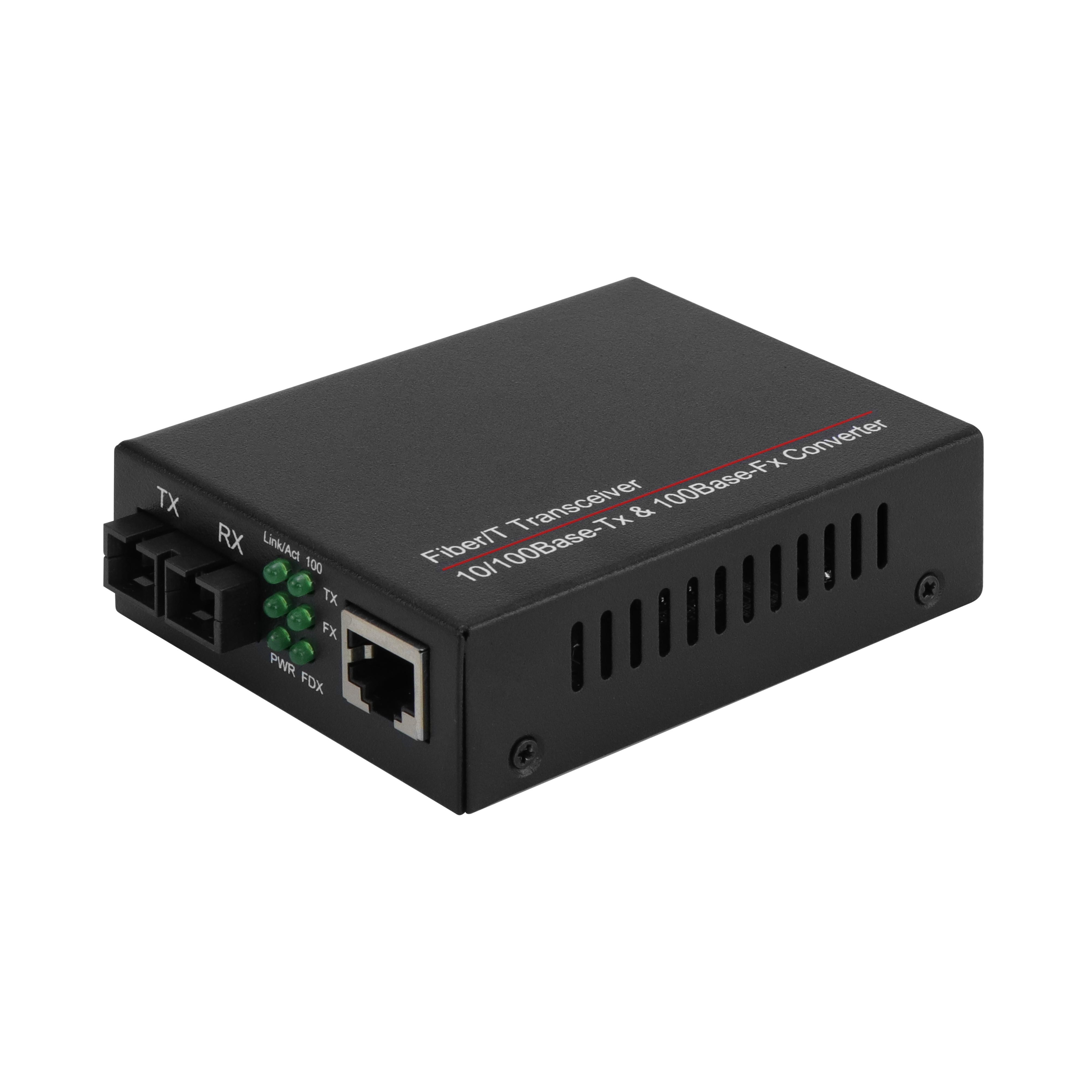

OEM Single mode unmanaged gigabit fiber media converter
Introduction of Gigabit media converter
Olycom TA310 series unmanaged gigabit media converter features
Specification of unmanaged fiber optic converter
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEE802.3z 1000BASE-SX/LX(Gigabit-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100/1000BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 1000BASE-FX |
50/125ummulti mode fiber cable (1km) 62.5/125um multimode fiber cable (0.5km) 9/125um singlemode fiber cable (20/40/60/80/100/120km) |
|
Conversion Mode Delay Time |
Store-and-Forward<10us straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | SC standard, ST/FC optional |
| Wavelength | 1310nm |
| Dimensions | 70mm(W) x 93mm(D) x 25mm(H) |
| Weight | Net weight : 0.16kg; Gross weight : 0.42kg |
| Input Voltage | DC 5V1A with External power adapter |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 128K |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~75℃ |
| Storage Humidity | 5%~90% non-condescending |
Application of Fiber Ethernet Media Converter
Company Profile
We are a 20-year-old manufacturer with production lines and basically provide Industrial Switch/Fiber Bypass/POE++ switch/Media Converter/Video Fiber Converter
Our competitive advantages are
FAQ
1 Q: What is your lead time?
A:It usually takes 2~4 working days to produce and then will send goods.
2 Q: Please tell me something about your MOQ
A: Our MOQ is 1 Pcs/Pair based on USD or EUR terms.
3 Q: Something about pricing.
A: Good quality components for our products. Low prices for big and repeat orders.
4 Q: What is warranty time?
A: 1 year for commercial products and 3 years for industrial products. Technical support will be offered free.
5. How will you ship my order?
We will send the goods by air(DHL, UPS or FEDEX) or by sea(for bulk order)
It is fine to ship purchased items via customer’s shipping account or forwarder.
It takes 3~5 calendar days to arrive at local customs for clearance.
6. Do you support OEM&ODM?
Yes, this is our competitive advantage.
