Serial Fiber Media Converter RS485 RS422 RS232 SC 20km For RTU HOST SCADA

1 pair
MOQ
Negotiatable
Price

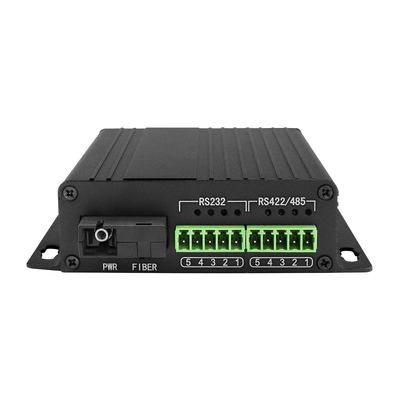

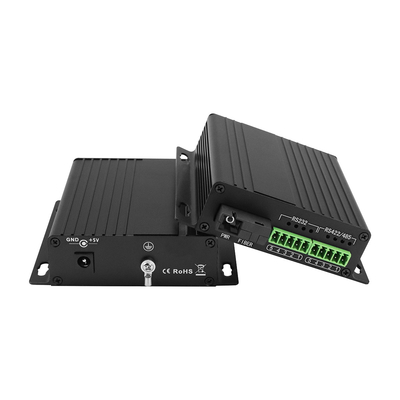

Serial Fiber Media Converter RS485 RS422 RS232 SC 20km For RTU HOST SCADA
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Serial Fiber Optic Modem
Weight: 300g
Dimension: 110*104*28mm
Operation Temperature: -25°C To +70°C
Serial Format: RS232/RS422/RS485
Fiber Port: SC Connector
Highlight:

RS422 Serial To Fiber Optic Converter

,

RS232 Serial To Fiber Optic Converter

,

RTU Serial Fiber Converter

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM2101-RS232/RS485/RS422-S20-SC
Payment & Shipping Terms
Packaging Details: 1 pair in a carton, 30.7*21.6*6.8cm
Delivery Time: 4-8 working days
Payment Terms: T/T, PayPal
Supply Ability: 3000pcs/month
Product Description

Industrial Serial RS232/422/485 to Fiber Optic Modem Converter



Introduction of RS232/422/485 fiber converter



  • OM2101-RS232/RS422/RS485 is a multi-function and economic RS-232/485/422 interface fiber optic product.
  • It is the best choice to connect RTU to HOST or SCADA controller.
  • It uses optic fiber as transmission media, increasing the system. transmitting function.
  • Communication equipments abstain menace effectively from lightning strike, surge, electromagnetism disturb in the working environment.



Key Features of Serial Media Converter



  1. Plug-and-play, hot-pluggable
  2. Extends RS232/RS-422 / RS-485 transmission up to 2Km on MMF, 80Km on SMF
  3. Industrial Wall Mount Compact size rugged case
  4. Protects against electrical interference and chemical corrosion
  5. Built-in surge and static protection
  6. Diagnostic and unit indicator LEDs
  7. Wide temperature range



Specification of industrial serial fiber modem



Standard EIA /TIA RS232, RS-422, RS-485
Fiber Connector SC standard, ST/FC optional
Fiber Distance 50/125um MMF: 2Km, 62.5/125um MMF: 5Km, 9/125 SMF:20/40/60/80Km
Serial Connector RS-232 ,RS-422, RS-485: phoenix terminal
Serial Distance RS-232 port 15m, RS-422, RS-485: 1500 meters
Rate 0-120Kbps
Baud Rate 300 Baud to 115,200 Baud
RS-485 D+, D-, GND
RS-422 R+, R-, T+, T-, GND
RS-232 IN, OUT, GND



Power rate 2W, 5-40V
Static protection 15KV electric static discharge (ESD) protection
Surge protection 1500W/sec surge protection
Operation Temperature -25°C to +70°C
Storage Temperature -40°C to +85°C
Storage Humidity 5%~90% non-condescending
Dimensions 110mm*104mm*28mm
Weight 0.3kg/pcs



Characteristics



  1. Instruction for LED(fiber): OFF: work correctly Blink: failed in working
  2. Instruction for LED(data): ON: data transmission OFF: no data transmission
  3. Support RS-232/RS-485/RS-422 interface
  4. Asynchronous, point to point, rate up to 115Kbps
  5. Support 5V power input(9V-48V optional), consumption 2W
  6. 1500W surge protection, 15KV static protection
  7. RS-485/422 port support 32 node ( can choice hand tailor 128 Node)
  8. Working wavelength:1310nm(multi-mode) ,1310nm (single mode)
  9. Auto test signal rate, zero delay, auto-transmit





Application of serial fiber optic modem



Serial Fiber Media Converter RS485 RS422 RS232 SC 20km For RTU HOST SCADA 0

Serial Fiber Media Converter RS485 RS422 RS232 SC 20km For RTU HOST SCADA 1

Serial Fiber Media Converter RS485 RS422 RS232 SC 20km For RTU HOST SCADA 2
