Introduction of 8 port Ethernet Switch
IM-WP088GE series is the 10/100/1000 Mbps industrial POE Ethernet switch featuring below
-
Comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable
-
POE total budget 240W
-
Simple construction, plug-and-play
-
DIN rail installation, it is fine to customize different mounting methods
-
Operating temperature -40 ℃ to + 75 ℃
-
Pass through dangerous environmental certification and comply with FCC and CE standards
Key Features of industrial gigabit POE switch
-
IEEE 802.3af /at power on to 1 ~ 8 RJ45 ports
-
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
-

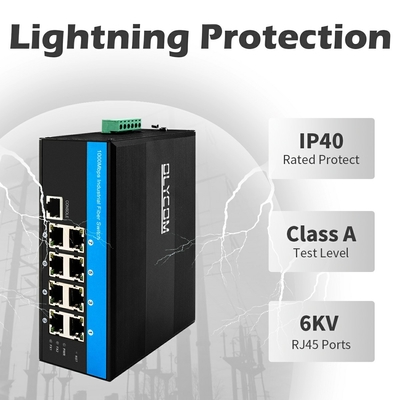

6KV Ethernet surge protection, adapt to a harsh outdoor environment
-
Support Auto MDI/MDIX
-
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
-
Max power to15.4W under af standard, 30W under at standard to each PoE port
-
Detect the PoE models of electrical equipment
-
A store-and-forward switching mechanism
Specification of 8 port unmanaged POE switch
|
Product Name
|
10/100/1000Mbps Industrial POE Unmanaged Switch (8TP)
|
|
Model No.
|
IM-WP088GE
|
|
Port
|
8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
|
Switching features
|
Transmission mode:Storage and forward
System bandwidth:16Gbps (non-traffic jam)
|
|
Network media
|
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
|
|
LED
|
Power, network, fiber
|
|
Power supply
|
POE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~8)
Total budget: 240W
PoE output voltage: 48V
|
|
Environment
|
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
|
Industry Standards
|
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
|
Safety
|
CE Mark, commercial
CE/LVD EN60950
|
|
Mechanical information
|
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 115x 60mm

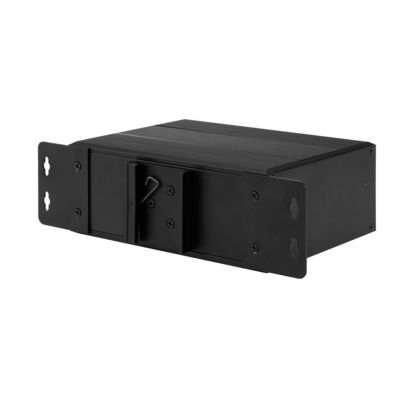

Mounting method: Din-rail/Wall mounting
|
|
Warranty
|
Replacement within 1 year; 3 years repairing
|
OLYCOM Overview
1. Company Profile
Founded in 2003, Shenzhen OLYCOM focuses on fiber optics and networking solutions
Combines R&D, manufacturing, and global delivery capabilities
Serves customers in 120+ countries across telecom, industry, and enterprise sectors
2. Core Products
Industrial Ethernet switches (L2/L3, managed/unmanaged)
PoE switches (IEEE 802.3af/at/bt)
DWDM systems (MUX/DEMUX, OADM, high-capacity transmission)
Media converters (fiber ↔ Ethernet)
SFP modules (1G–400G, multi-brand compatible)
Fiber devices (video extenders, serial converters, PLC modules)
3. Key Capabilities
Industrial design for harsh environments (temperature, vibration, humidity)
Redundant power input and stable long-term operation
High-speed transmission with low latency and high bandwidth efficiency
Scalable optical solutions to maximize fiber utilization
4. Global Reach
Strong presence in North America, Europe, Southeast Asia, and the Middle East
Long-term cooperation with distributors, integrators, and enterprise clients
5. Competitive Strengths
Continuous R&D investment with experienced engineering team
Strict quality control (ISO9001, CE, FCC, RoHS)
OEM/ODM customization for project-specific needs
Balanced cost-performance for high-value solutions
6. Applications
Telecommunications & long-distance transmission
Surveillance & security (PoE for IP cameras)
Data centers & high-speed networks
Industrial automation & smart infrastructure
Smart city & IoT deployments
7. Vision & Mission
Vision: Become a trusted global networking solution provider
Mission: Deliver reliable, scalable, and cost-efficient connectivity solutions
8. Summary
20+ years of experience in networking and fiber optics
Focus on stability, performance, and practical deployment value
Enabling faster, more reliable, and scalable network infrastructure worldwide
QC Framework
1. Standards
Comply with ISO9001, CE, FCC, RoHS, IEC 61753, ITU-T G.694.1; meet industrial field networking and long-distance transmission specifications.
2. Process
Incoming inspection of optical fibers, connectors, transmission chips and lightning protection modules;
Production assembly and optical path coupling inspection;
Optical transmission index test, relay transmission verification, surge & ESD protection test;
Wide temperature cycle test, anti-interference test, long-time uninterrupted operation test;
Aging screening and full performance regression test before delivery.
3. Tests
Optical loss, dispersion tolerance, transmission distance, relay capability, ESD/lightning protection, -40~75℃ temperature adaptability.
4. Tools
Optical time-domain reflectometer (OTDR), fiber loss tester, ESD simulator, environmental test chamber.
5. System
Full optical path test records, serial number traceability, component and supplier quality archive.
6. Improvement
Transmission stability analysis, on-site fault simulation, lightning protection and anti-interference optimization.
Dimension of 8 port network switch
Application of unmanaged 8 port industrial switch
