4 POE Ports Gigabit Network Ethernet Mini POE Switch 48v Unmanaged
1
MOQ
Negotiable
Price
4 POE Ports Gigabit Network Ethernet Mini POE Switch 48v Unmanaged
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-FP222GE
High Light:

IP40 Mini POE Switch

,

Unmanaged Mini POE Switch

,

Industrial Unmanaged POE Switch 48v

Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 days
Payment Terms: Western Union, T/T, Paypal, D/P, D/A, L/C, MoneyGram
Supply Ability: 600 per month
Specifications
Product Name: 4 POE Ports Network Ethernet Mini Unmanaged Switch
Rate: 10/100/1000Mbps
Fiber Port: 2
Ethernet Port: 2
Function: Support PoE 15.4W/30W
Dimension: 113.8 X 93 X 34.9mm
Product Description

4 POE Ports Gigabit Network Ethernet Mini Poe Switch 48v Unmanaged 4 Ports Switch



Introduction
IM-FP222GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features

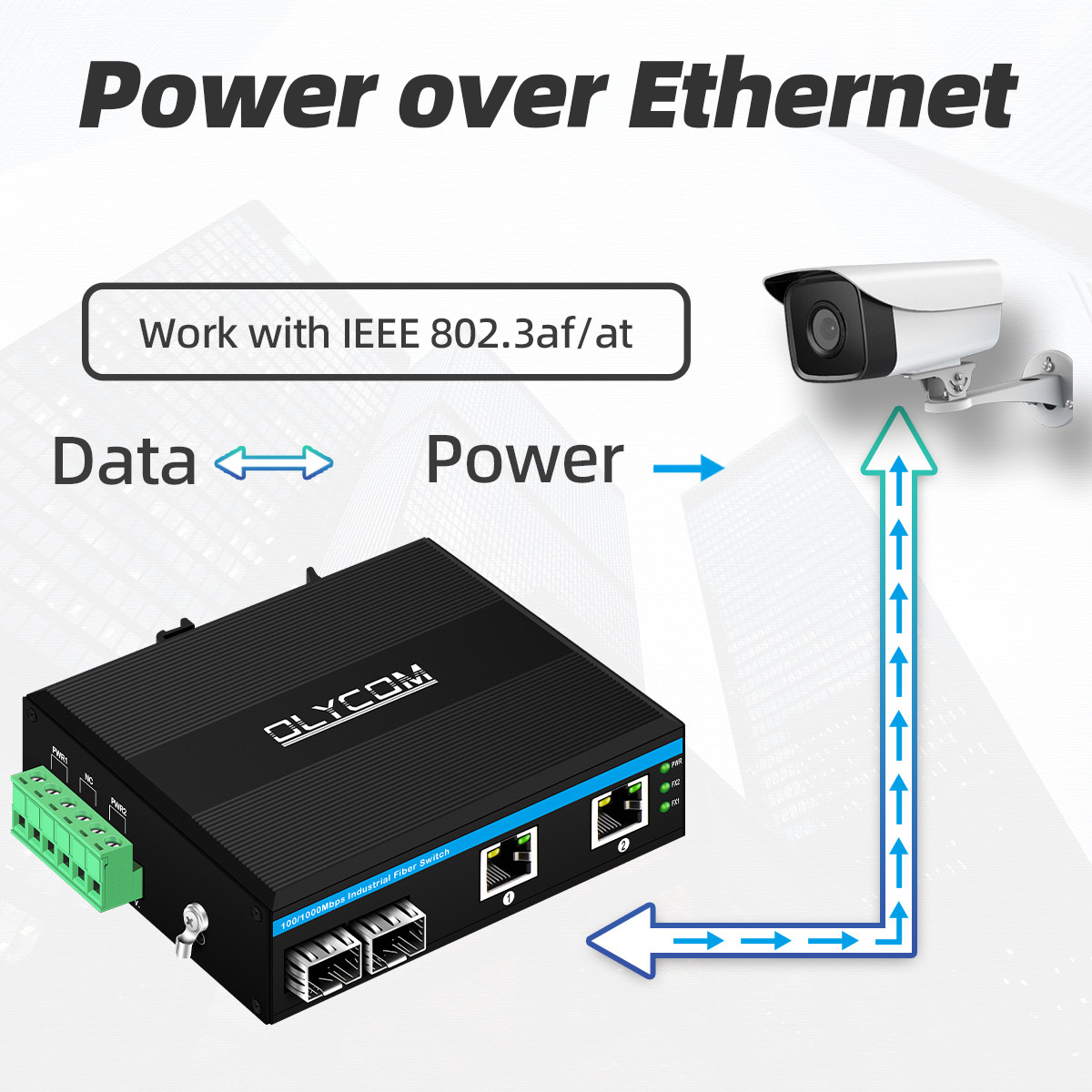

  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  2. IEEE 802.3af/at power on to 1 ~ 2 RJ45 ports
  3. 2x 10/100/1000Mbps Auto-sensing RJ45 ports
  4. 2x 1000Mbps SFP fiber ports
  5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
  6. Support Auto MDI/MDIX
  7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  9. Max power to15.4W under af standard, 30W under at standard to each PoE port
  10. Detect the PoE models of electrical equipments.
  11. A store-and-forward switching mechanism
  12. Operating environment temperature:-40 ° ~85 ° c



Product Details

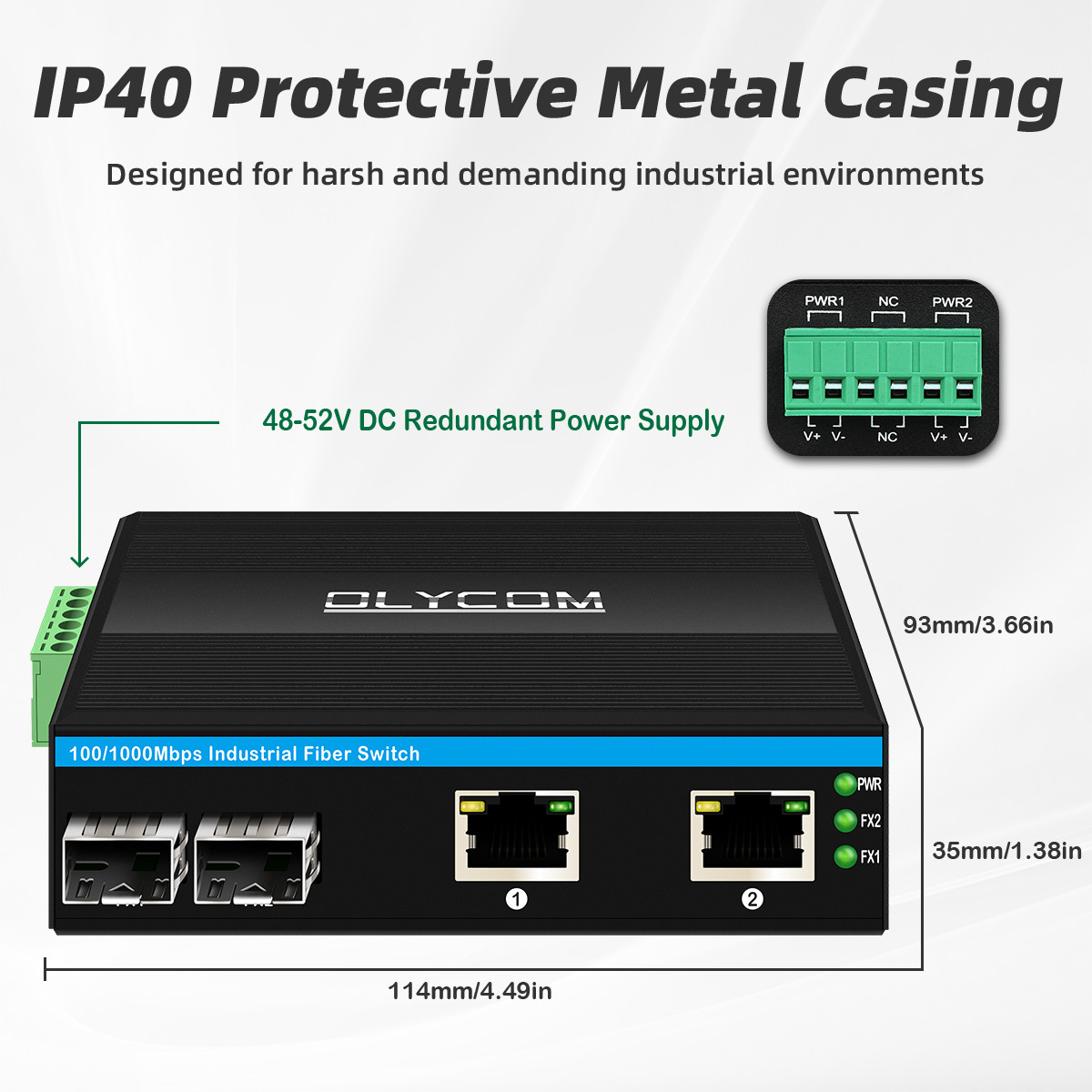

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

Mounting method: Din-rail mounting

LEDs: Power, network, fiber



Environment

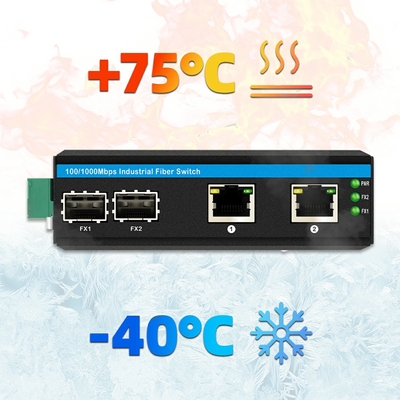

Working temperature:-40°~ 85°C

Storage temperature:-40°~ 85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing



Specification

Product Name 10/100/1000Mbps Industrial Unmanaged POE Fiber Switch (2F+2TP)
Model No. IM-FP222GE
Port

2x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km

       1490nm/1550nm,40~120Km

MM:1310nm,2Km

2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~2)

(802.3at standards required special instructions)

Safety

CE Mark, commercial

CE/LVD EN60950

Warranty Replacement within 1 year; 5 years repairing



Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic: EN 50121-4



FAQ

Q: What's your MOQ?

A: 1 piece



Q: What is the warranty time?

A: Three years for industrial fiber switch and SFP transceiver. Lifetime repair service is provided.



Q: How long is the lead time?

A: Usually 3-5 days, but need to check when you process orders.



Q: Do you provide OEM service?

A: Yes, we provide OEM service. If you have requirements about a customized product, we also provide it.



Q: What can you buy from us?

A: Industrial Fiber Switch, DVI/SDI Video Optical Converter, POE Fiber Switch, Fiber Media Converter, SFP Transceiver

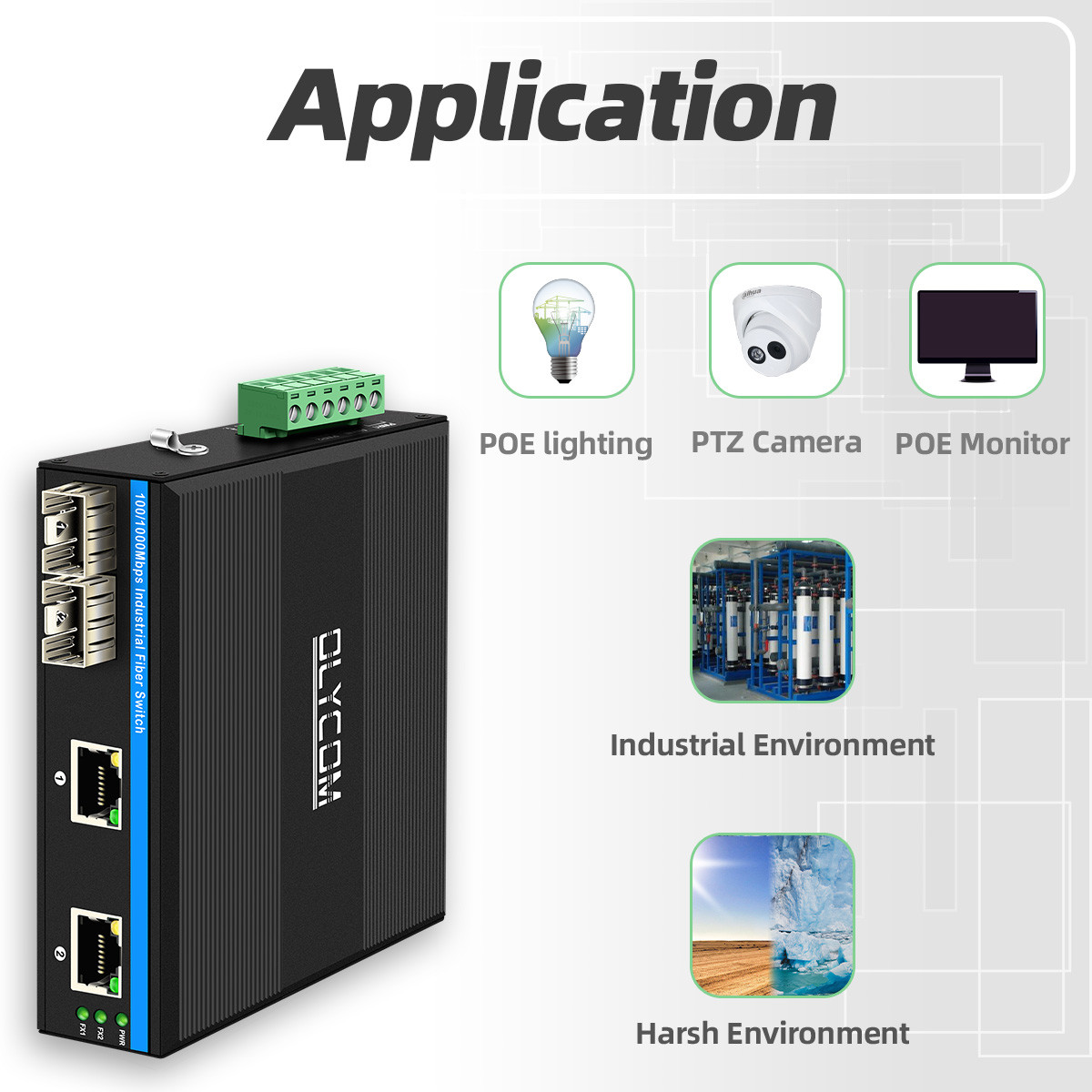

Application
4 POE Ports Gigabit Network Ethernet Mini POE Switch 48v Unmanaged 0




4 POE Ports Gigabit Network Ethernet Mini POE Switch 48v Unmanaged 1

4 POE Ports Gigabit Network Ethernet Mini POE Switch 48v Unmanaged 2
