Olycom 8-Port Gigabit PoE/PoE+ DIN Managed Switch
Key Features of Manageable PoE Switch
Specification of Industrial Fiber Switch
Product Name | 10/100/1000Mbps Managed Industrial PoE Fiber Switch(1F+8TP) |
Model No. | IM-FP188GW |
Port |
1*100/1000/2500Mpbs SFP ports SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500-meter 8*10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
Protocol |
IEEE 802.3 IEEE802.3U IEEE802.3ab IEEE802.3z IEEE802.1d STP IEEE802.1w RSTP IEEE802.1s MSTP ITU-T G.8023 EPR/Y.1344 IEEE802.1Q IEEE802.1X IEEE802.3ad IEEE802.3x IEEE802.1ad IEEE802.1p IEEE802.1ab IEEE802.3az IEEE802.3af IEEE802.3at |
Switching Features |
Transmission mode: storage and forward Forwarding delay: <10us System bandwidth: 21Gbps(non-traffic jam) DRAM size: 128M Flash size: 16M VLAND ID: 4096 MAC Address Table Size: 8K Jumbo Frame: 9.6KB |
Network Media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) |
LEDs |
Power, network, fiber PWR: Power
Orange: Link/ACT Green: 1000M Network Speed(off when it is 100Mb/s)
Fiber: FX1 |

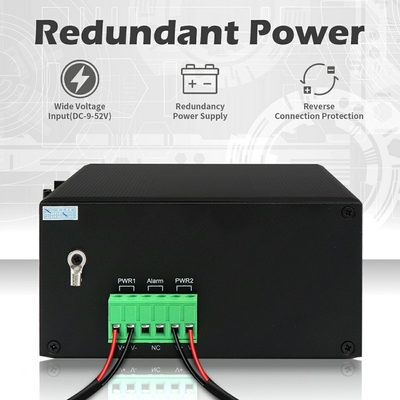

Power Supply |
Input voltage: 48V(max 52V) PoE output voltage: 48V Single PoE output power: 30W(port 1~8) Max budget: 240W Reverse connection: support |
PoE Wiring | PoE af/at: 1/2(V+), 3/6(V-) |
Environment |
Working temperature: -40°C~75°C Storage temperature: -40°C~85°C Working humidity: 10%~90%, non-condensing Storage humidity: 10%~95%, non-condensing |
Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact EFT: IEC61000-4-4, General ±6KV Surge: IEC61000-4-5, Differential ±2KV, Common±6KV |
Certification |
CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020 EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021 EN 61000-3-3: 2013/A2: 2021/AC:2022 CE-LVD: EN IEC 62368-1: 2020+A11:2020 FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014 |
Mechanical information |
Shell: Corrugated metal shell, IP40 grade level Dimension: 158*115*60mm Mounting method: Din-rail/Wall mounting Weight: 0.75Kg/0.9Kg(Net/Gross) |
Warranty | 3 years, lifetime technical support |
Managed Function of Managed Fiber Switch
Application
Package
1. One product, one console cable, one user manual, and one warranty card are inside one box.
2. Twenty boxes are in one carton.
FAQ
Q: Does this managed switch include the power supply?
A: No, no power adapter is included.
Q: Are you a manufacturer or trading company ?
A: We are a manufacturer in Shenzhen, China, focusing on fiber optical equipments products.
Q: What are the POE standards?
A: This is an industrial POE+ switch. Each network port can reach 30W when the power supply is 48VDC 5A.
Q: Is it a managed switch?
A: Yes, this is an L2 managed POE switch for industrial networks.
