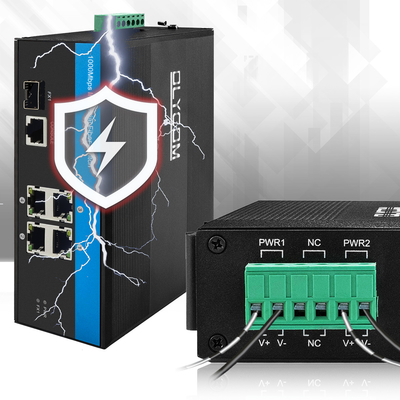

Gigabit Web Managed Ethernet Industrial Switch
Introduction
IM-FS140GW series is the 10/100/1000 Mbps industrial fiber switch featuring
Key Features
Specification
| Product Name | 10/100/1000Mbps Managed Industrial Fiber Switch (1F+4TP) |
| Model No. | IM-FS140GW |
| Port |
1x 1000Mpbs SFP ports SM: 1310nm/1550nm, 20Km 1490nm/1550nm, 40~120Km MM: 1310nm, 2Km; 850nm, 500m 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode: storage and forward System bandwidth:13Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 12-52V No-load power:5W Reverse connection: support |
| Environment | Working temperature: -40～75°C
Storage temperature: -40～85°C Working humidity: 10%～90%, non-condensing Storage humidity: 10%～95%, non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration: IEC 60068-2-6 Freefall: IEC 60068-2-32 Shock: IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |

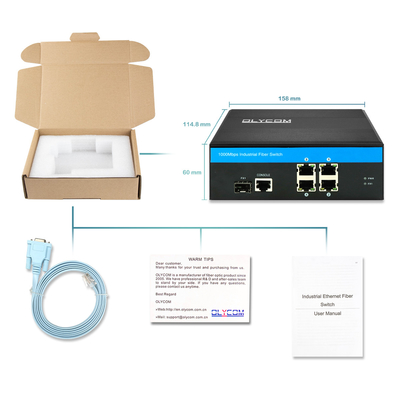

Shell: Corrugated metal shell Safety class: IP40 Dimension: 158 x 115x 60mm Mounting method: Din-rail/Wall mounting |
| Warranty |
Replacement within 1year 3 years repairing |
Application
FAQ
1 Q: What is warranty time?
A: A year for commercial products and 3 years for industrial products. Technical support will be offered free.
2 Q: Do you accept sample orders?
A: Yes. Sample order to check our services and quality.
3 Q: Can I have any discounts?
A: Discounts will be given to repeat orders, regular clients and discount products.
4 Q: Can you show me how to use and test the devices?
A: Yes, we are an OEM manufacturer and do multiple testings each day.
We have different videos to explain the connection and working mechanism.
5 Q: Is it an option to just have PCBs from us?
A: Yes, as a source factory, we have many PCBs in stock, it is fine to supply boards with enclosure.
