Gigabit SNMP CLI Industrial Managed Fiber Switch 14 Port POE 240W

Gigabit SNMP CLI Industrial Managed Fiber Switch 14 Port POE 240W
Features Gallery Product Description Request A Quote
Product Name: 14 Port Gigabit SNMP CLI Industrial Managed Fiber Switch POE
Ethernet Port: 8 RJ45 Port
Fiber Port: 6 SFP Slot
OEM/Customization: Available
Power Supply: 48V (max 52V)
Warranty: 3 Years
High Light:

SNMP Managed Fiber Switch


CLI Managed Fiber Switch


52V Industrial Managed POE Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, ROHS
Model Number: IM-FP688GW
Payment & Shipping Terms
Packaging Details: 1pc in box
Delivery Time: 3-5 workdays
Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram
Supply Ability: 6500pcs per month
Product Description

14 Port Gigabit SNMP CLI Industrial Managed Fiber Switch POE 240W Budget




IM-FP688GW series is the 10/100/1000 Mbps 14 Port SNMP CLI Industrial Managed POE Switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.


Key Features

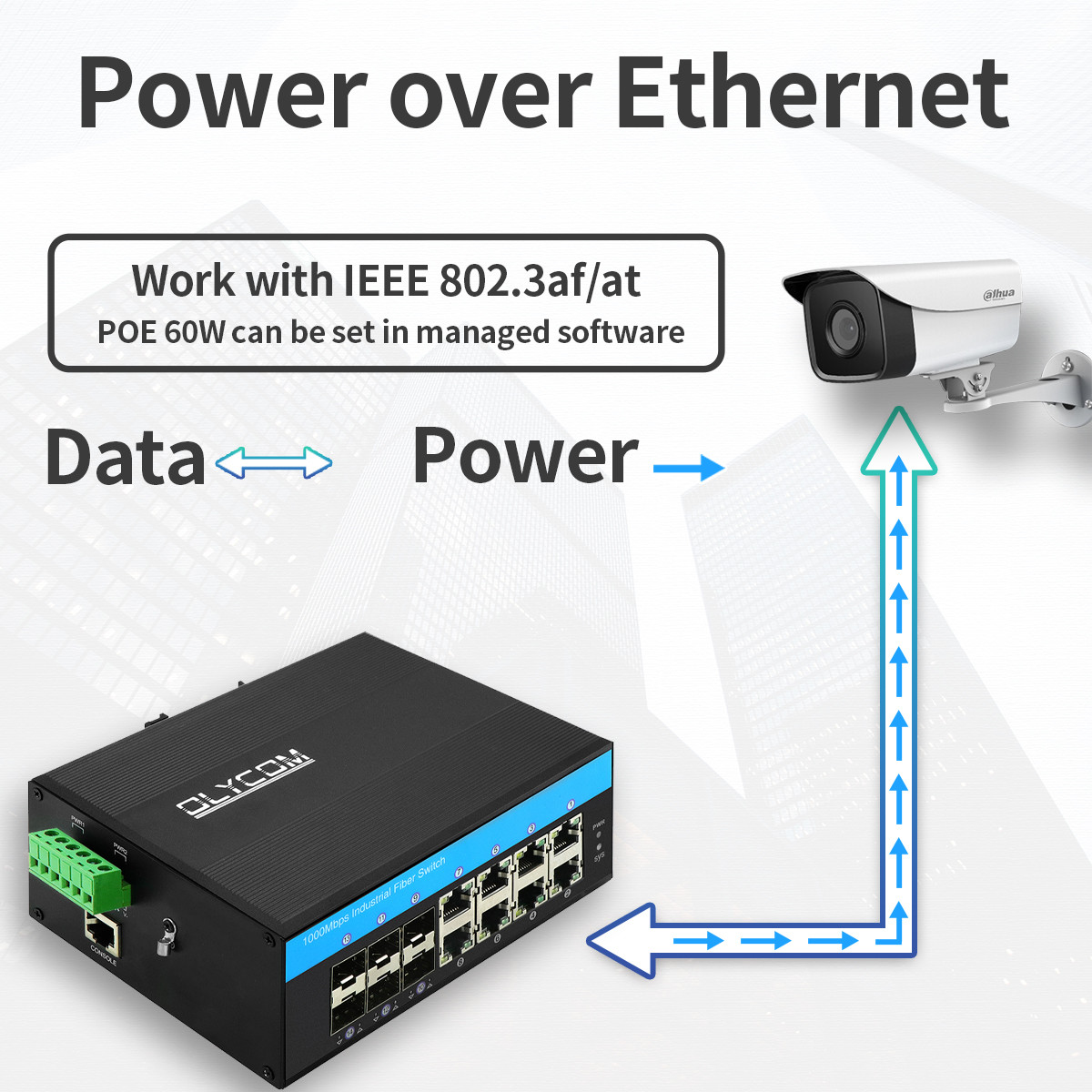

  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

  2. IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports

  3. 8 x 10/100/1000Mbps Auto-sensing RJ45 ports

  4. 6 x  1000Mbps SFP fiber port

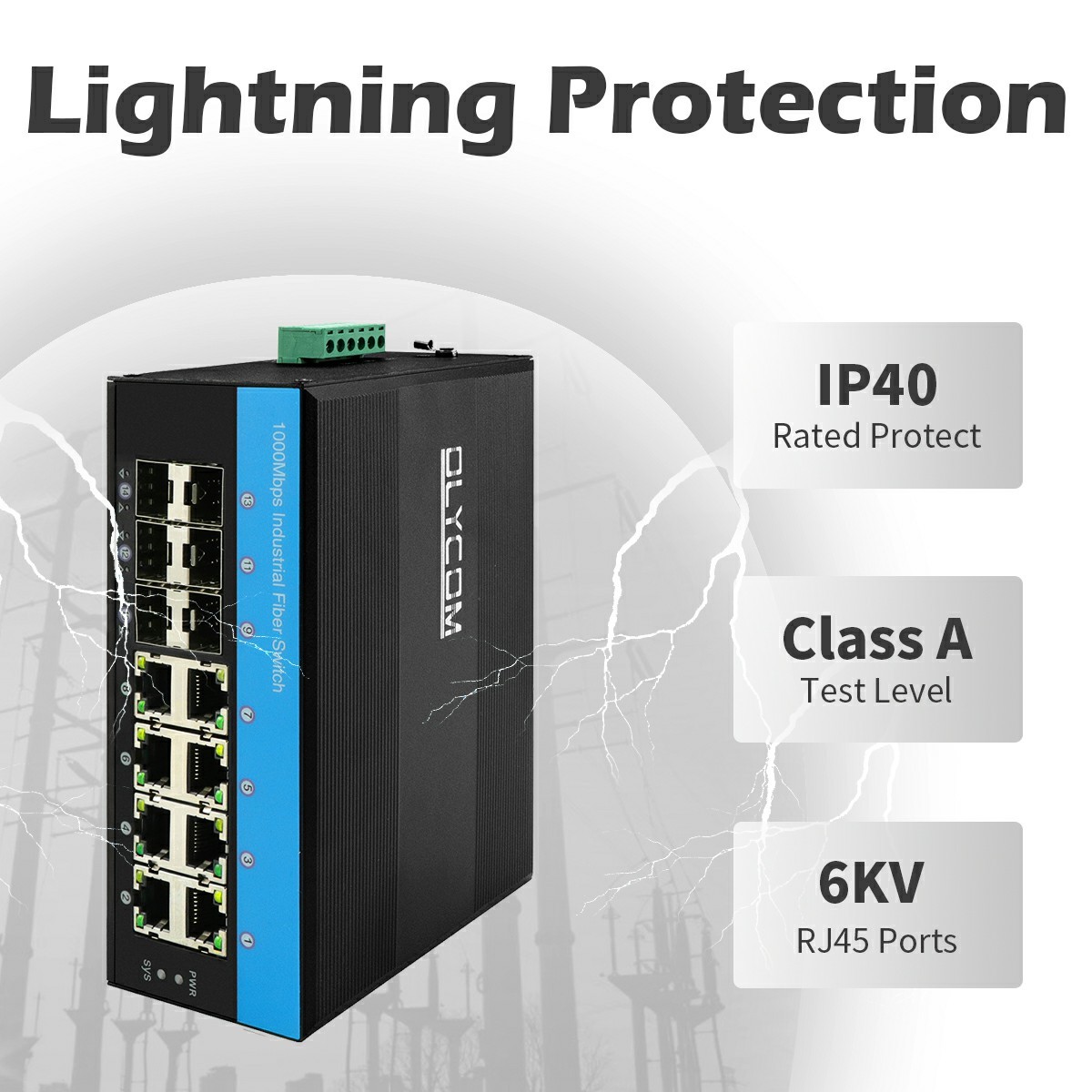

  5. 4KV Ethernet surge protection, adapt to a harsh outdoor environment
  6. Support Auto MDI/MDIX
  7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  9. A store-and-forward switching mechanism
  10. Operating environment temperature:-40 ° ~85 °


Managed Function


  1. Support cable diagnosis and can locate the fault point
  2. Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  4. Support Qos, transport classification Qos, Cos, bandwidth control
  5. (input/output direction), storm suppression ,differentiated services
  6. Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
  7. Protocol VLAN,VLAN convert, MVR
  8. Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  9. Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  10. Support IGMP agent report, MLD snooping
  11. Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  12. Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  13. Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  14. Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  15. Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  16. Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.




Product Name 14 Port Gigabit SNMP CLI Industrial Managed Fiber Switch POE (4F+8TP)
Model No. IM-FP688GW

6x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km;

8x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: storage and forward

System bandwidth:40Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network

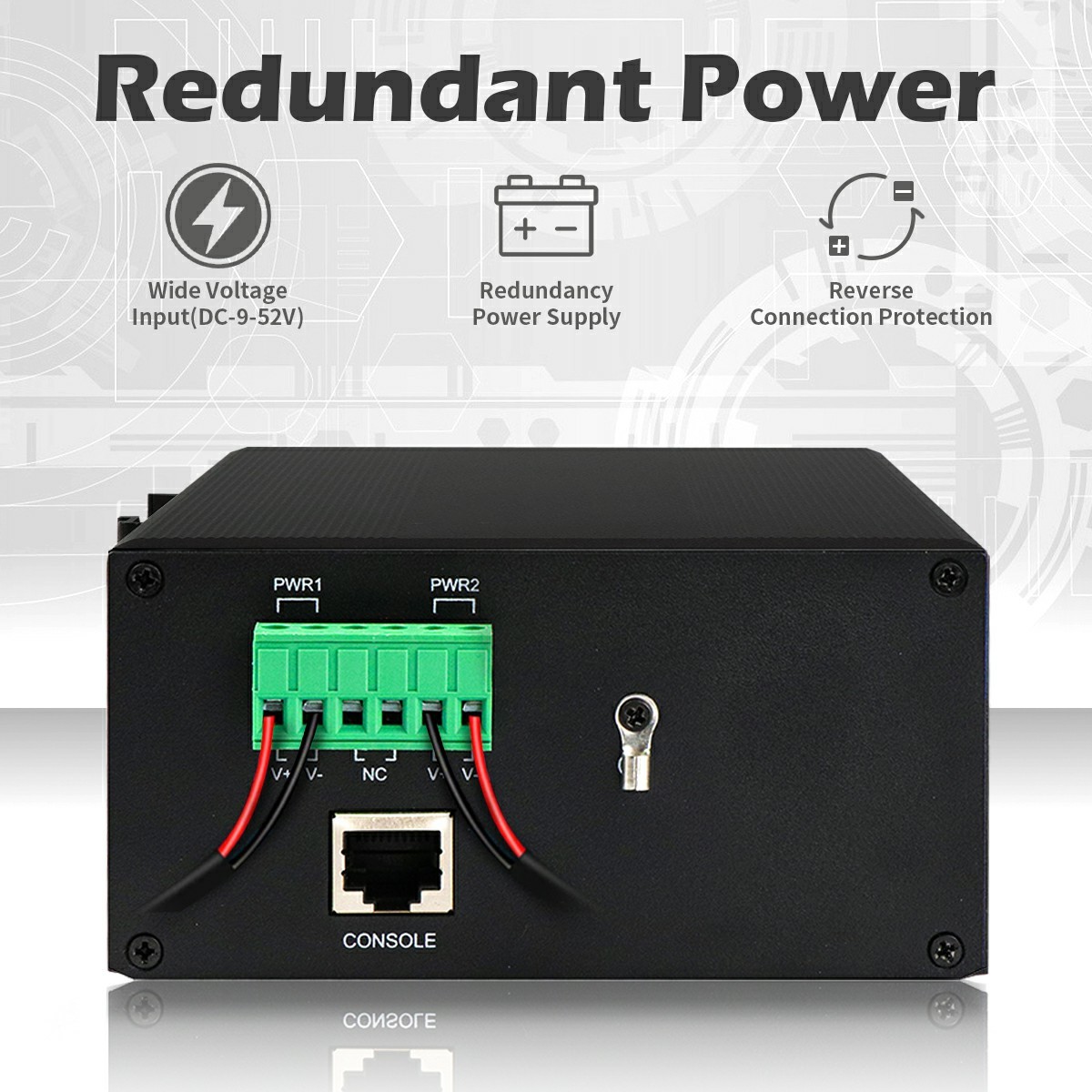

Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8)

(802.3at standards required special instructions)

Environment Working Temp:-40°~ 85°C ; Storage Temp:-40°~ 85°C;Working humidity:10%~90%, non-condensing; Storage humidity:10%~95%, non-condensing
Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class: IP40;

Dimension:158 x 114.8 x 60mm;

Mounting method: Din-rail mounting

Warranty Replacement within 1 year; 5 years repairing


Industry Standards

  • EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
  • EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,EN 61000-4-6 (CS) Level 3, EN 61000-4-8;
  • Traffic Control: NEMA-TS2;
  • Vibration:IEC 60068-2-6;
  • Freefall:IEC 60068-2-32C;
  • Shock:IEC 60068-2-27;
  • Rail Traffic:EN 50121-4




Gigabit SNMP CLI Industrial Managed Fiber Switch 14 Port POE 240W 0



Package And Delivery

Selling Units: Single item

Single Package Size:29*21.5*6cm

Single Gross Weight:0.65kg

Package Type:Shipping dimension for 1pc 29*21.5*6cm

One unit device and one user manual are inside one box, sealed and well protected.

20pcs /carton, the carton dimension is 55.5*40*43cm


Lead Time

Quantity(Pieces) 1-100 >100
Time(days) 4 Negotiable


Our Advantages

  1. Fast dispatch, it usually takes 2~4 working days to get the order ready.
  2. Easy to customize: we support printing your logo/model name on the device even if it is an order for several pieces.
  3. We cater to many minor requirements to fulfill your needs.



Q:Do you accept sample order?
A: Yes. Sample order to check our services and quality.

Q:Tell me something about your packing.
A: It is neutral packing. If you have your own packing box, we support it.


Q: Does this managed switch include the power supply?

A: No, no power adapter is included.


Q: Is it a managed switch?

A: Yes, this is an L2 managed POE switch for industrial networks.
