Industrial Vlan Switch 8 Port POE Gigabit Smart Ethernet Managed Switch With 1 ST Port Din Rail Mounting
Introduction
IM-FP188GW series is the 10/100/1000 Mbps 8 Port Industrial Vlan Switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 8 RJ45 ports
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
1 x 1000Mbps ST fiber port
Spectification
| Product Name | Industrial Vlan Switch 8 Port POE Managed Switch With 1 ST Port (1F+8TP) |
| Model No. | IM-FP188GW-ST |
| Port |
1 x 1000Mpbs ST port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |

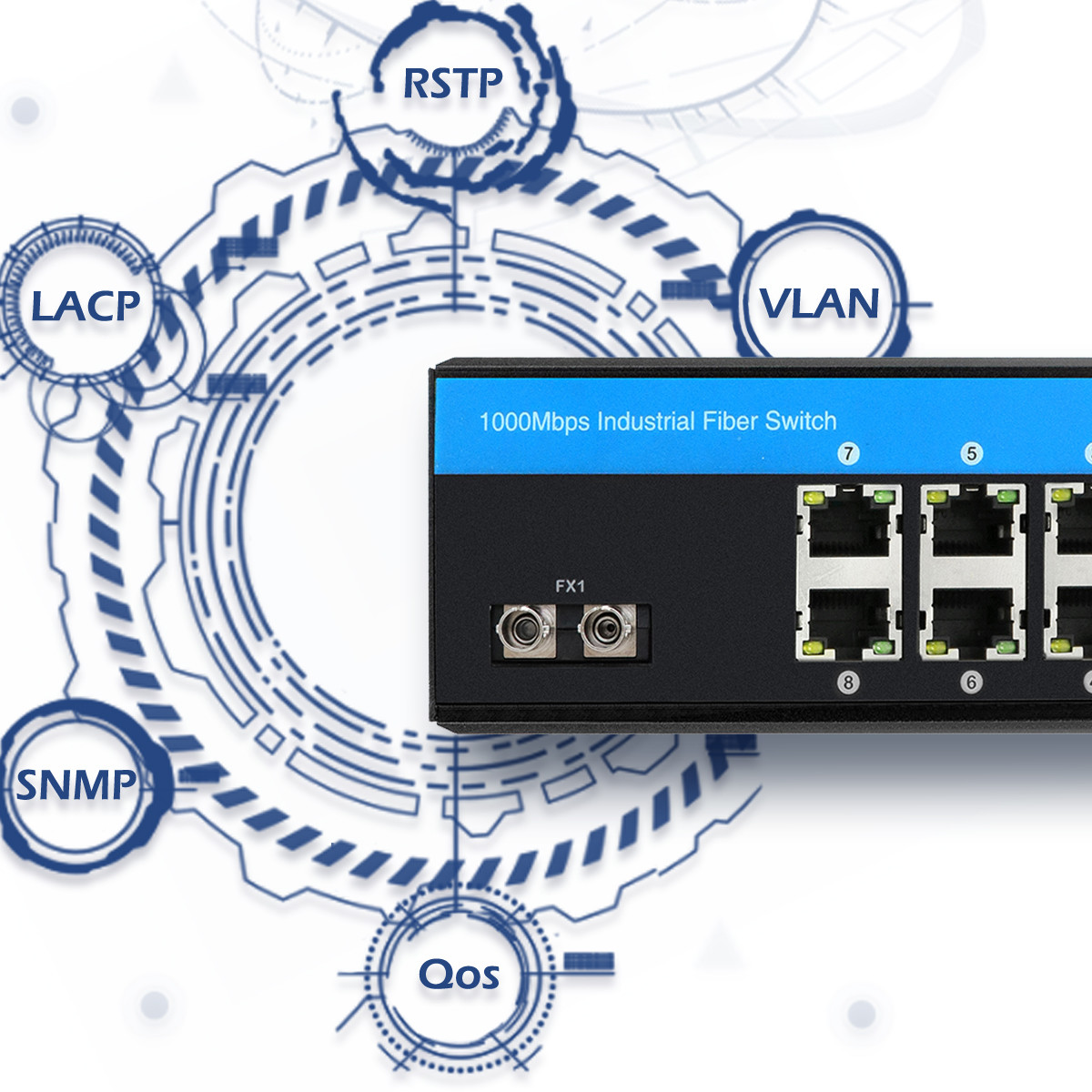

| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |

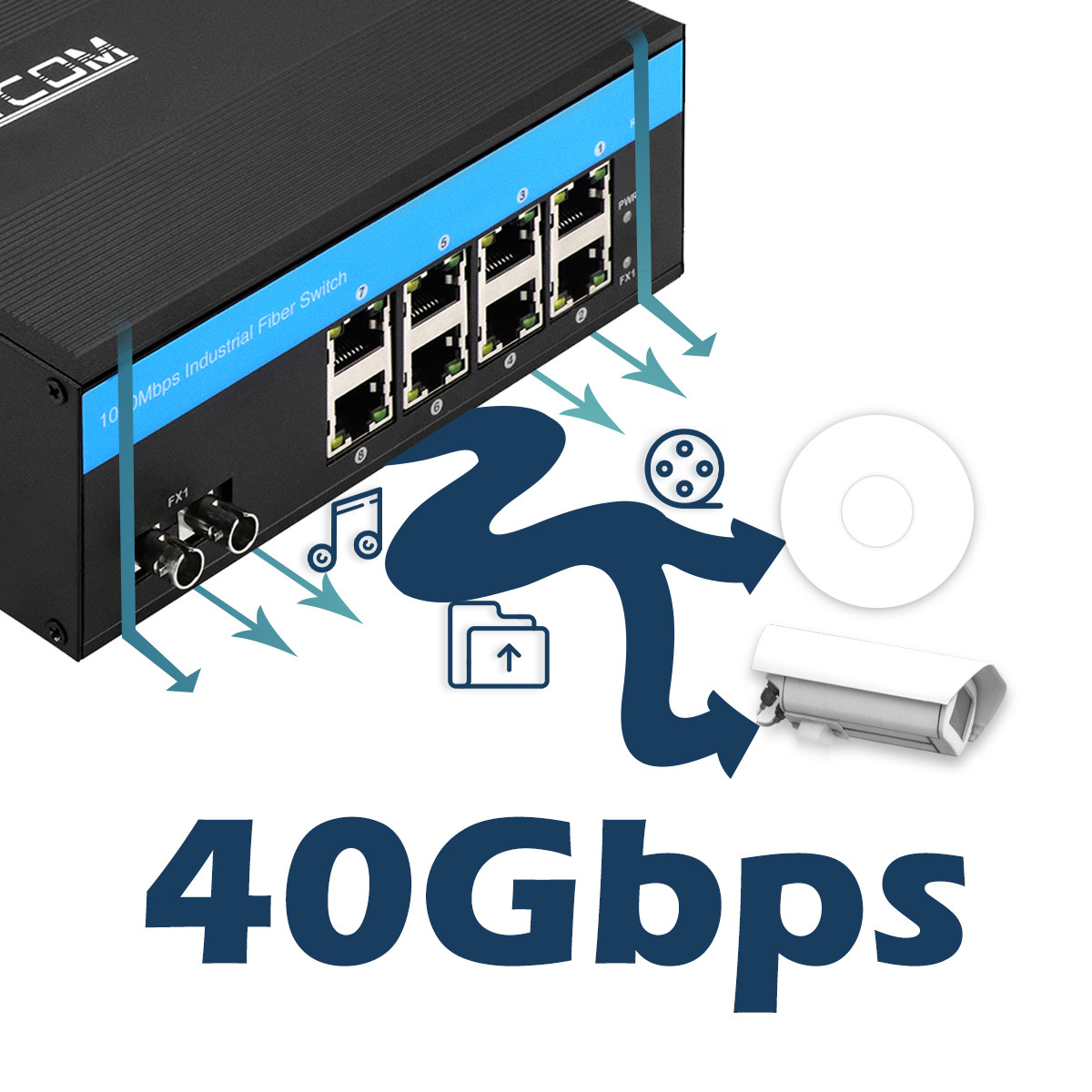

Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions) |
| Environment | Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |

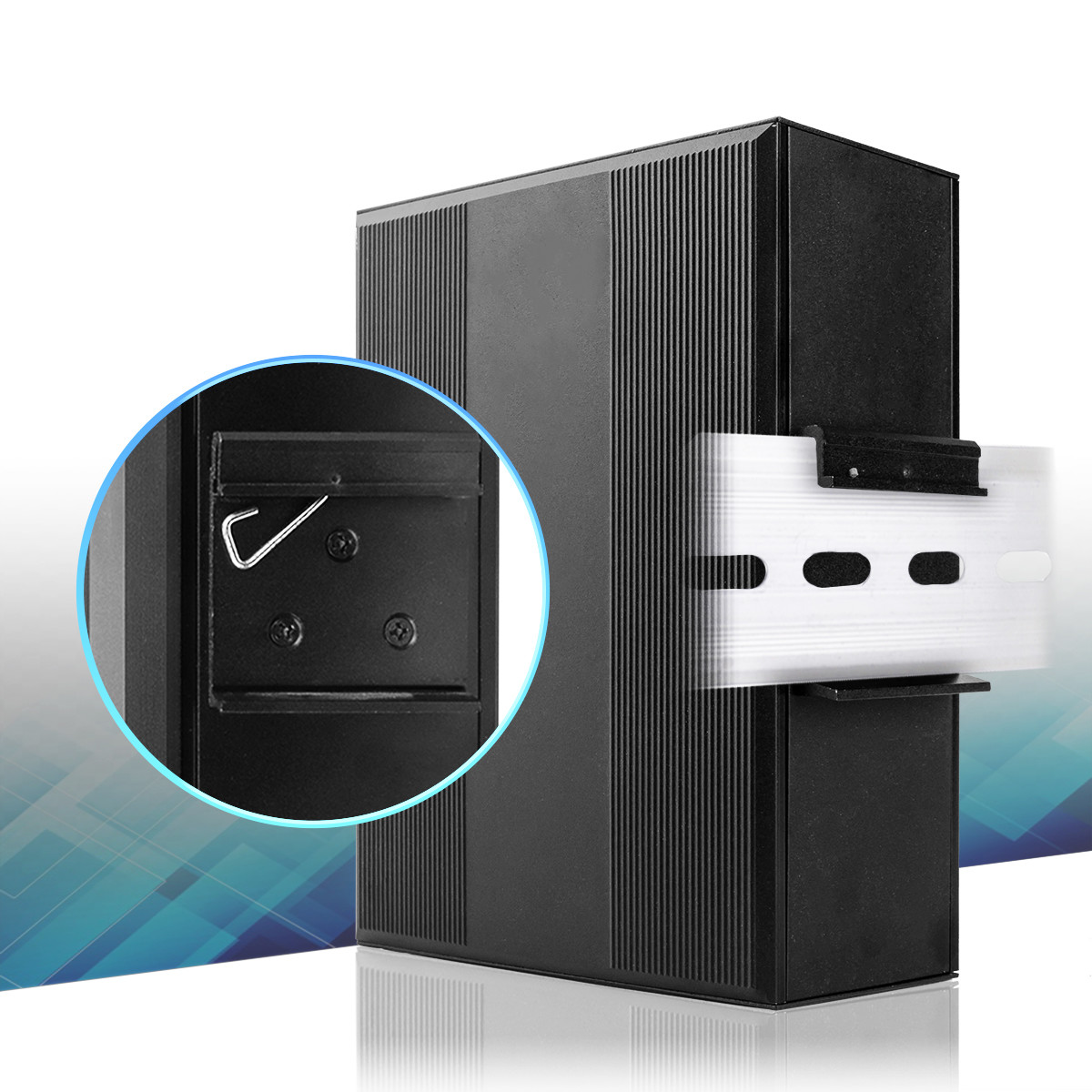

Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
| Warranty | Replacement within 1year; 5 years repairing |
Application
Package
1. One product, one console cable, one user manual, and one warranty card are inside one box.
2. Twenty pieces of boxes are in one carton.
FAQ
Q: How long can I get product samples?
A: Usually within 3 days, but all depends on your requirement.
Q: How about after-sales service?
A: We are 7*24 hours online and respond to users' field device problems in time.
Q: Are you a manufacturer or trade company?
A: We are a professional manufacturer, our main products include managed switches, POE switches, industrial fiber switches, fiber media converters, video converters and SFP modules.
Q: Does this managed switch include the power supply?
A: No, no power adapter is included.
Q: What power supply does this POE L2 Industrial Switch need?

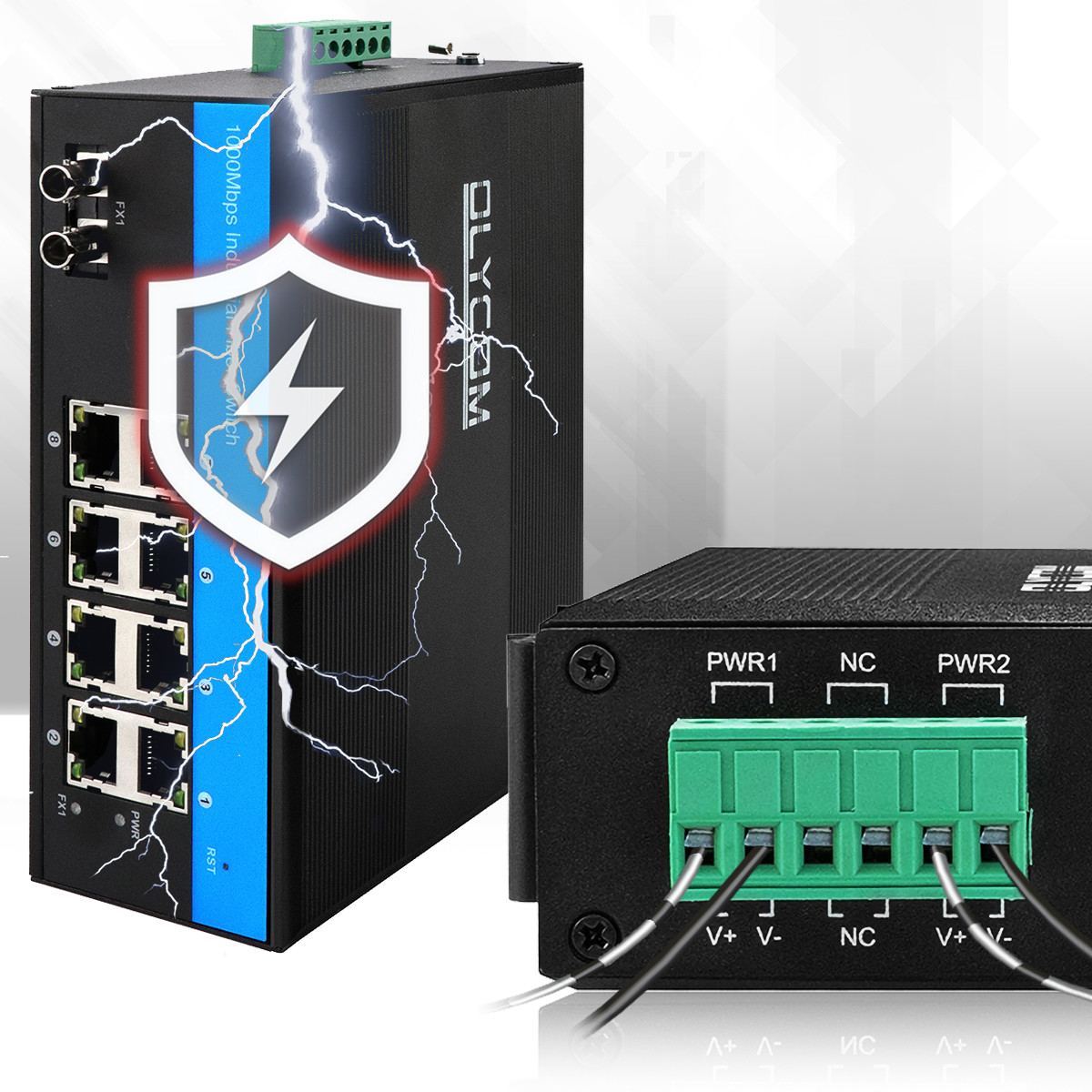

A: The input voltage is 9-52VDC. If the input voltage is not 48VDC-52VDC, it is a non-POE managed switch, it can also work. The power supply can be 12VDC 3A. If the input voltage is 48VDC-52VDC, it is a POE managed industrial switch.
Q: What are the POE standards?
A: This is an industrial POE+ switch. Each network port can reach 30W when the power supply is 48VDC 5A.
Q: Is it a managed switch?
A: Yes, this is an L2 managed POE switch for industrial networks.
