Outdoor PoE Managed Switch Gigabit Ethernet Network 2.5G Fiber Dual 48V Input

1pc
MOQ
Negotiable
Price
Outdoor PoE Managed Switch Gigabit Ethernet Network 2.5G Fiber Dual 48V Input
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Outdoor PoE Managed Switch 5 Port
RJ45 Port: 4 X 10/100/1000M RJ45 Ports
Fiber Port: 1 SFP Port, 100M/1G/2.5G
Power Terminal: Phoenix Terminal
POE Function: 802.3af/at
Shell: IP40 Protection Grade, Metal Shell
Highlight:

Phoenix Terminal Ethernet Network Switch

,

IP40 Protection Ethernet Network Switch

,

52V Managed Industrial Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, RoHS, ISO9001
Model Number: IM-FP144GW
Document: IM-WS080GE.pdf
Payment & Shipping Terms
Packaging Details: 1pc in box
Delivery Time: 3-5 working days
Payment Terms: T/T, PayPal
Supply Ability: 6500pcs per month
Product Description

Outdoor PoE Managed Switch 5 Port



Introduction to PoE Network Switch



IM-FP144GW series is the 10/100/1000 Mbps Outdoor Poe Switch enjoying below features

  • Comply with IEEE802.3af/at
  • Power on PoE IP cameras through the Ethernet cable
  • Simple construction
  • Power range up to 100 meters
  • Operating temperature -40℃ to + 75 ℃
  • Meet IP40 protection degree and EMC industrial grade requirements
  • DIN rail installation,
  • Pass through dangerous environmental certification and comply with FCC and CE standards

The reliable industrial grade design could ensure continuous and stable operation of the automation system.



Key Features of 2.5G Fiber Switch



  • Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.

  • IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports

  • 4 x 10/100/1000Mbps Auto-sensing RJ45 ports

  • 1 x  100/1000/2500Mbps SFP fiber port

  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard,half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • A store-and-forward switching mechanism
  • Operating environment temperature:-40 ° ~75 ° c
  • Support cable diagnosis and can locate the fault point
  • Support IEEE802.3az EEE (Energy Efficient Ethernet) Management, optimize power consumption
  • Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)
  • Support Qos, transport classification Qos, Cos, bandwidth control
  • (input/output direction), storm suppression ,differentiated services
  • Support IEEE802.1q VLAN,VLAN port ,based Mac VLAN,IP subnet VLAN,
  • Protocol VLAN,VLAN convert, MVR
  • Support dynamic IEEE802.3ad LACP link aggregation, static link aggregation
  • Support IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching
  • Support IGMP agent report, MLD snooping
  • Safety: based on port and Mac IEEE802.1X, RADIUS, ACL, TACACS+,HTTP/HTTPS, SSL/SSH v2
  • Support Cisco® like CLI, Web management, SNMP v1/v2c/v3, Telnet
  • Support software upgrade via TFTP and HTTP, firmware redundancy prevents upgrade failing
  • Support DHCP client/Relay/Snooping/Snooping option 82/Relay option 82
  • Support RMON, MIB II, mirror image, event log, DNS, NTP/SNTP, IEEE802.1ab LLDP
  • Support IPV6 Telnet server /ICMP v6, SNMP, HTTP, SSH/SSL, NTP/SNTP,TFTP, QoS, ACL.



Specification of Managed Ethernet Switch



Product Name 5 Port Outdoor Poe Switch (1F+4TP)
Model No. IM-FP144GW
Port

1 x 100Mpbs/1G/2.5G SFP port

SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km

4x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Standard IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az
VLAND ID 4096
Jumbo Frame 9.6KB
MAC Address Table Size 8K
Switching features

Transmission mode: storage and forward

System bandwidth: 56Gbps (non-traffic jam)

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network
Power supply

POE power supply input voltage: 48V (max 52V),

Single PoE power supply output power: 15.4W (port 1~8)

(802.3at standards required special instructions)

Environment

Working Temp:-40°~ 75°C

Storage Temp:-40°~ 85°C

Working humidity:10%~90%, non-condensing

Storage humidity:10%~95%, non-condensing

Industry Standards

EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4

Safety CE Mark ,commercial ; CE/LVD EN60950
Mechanical information

Shell:Corrugated metal shell; Safety class:IP40;

Dimension:158 x 114.8 x 60mm;

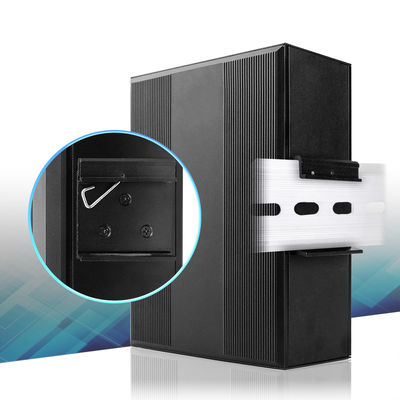

Mounting method: Din-rail mounting

Warranty Replacement within 1year; 3 years repairing



Application of Ring Managed Switch



Outdoor PoE Managed Switch Gigabit Ethernet Network 2.5G Fiber Dual 48V Input 0



Package



1. One product, one console cable, one user manual, and one warranty card are inside one box.

2. Twenty pieces of boxes are in one carton.



Outdoor PoE Managed Switch Gigabit Ethernet Network 2.5G Fiber Dual 48V Input 1



FAQ



Q: Are you a manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.



Q: Do you accept ODM or OEM?

A: Yes. We provide customized service for our clients.



Q: What is your minimum order quantity?

A: MOQ is one unit.



Q: Does this managed switch include the power supply?

A: No, no power adapter is included.



Q: What power supply does this POE L2 Industrial Switch need?

A: The input voltage is 9-52VDC. If the input voltage is not 48VDC-52VDC, it is a non-POE managed switch, it can also work. The power supply can be 12VDC 3A. If the input voltage is 48VDC-52VDC, it is a POE managed industrial switch.



Q: What are the POE standards?

A: This is an industrial POE+ switch. Each network port can reach 30W when the power supply is 48VDC 5A.



Q: What temperature range can this switch reach?

A: The operating temperature is -40~85℃ (-40~175°F)



Q: Is a small DIN rail included?

A: This is a DIN rail switch, but the DIN rail is not included.



Q: Is it a managed switch?

A: Yes, this is an L2 managed POE switch for industrial networks.
