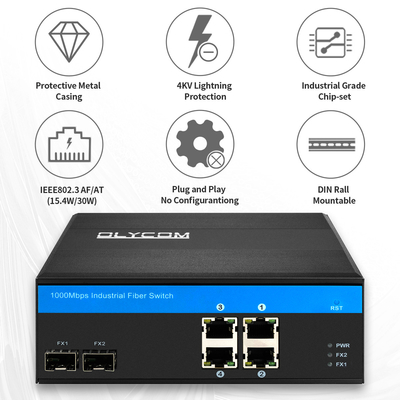

4 Port Gigabit DIN PoE Switch
Model name: IM-FP244GE, it is fine to use your model name.
Rate: 100/1000Mbps
POE Standard: ieee802.3 af/at, 120W POE budget
Power Input: Redundant DC input, 48V
This 4 port din POE Ethernet switch unmanaged also features below
-
simple construction, plug-and-play
-
power range up to 100 meters
-
operating temperature -40℃ to + 75℃
-
meet IP40 protection degree
-
comply with FCC and CE standards
The reliable industrial-grade design could ensure continuous and stable operation of the automation system
Key Features of Industrial PoE Switch

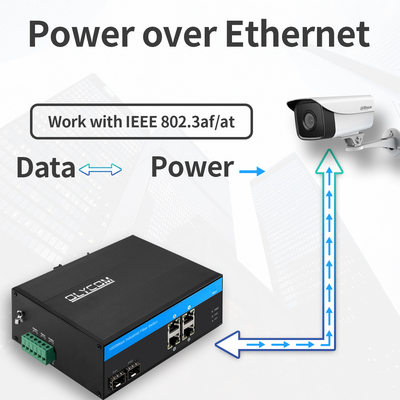

- Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
- IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
- 4x 10/100/1000Mbps Auto-sensing RJ45 ports
- 6KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
-
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
- Max power to 15.4W under af standard, 30W under at standard to each PoE port
-
A store-and-forward switching mechanism
-
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
Specification of PoE Fiber Switch
| Product Name |
10/100/1000Mbps Industrial POE Fiber Switch (2F+4TP) |
| Model No. |
IM-FP244GE |
| Port |
2x 1000Mpbs SFP ports
SM:1310nm/1550nm,20Km; 1490nm/1550nm,40~120Km
MM:1310nm, 2Km; 850nm, 500-meter
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features |
Transmission mode: storage and forward
System bandwidth: 12Gbps (non-traffic jam)
Packet Forwarding Rate: 8.928Mpps
MAC: 4K
Queue Buffer: 1.75M
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber |
| Power supply |
POE power supply input voltage: 48V (max 52V)
Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W
PoE output voltage: 48V
|
| Environment |
Working temperature: -40～75°C
Storage temperature: -40～85°C
Working humidity: 10%～90%, non-condensing
Storage humidity: 10%～95%, non-condensing
|
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8
Traffic Control: NEMA-TS2
Vibration: IEC 60068-2-6
Freefall: IEC 60068-2-32
Shock: IEC 60068-2-27
Rail Traffic: EN 50121-4
|
| Safety |
CE Mark, commercial
CE/LVD EN60950
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 158 x 115x 60mm
Mounting method: Din-rail/Wall mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Packing List
The standard packing usually contains a 4 port POE switch, a warranty card and a user manual.
Packing box dimension for 1pc: 25.3*20.8*8cm
Packing: 20pcs in a packing box of 67*33*47cm dimension.
Application of CCTV PoE Switch
FAQ
What is the PoE budget?
A: The standard PoE output is 30W per port.
Take IM-FP288GW for example, it has 8 PoE ports, so the budget is 30W/port*8 ports=240W.
We can also support 60W output if it is required, please confirm with us.
How will you send my goods?
A: We will send the goods by DHL, UPS or FEDEX, please check the delivery details by the tracking number.
Is it possible to print my logo?
A: Yes, it is usually on the top panel of the device.
Does the unit price include the fiber transceiver and power adapter?
A: No, it is an industrial standard, but we have different options for both.
What is the PoE output voltage?
A: Its DC48V for 802.3af/802.3at compliant powered devices such as PoE cameras or PoE routers.
If the PD takes 24V power, then please use a PoE splitter to connect our switch and powered device.
Do you accept sample order?
A: Yes. Sample order to check our services and quality.
