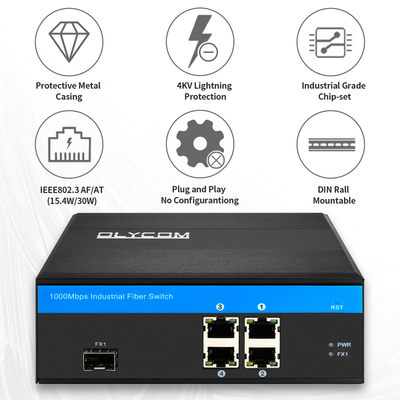

Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot

1Pcs
MOQ
Negotiable
Price
Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot
Features Gallery Product Description Request A Quote
Features
Specifications
POE Budget: 120W
POE Standard: 15.4W/30W
Dimension: 158*115*60mm
Weight: 0.9kg
Voltage: DC48V Input
Brand: Support OEM
Highlight:

SFP Slot POE Fiber Switch

,

5 Port POE Fiber Switch

,

120W Unmanaged Fiber Switch

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: IM-FP144GE
Payment & Shipping Terms
Packaging Details: 1 pair in a box, 0.9kg(G.W)
Delivery Time: 4~8 working days
Payment Terms: T/T, Paypal
Supply Ability: 3000Pcs per month
Product Description

4 Port PoE Gigabit Ethernet Switch



Key Features of Industrial PoE Switch



  1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
  2. IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
  3. 4 x 10/100/1000Mbps Auto-sensing RJ45 ports
  4. 1 x 1000Mbps SFP fiber ports
  5. 6 KV Ethernet surge protection, adapt to a harsh outdoor environment
  6. Support Auto MDI/MDIX

This 4 port POE switch also features

  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard

  • IEEE 802.3 10Base-T and IEEE 802.3u 1000Base-TX compliant

  • Max power to 15.4W under af standard, 30W under at standard to each PoE port
  • Detect the PoE models of electrical equipments.
  • A store-and-forward switching mechanism

  • power range up to 100 meters

  • comply with FCC and CE standards

  • ensure continuous and stable operation of the automation system



Specification of CCTV PoE Switch



Product Name 10/100/1000Mbps Industrial POE Fiber Switch (1F+4TP)
Model No. IM-FP144GE
Port

1 x 1000Mpbs SFP port

SM:1310nm/1550nm,20Km1490nm/1550nm,40~120Km

MM:1310nm, 2Km; 850nm, 500-meter

4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

Switching features

Transmission mode: storage and forward

System bandwidth: 20Gbps (non-traffic jam)

Forwarding rate: 14.88Mmps

MAC: 4K

Packet buffer size: 1.75Mb

Network media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)

SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km

LEDs Power, network, fiber
Power supply

POE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W (port 1~4)
Total budget: 120W

PoE output voltage: 48V



Environment

Working temperature:-40°C~75°C

Storage temperature:-40°C~85°C

Working humidity:10%~90%,non-condensing

Storage humidity:10%~95%,non-condensing

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS: EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration: IEC 60068-2-6

Freefall: IEC 60068-2-32

Shock: IEC 60068-2-27

Rail Traffic: EN 50121-4

Safety

CE Mark, commercial

CE/LVD EN60950

Mechanical information

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 158 x 115x 60mm

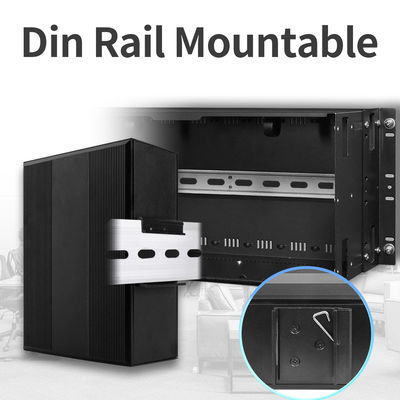

Mounting method: Din-rail/Wall mounting

Warranty Replacement within 1 year; 3 years repairing



Application of Gigabit Fiber Switch



Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot 0

Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot 1



More product photos



Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot 2

Gigabit 5 Port Ethernet POE Fiber Switch 120W Budget Unmanaged Industrial SFP Slot 3



OEM/ODM

  • OEM and ODM service are optional.
  • We are fully connected with our customers, even if just for a single purchase.
  • The Customer information will be highly confidential, and relevant cooperation information will not be leaked to a third party without the customer’s permission.
  • It starts from the promise of professional products and services, but our work goes far beyond. It is not only fiber optic connection, but also human connection.



The customization mainly covers industrial manufacturing and product features.

Industrial manufacturing

  • Add customer’s logo/model name on the device/packing box
  • Use customer’s product enclosure or materials
  • Change the PVC mask



Product features

Design some specific features for a project

Do some changes to the available functions



Above listed is just about some commonly asked points, please visit this link or talk with us for more information.
