Manageable Ethernet Poe Switch 48v 8 Port Gigabit 802.3af/at 240w Smart Managed Poe Network Switch
Introduction of Manageable Ethernet Poe Switch
IM-FP088GW series is the 10/100/1000 Mbps Smart Managed Poe Network Switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Manageable Ethernet Poe Switch
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 6 RJ45 ports
8 x 10/100/1000Mbps Auto-sensing RJ45 ports
Spectification of Manageable Ethernet Poe Switch
| Product Name | 8 Port Smart Managed Poe Network Switch (8TP) |
| Model No. | IM-FP088GW |
| Port |
8x 10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Switching features |
Transmission mode:storage and forward System bandwidth:40Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network |
| Power supply |
POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~8) (802.3at standards required special instructions) |
| Environment | Working Temp:-40°～ 75°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8; Traffic Control:NEMA-TS2; Vibration:IEC 60068-2-6; Freefall:IEC 60068-2-32; Shock:IEC 60068-2-27; Rail Traffic:EN 50121-4 |
| Safety | CE Mark ,commercial ; CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell; Safety class:IP40; Dimension:158 x 114.8 x 60mm; Mounting method:Din-rail mounting |
| Warranty | 3 years |
Application of Manageable Ethernet Poe Switch
Package of Manageable Ethernet Poe Switch
1. One product, one console cable, one user manual, and one warranty card are inside one box.
2. Twenty pieces of boxes are in one carton.
FAQ of Manageable Ethernet Poe Switch
Q: Does this managed switch include the power supply?
A: No, no power adapter is included.
Q: What power supply does this POE L2 Industrial Switch need?
A: The input voltage is 9-52VDC. If the input voltage is not 48VDC-52VDC, it is a non-POE managed switch, it can also work. The power supply can be 12VDC 3A. If the input voltage is 48VDC-52VDC, it is a POE managed industrial switch.
Q: What are the POE standards?
A: This is an industrial POE+ switch. Each network port can reach 30W when the power supply is 48VDC 5A.
Q: What temperature range can this switch reach?
A: The operating temperature is -40~75℃ (-40~175°F)
Q: Is a small DIN rail included?

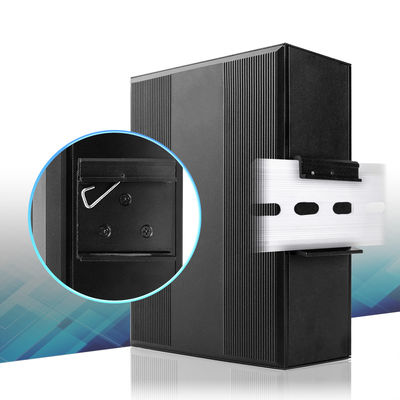

A: This is a DIN rail switch, but the DIN rail is not included.
Q: Is it a managed switch?
A: Yes, this is an L2 managed POE switch for industrial networks.
