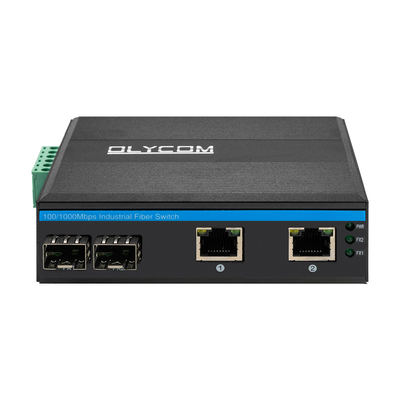

DC48V Industrial 2 Port POE Fiber Switch With 2 Gigabit SFP For Security System

DC48V Industrial 2 Port POE Fiber Switch With 2 Gigabit SFP Port For Security System

Introduction
IM-FP222GE series is the 10/100/1000 Mbps industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ℃ to + 85 ℃, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features

1. Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
2. IEEE 802.3af/at power on to 1 ~ 2 RJ45 ports
3. 2x 10/100/1000Mbps Auto-sensing RJ45 ports
4. 2x 1000Mbps SFP fiber ports
5. 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
6. Support Auto MDI/MDIX
7. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
8. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
9. Max power to15.4W under af standard, 30W under at standard to each PoE port
10. Detect the PoE models of electrical equipments.
11. A store-and-forward switching mechanism
12. Operating environment temperature:-40 ° ~85 ° c

Product Details

Shell: Corrugated metal shell

Safety class: IP40

Dimension: 113.8 x 93 x 34.9mm

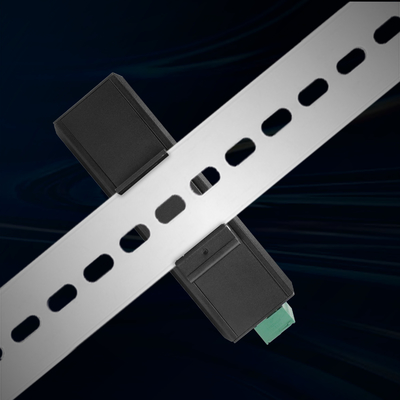

Mounting method: Din-rail mounting

LEDs: Power, network, fiber

Environment

Working temperature:-40°～ 85°C

Storage temperature:-40°～ 85°C

Working humidity:10%～90%,non-condensing

Storage humidity:10%～95%,non-condensing

Specification

Industry Standards

EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8

Traffic Control: NEMA-TS2

Vibration:IEC 60068-2-6

Freefall:IEC 60068-2-32

Shock:IEC 60068-2-27

Rail Traffic: EN 50121-4

FAQ

Q: What we do
A: We manufacture and market fiber optic connectivity devices. We provide solutions and services of fiber to copper media conversion, Ethernet networking, and CCTV video surveillance. We serve with precisely engineered equipment and professional dedicated care whether you are in the business of telecom or CCTV, reselling, or project contracting.

Q: Where we reach
A: While advanced fiber optic transmission technology breaks the limits and gets digital and analog signals connected over 120 kilometers, it also connects us to more than 120 countries.

Q: How can we guarantee the quality?

A: Always a pre-production sample before mass production; Always final Inspection before shipment; We absolutely never use old and refurbished materials.

Q: Are you a manufacturer or trading company?

A: We are a manufacturer in Shenzhen, China, focusing on fiber optical equipment products. We insist on R&D, with over 20 -years of professional experience in the area.

Q: Do you provide OEM service?

A: Yes, we provide OEM service. If you have requirements about the customized product, we also provide it.

Q: What is the warranty time?

A: It is usually valid for one year, and 5 years for industrial products. Technical support will be offered free.
