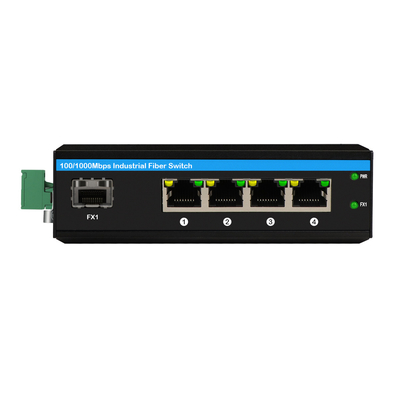

4 Port PoE SFP Gigabit Ethernet Switch Unmanaged
Basic Information of Industrial Network Switch
-
IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports
-
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable
- Max power to15.4W under af standard, 30W under at standard to each PoE port
-
4x 10/100/1000Mbps Auto-sensing RJ45 ports
- Detect the PoE models of electrical equipments.
- A store-and-forward switching mechanism
-
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
-
6 KV Ethernet surge protection
Port: 1 SFP Fiber to 4 Ethernet
Installation: DIN rail or wall mounting
Name: 10/100/1000Mbps din-rail POE unmanaged Switch
Size: 114*93*35mm
Operating temperature: -40 ℃ to + 75 ℃
Specification of Industrial PoE Switch
| Port |
1 x 100/1000Mpbs SFP port
SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~120Km
MM: 1310nm, 2Km; 850nm, 500m
4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
|
| Switching features |
Transmission mode: storage and forward
System bandwidth:10Gbps (non-traffic jam)
|
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
|
| LEDs |
Power, network, fiber
PWR: power
Fiber: FX1
Copper orange: PoE indicator
On:PoE is working
Off:PoE is not working
Copper green: Link/Act indicator
On:transmission is normal
Off:transmission is NOT normal
|

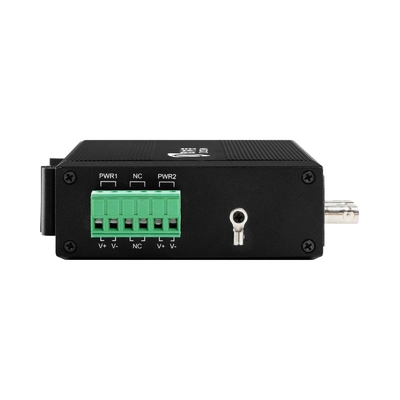

| Power supply |
POE power supply input voltage: 48V(max 52V)
Single PoE power supply output power: 30W(port 1~4)
Total budget: 120W
PoE output voltage: 48V
|
| Industry Standards |
ESD: IEC61000-4-2, ±15KV air, ±6KV contact
EFT: IEC61000-4-4, General ±6KV
Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
|
|
Certification
|
CE-EMC: EN 55032:2015+AC:2016+A1:2020+A11:2020
EN 55035:2017+A11:2020/EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3:2013/A2:2021/AC:2022
CE-LVD: EN IEC 62368-1:2020+A11:2020
FCC: 47 CFR FCC Part 15 Subpart B(Class B)ANSI C63.4:2014
|
| Mechanical information |
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method: Din-rail mounting
|
| Warranty |
Replacement within 1 year; 3 years repairing |
Application of 4 Port PoE Switch
Packing Box
About PoE
- It supports providing max 30W per POE port for IP cameras.
- 1/2 (V+),3/6 (V-) pin assignment by default
- The POE switch can detect powered device power automatically.
- The power adapter should be industrial grade.
FAQ
Does the fiber port support 100M speed?
A: Yes, for 100M models, it just supports 100M modules.
For Gigabit models, the fiber port is 100M/1000M auto-adaptive, you can insert 155Mb/s or 1.25Gb/s modules, both will work.
Can you help write the label content?
A: Yes,please let us know if you need to put your model name/logo/description on the label.
The standard language is English.
If this is about some different languages like Korean, Italian or Russian, please just send the accurate format, we will copy and paste.
Do you support customization of front PVC label?
A: Yes, this is also one of our customization services.
Please let us know the format you need, we will design it and send an example photo for your confirmation.
After that, we will do the mass production.
