100/1000Mbps din-rail Gigabit fiber optic switch unmanaged DC24V dual input
Introduction
IM-FS220GE series is the 10/100/1000Mbps industrial fiber switch with following features
Operating temperature-40 ℃ to + 85 ℃
Dual power input
IP40 protection degree
DIN rail installation
Compliant with CE, FCC and EMC standards(see below specific test)
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
Key Features

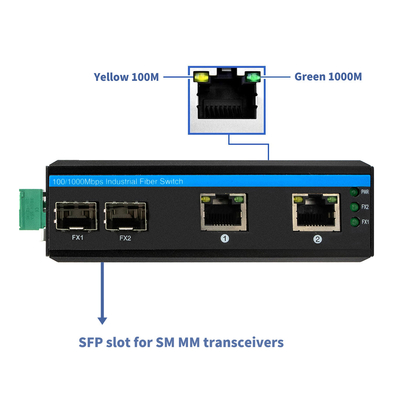

2x 1000Mbps SFP fiber ports
4 KV Ethernet surge protection, adapt to a harsh outdoor environment
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
Support Auto MDI/MDIX
Specification
| Product Name | 10/100/1000Mbps Industrial Fiber Switch (2F+2TP) |
| Model No. | IM-FS220GE |
| Port |
2 x 1000Mpbs SFP ports SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 2x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode:storage and forward System bandwidth:8Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 9-52V No-load power:5W Reverse connection:support |
| Environment |
Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Safety |
CE Mark ,commercial CE/LVD EN60950 |
| Mechanical information |
Shell:Corrugated metal shell Safety class:IP44 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting |
| Warranty | Replacement within 1year; 5 years repairing |
Application

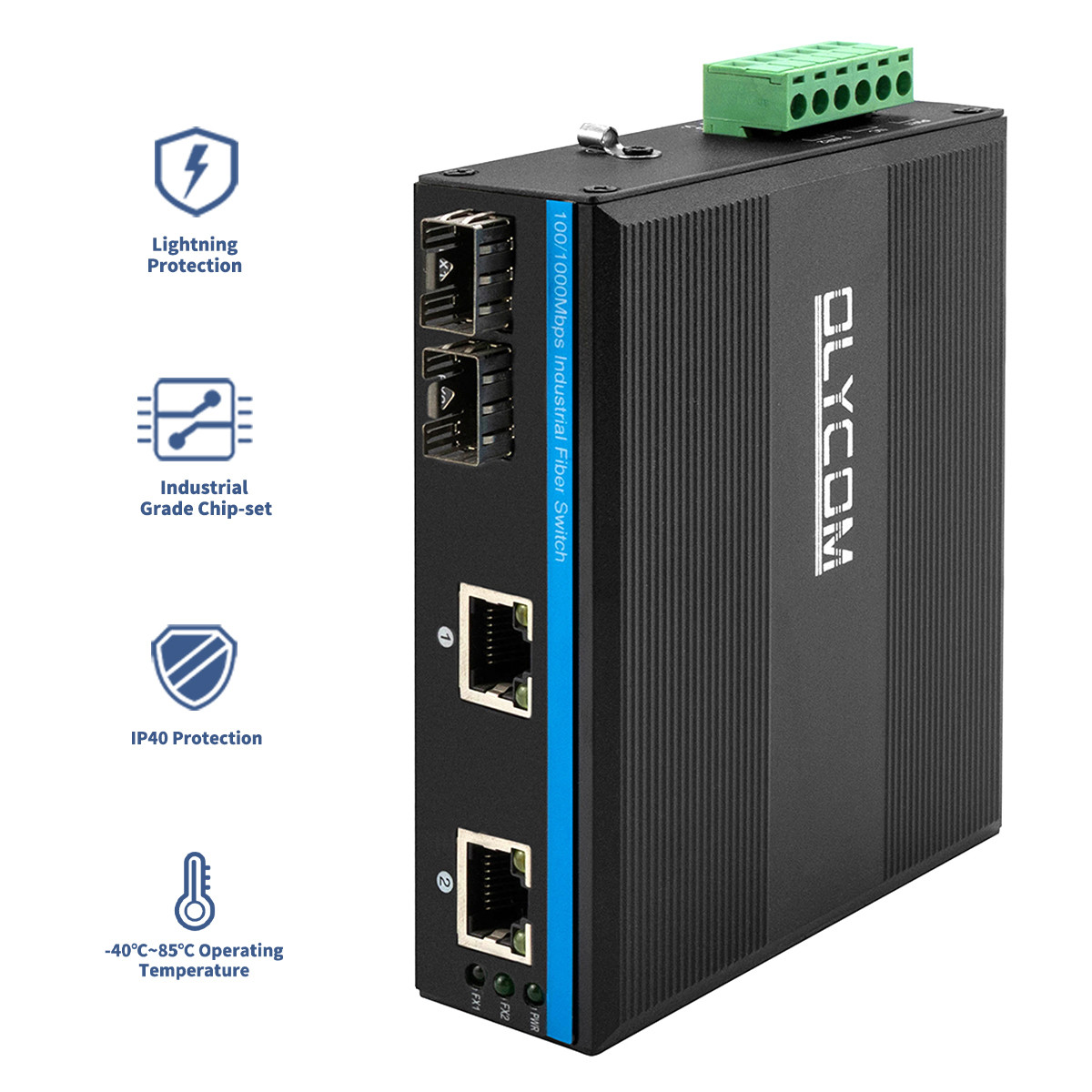

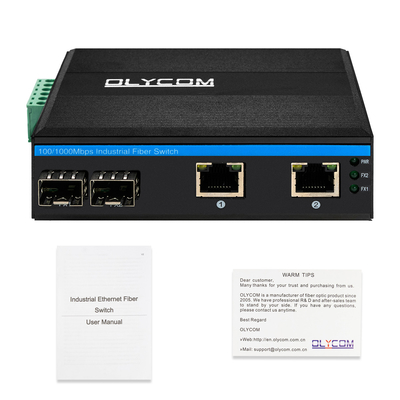

More Product Images
