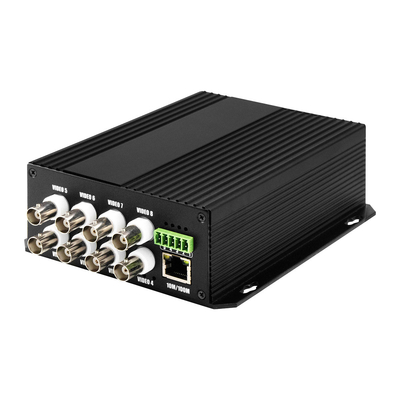

8Ch Video Bidi Audio Data Reverse Contact Closure 10/100M Ethernet Fiber Converter
Product Model: OM610-8V↑2A↑↓ 2K↓2D↑↓1EWT/R
It is fine to use your model name and print your logo on the devices.
Introduction
Key Features
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic Fiber |
Single mode (9/125um) 20Km to 80Km Multimode (50/125um) 1Km, ( 62.5/125um) 500m |
| Receiving Sensitivity | -30dBm |
| Interface | FC/ST/SC |
| Video | |
| Bandwidth | 8MHZ |
| Compatible Systems | NTSC/PAL/SECAM |
| Impedance/Voltage | BNC 75Ω (unbalanced) / 2.0Vp-p |
| Differential Gain | < ±1% |
| Differential Phase | < ±1 |
| S/N ratio | >60dB(weighting)(8 bit) |
| Interface | BNC |
| Data | |
| Data Protocol | RS232, RS422, RS485, Manchester, BIPHASE data |
| Bandwidth | 0~300kbps |
| Error rate | 10-9 |
| Interface | Phoenix terminal |
| Audio | |
| Impedance / Voltage | 600ohm(unbalanced) / 2.0Vp-p |
| Frequency Response | 10~20kHz |
| Total Harmonic Distortion | <0.05% |
| Differential Phase | < ±1 |
| S/N ratio | >95dB(weighting) |
| Interface | Phoenix terminal |
| Sample Rate | 48k Hz |
| Resolution | 16 bits |
| Contact Closure | |
| Signal Input | Alarm, Binary input, support TTL, RS-232/422/485 or passive switch button |
| Signal Output | Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output |
| Interface | Phoenix terminal |
| Ethernet | |
| Work Mode | Full duplex / half duplex, autosensing |
| Network Speed | 10/100Mbps, autosensing |
| Interface | RJ45 |
| Chassis and Cards | |
| Chassis Slots Quantity | 18 slots |
| Compatibility(with cards) | 1~4ch cards(18pcs); 8ch cards(9pcs) |
| Flexibility | Supports mixed installation of different configurations |
| Cards |
In 4ch PCB(153x100x10mm) or 8ch PCB size (153x100x25mm) configurations which require larger size can’t be used with this system |
| Electrical. Environmental. Mechanical | |
| Operating Voltage | Standalone:220VAC to 5V/12VDC, Rack: dual 220V/-48V AC, card: powered by chassis |
| Operating Temperature | -35℃～+75℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 0~95% non-condensing |
| Dimension And Weight | Standalone and card: depends on different configurations, Chassis: 19”3U |
Application
Ordering Details
| OM610-1V↑1D↓1P1E WT/R | 1ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-1V↑2D↓2A↑1E WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-1V↑2D↓2A↑2K↑WT/R | 1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx |
| OM610-2P1EWT/R | 2ch Telephone + 1ch 10/100M Ethernet |
| OM610-2V↑1D↓1P1E WT/R | 2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone. |
| OM610-2V↑2D↓2A↑1E WT/R | 2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet |
| OM610-4EWT/R | 4ch 10/100M Ethernet |
| OM610-2D↓8PWT/R | 2ch RS485 data Rx + 8ch Telephone |
| OM610-20D↓WT/R | 20ch RS485 data Rx |
| OM610-1V↑↓1D↑↓1A↑↓1K↑↓WT/R | 1ch bi-di video + 1ch bi-di RS485 data + 1ch bi-di audio + 1ch bi-di contact closure |
| OM610-2D↑↓4A↑↓1E WT/R | 4ch bi-di audio + 2ch bi-di RS485 data + 1ch 10/100M Ethernet |
| OM610-1V↑1D↑↓3A↑2K↑↓WT/R | 1ch video Tx + 2ch bi-di RS485 data + 3ch audio Tx + 1ch bi-di contact closure |
Our Advantage

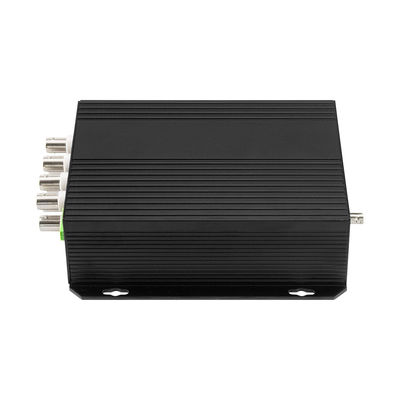

More Product Images
