BNC Port 3G-SDI Video Optical Transmitter And Receiver With 2 SDI Output DC12V SFP Slot

1 pair
MOQ
Negotiable
Price
BNC Port 3G-SDI Video Optical Transmitter And Receiver With 2 SDI Output DC12V SFP Slot
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: SDI Video To Fiber Media Converter
Voltage: 12V 1A
Wavelength: 1310nm/1550nm
Dimension: 117mm*80mm*22mm
Weight: 0.35kg Per Piece
Rate: 3Gbps
High Light:

3G-SDI Video Optical Transmitter And Receiver

,

Video Optical Transmitter And Receiver DC12V

,

3G-SDI Video Fiber Transmitter And Receiver

Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: Olycom
Certification: CE RoHS FCC
Model Number: OM615-3GSDIWT/R
Payment & Shipping Terms
Packaging Details: 1 pair in a box, 0.7kg(G.W)
Delivery Time: 3~7 working days
Payment Terms: T/T, Paypal
Supply Ability: 1000 pair/month
Product Description

2 SDI Output DC12V BNC Port 3G-SDI to SFP fiber optic converter



Introduction



  1. Olycom provides different video data, contact closure, audio, phone and Ethernet to fiber media converters.
  2. Featuring high quality transmission of high resolution content, this 3G-SDI video digital fiber optic extender offers up to 40km extension on WDM 1310/1550nm fiber, and it automatically recognizes and transmits SDI, HD-SDI, 3G-SDI signals.



  • Extend SDI, HD-SDI, and 3G-SDI signals over a single fiber via 3G video SFP
  • Support multi-rate SDI at rates up to 2.97 Gbps
  • Comply with SMPTE 259M, 292M, 424M and ITU digital video standards
  • Input equalization and re-clocking on buffered outputs Real-time status LED indicators
  • Redundant output for previewing on a local monitor



Specification



Optical
Wavelength 1310nm/1550nm
Fiber Type and Distance multimode (50/125um) 5Km, ( 62.5/125um) 2Km single mode (9/125um) 20Km / 40Km
Transmitting Power -5dBm to -10dBm
Receiving Sensitivity -26dBm to -30dBm
Return Loss > 14dB
Jitter < 0.2UI
Interface LC



Video
Signal type HD-SDI, SDI, and 3G-SDI digital video signals
Gain Unity
Resolution 8 or 10 bits, automatic
Data rates 270 Mbps, 1.485 Gbps, 2.970 Gbps
Operation standards SMPTE 259M-C, SMPTE 292M, SMPTE 424M, ITU-R BT.601, ITU-R BT.1120
Auto data rate lock Yes



Video Input - Transmitter
Number/signal type 2 single link SDI, HD-SDI, or 3G-SDI digital component video 1 for Tx, 1 for local preview
Interface 2 female BNC
Impedance 750ohms
Data rates 19 Mbps to 2.97 Gbps
Nominal level 0.8 Vp-p
Minimum/maximum levels 0.5 V to 1.0 Vp-p
Return loss ≥15 dB @ 5 MHz to 1.5 GHz, ≥10 dB @ 1.5 GHz to 3.0 GHz
Input cable equalization Automatic for up to -30 dB of cable loss



Video Output - Receiver
Number/signal type 2 single link SDI, HD-SDI, or 3G-SDI digital component video 1 for Rx, 1 for backup / share
Interface 2 female BNC
Impedance 750ohms
Re-clocking Automatic for 270 Mbps, 1.485 Gbps, 2.97 Gbps, or bypassed for unrecognized rates
Nominal level 0.8 Vp-p
Minimum/maximum levels 0.5 V to 1.0 Vp-p
Return loss <-25 dB @ 100 MHz



Electrical. Environmental. Mechanical
Voltage DC12V1A
Power Consumption 12W
Operating Temperature -35℃~+75℃
Storage Temperature -40℃~85℃
Humidity 5~95% non-condensing
Dimension 117 mm L*80 mm W*22 mm
Weight 0.35KG
EMI/RFI FCC Part 15 Class A, EU EMC indication
MTBF >100000 hours



Application



  1. Television Studio
  2. Live Broadcast
  3. HD CCTV

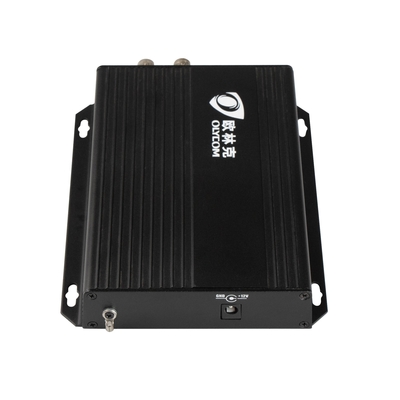

BNC Port 3G-SDI Video Optical Transmitter And Receiver With 2 SDI Output DC12V SFP Slot 0



Ordering Details



OM615-3GSDIWT/R-LC20 3G-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI/3G-SDI video and embedded signals, with 3G video SFP, single mode, LC connector, 20Km



OM615-3GSDIWT/R-LC40

3G-SDI Fiber Optic Video transmitter and receiver, for SDI/HD-SDI/3G-SDI video and embedded signals, with 3G video SFP, single mode, LC connector, 40Km





Diagram

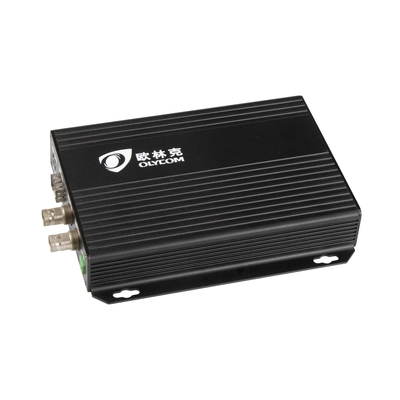

BNC Port 3G-SDI Video Optical Transmitter And Receiver With 2 SDI Output DC12V SFP Slot 1



Product Images

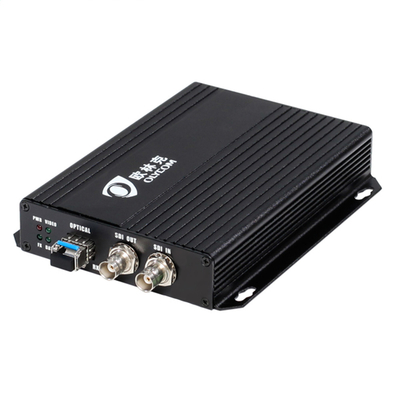

BNC Port 3G-SDI Video Optical Transmitter And Receiver With 2 SDI Output DC12V SFP Slot 2

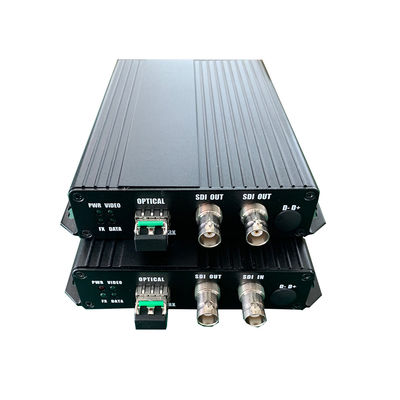

BNC Port 3G-SDI Video Optical Transmitter And Receiver With 2 SDI Output DC12V SFP Slot 3
