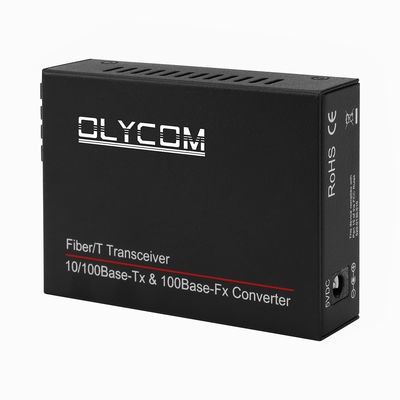

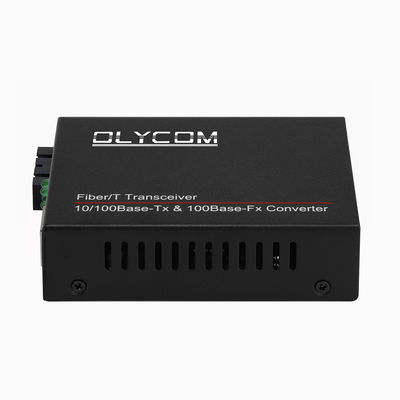

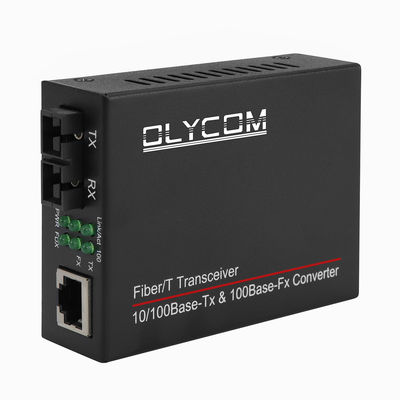

10/100M Ethernet Unmanaged PoE Media Converter
TA210-PSE-FE 10/100 Mbps POE fiber to Ethernet media converter
- provides IEEE 802.3af Power Sourcing Ethernet (PSE)
- utilizes fiber optics to extend the physical distance
- 5Km max. on MMF and 100Km max. on SMF
- 100BASE-FX FIBER to 10/100BASE-T COPPER Ethernet conversion
Key Features
- Auto-MDI/MDIX copper RJ45 port
- 1600byte super data packet transmission
- Full duplex-flow control, half duplex-back pressure
- Full-positioned LEDs to indicate power and network status
Specification
| Standard |
IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree, IEEE802.3af PoE/PSE |
| 10/100BASE-T |
STP or UTP Category 5/5e/6 cable (Max. 100m) |
| 100BASE-FX |
50/125um(5km), 62.5/125um MMF (2km), 9/125um SMF (20/40/60/80/100/120km) |
|
Conversion Mode
Delay Time
|
Store-and-Forward<10us
straight-through<0.9us
|
| Flow control |
Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port |
Auto-MDI/MDIX |
| Fiber Connector |
SC standard, ST/FC optional |
| Wavelength |
1310/1550nm |
| Input Voltage |
48VDC/1A external power supply |
| Power Consumption |
<2.5W |
| PoE Pin Assignment |
1/2 (V+),3/6 (V-) |
| PoE Output |
-48V, 0.54A, 25W |
| MTBF |
50,000 hours |
| BER |
<1/1000000000 |
| MAC Address Table |
1K |
| Buffer Size |
1M |
| Operation Temperature |
0℃~50℃ |
| Storage Temperature |
-20℃~85℃ |
| Storage Humidity |
5%~90% non-condescending |
|
Dimension
Weight
|
70mm(W) x 93mm(D) x 28mm(H)
Net weight : 0.16kg, Gross weight : 0.5kg |
Application
Connecting Networks with Reliable Optical Communication Solutions
Founded in 2003, OLYCOM is a technology-focused manufacturer and solution provider specializing in fiber optic communication and networking equipment. With more than two decades of industry experience, the company has built a strong reputation for delivering reliable, cost-effective, and scalable connectivity solutions to customers worldwide.
OLYCOM serves a diverse range of industries, including telecommunications, industrial automation, transportation, energy, enterprise networking, and smart infrastructure. By combining engineering expertise with practical deployment experience, the company helps organizations establish stable and efficient communication networks capable of supporting both current and future requirements.
1 Comprehensive Product Portfolio
OLYCOM offers a broad range of networking and optical transmission products designed to support various network architectures and deployment environments.
Key product categories include:
* Industrial Ethernet Switches
* Managed and Unmanaged PoE Switches
* DWDM and Optical Transport Systems
* Fiber Media Converters
* Optical Transceivers and SFP Modules
* Ethernet Extenders
* Fiber Access and Connectivity Solutions
* Industrial Network Communication Equipment
These products are developed to deliver dependable performance in applications requiring high bandwidth, long-distance transmission, network resilience, and flexible scalability.
2 Solutions for Diverse Industries
Modern communication networks demand high availability, stability, and adaptability. OLYCOM solutions are designed to address these requirements across a wide range of industries and operational environments.
3 Typical application scenarios include:
3.1 Transportation Networks
Supporting railway systems, highways, metro projects, airports, and intelligent transportation infrastructure with reliable data transmission and network management capabilities.
3.2 Energy and Utilities
Providing communication solutions for power generation, substations, renewable energy facilities, oil and gas operations, and utility monitoring systems operating in harsh environments.
3.3 Industrial Automation
Enabling stable connectivity for manufacturing facilities, production lines, industrial control systems, and Industrial Internet of Things (IIoT) applications.
3.4 Data Centers and Enterprise Networks
Delivering scalable networking infrastructure that supports high-speed communication, network expansion, and efficient data management.
3.5 Security and Surveillance
Facilitating the transmission of video, voice, and control signals for security monitoring, access control, and public safety systems.
3.6 Smart City Infrastructure
Supporting integrated communication networks that connect intelligent transportation, utilities, surveillance systems, and public services.
4 Global Market Reach
Over the years, OLYCOM has established a growing international presence and serves customers in more than 120 countries and regions worldwide. The company works closely with distributors, system integrators, telecom operators, project contractors, and technology partners to deliver solutions that meet diverse technical standards and market requirements.
With extensive experience supporting international projects, OLYCOM understands the importance of flexibility, responsiveness, and localized support when serving customers across different industries and regions.
5 Engineering Expertise and Manufacturing Excellence
Technology and engineering remain at the core of OLYCOM's development strategy. Continuous investment in product research, testing, and process improvement enables the company to deliver reliable solutions that meet evolving network demands.
To ensure consistent product quality, OLYCOM implements a comprehensive quality management system covering every stage of production, from component sourcing and manufacturing to testing and final inspection. Products are developed and verified in accordance with internationally recognized standards, including:
* ISO 9001 Quality Management System
* CE Certification
* FCC Compliance
* RoHS Environmental Requirements
* Relevant IEEE and ITU-T Standards
Rigorous quality control procedures help ensure product reliability, stability, and long-term performance in demanding deployment environments.
6 Flexible OEM and ODM Services
In addition to standard products, OLYCOM provides customized OEM and ODM services tailored to customer-specific requirements. The company supports hardware customization, software adaptation, branding services, and project-oriented product development.
This flexibility allows customers to accelerate deployment schedules, reduce development costs, and create solutions that align with their unique business objectives.
7 Commitment to Customer Value
OLYCOM believes that successful networking solutions should combine performance, reliability, and cost efficiency. By maintaining a strong balance between technological innovation and practical value, the company helps customers optimize infrastructure investments while achieving long-term operational stability.
Customer collaboration, technical support, and continuous improvement remain central to OLYCOM's business philosophy, ensuring that products and solutions evolve alongside changing industry needs.
8 Vision for the Future
As global demand for high-speed connectivity and intelligent infrastructure continues to grow, OLYCOM remains committed to advancing optical communication and networking technologies. The company aims to strengthen its role as a trusted global partner by delivering innovative, dependable, and scalable solutions that help build the communication networks of tomorrow.
Through technology, quality, and customer-focused service, OLYCOM continues to connect people, businesses, and industries with reliable networking solutions around the world.
