In-Built MPPT Solar PoE Switch L2 Managed Gigabit Ethernet 4 Port DIN Mounted CE

Product Name

10/100/1000Mbps Managed Industrial Solar PoE Switch(2F+4TP)

Model No.

IM-FP244S-GM

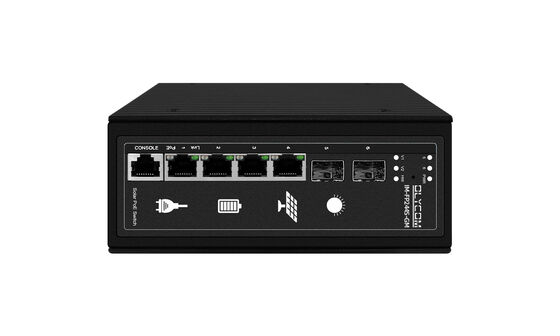

Port

4*10/100/1000Base TX PoE ports (Data)

2*100/1000M SFPl ports

PoE port

1 port supports IEEE802.3af/at/poe++/bt, max 90W PoE out

2-4 port supports IEEE802.3af/at,max 30W/port,PoE out

Managing ports

One console port

Reset key

one

PoE Bridge

Max 120W

Network protocols

IEEE 802.3;

IEEE 802.3u 100BASE-TX;

IEEE 802.3ab1000BASE-T;

IEEE 802.3x;

IEEE 802.3z 1000BASE-X;

IEEE 802.3af/at; AI PSE;

IEEE 802.3ad;

IEEE 802.3q,IEEE 802.3q/p;IEEE 802.1w,IEEE 802.1d,IEEE 802.1S

STP(Spanning Tree Protocol);RSTP/MSTP(Rapid Spanning Tree Protocol)

EPPS ring network protocol;EAPS ring network protocol

Port Specification

10/100/1000BaseT(X)Auto

Forwarding mode

store and forward (full wirespeed)

Bandwidth

20Gbps

Packet Forwarding

40.32pps

MAC address table

8K

cache

4.1M

Transmission Distance

10BASE-T:Cat3,4,5 UTP(=250meter)

100BASE-TX:Cat5 or later UTP(=100 meter)

1000BASE-TX: Cat6 or later UTP(=1000 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) Support universal BIDI

Rate

Ethernet 10Mbps half duplex, 20Mbps full duplex

Fast Ethernet 100Mbps half duplex, 200Mbps full duplex

Gigabit Ethernet 2000Mbps fuli duplex

CPU

500MHZ

FLASH

16M

RAM

128M

Watt

Charging+full load: 300w;

Switch function switch

PWR: Power indicator

SYS: System indicator

Network port: (network connection indicator light green)

PoE indicator light: (network connection indicator light orange)

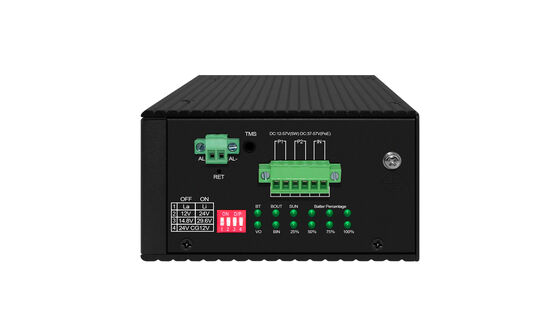

Charging LED indicator

BT: Battery status indicator; VO: POE boost successful indicator

BOUT: Battery discharge indicator; BIN: Battery charging indicator

SUN: Solar energy status indicator; 25%-100%: Battery level indicator

Charging function

Fully automatic charging, maximum efficiency 98%, maximum charging current 15A

Integrated MPPT control

Integrated battery protection function

Fully automatic battery voltage recognition

Integrated lithium battery automatic activation system

Integrated low capacity start-up protection system

Integrated battery temperature monitoring interface

Supports over-temperature protection function

Power input

Supports 12V solar panel input (≤32V) / paired with 12V battery pack

Supports 24V solar panel input (≤45V) / paired with 24V battery pack

Maximum power 1200W

Maximum solar input voltage: 57V

Supports DC input 37-57V

Supports DC/battery charge and discharge 32-45V

Battery type

Default 6 battery types

1: 12V lead-acid battery pack

2: 24V lead-acid battery pack

3: 12.6V lithium battery pack

4: 25.2V lithium battery pack

5: 14.8V lithium iron phosphate battery pack

6: 29.6V lithium iron phosphate battery pack

Customizable battery parameters

Supports maximum capacity of 500AH

Usage environment

Operation temperature :-20℃~65℃

Storage temperature :-40℃~70℃

Working humidity :10%～90%, RH Non coagulation

Storage Humidity :5%～90%, RH Non coagulation

Lightning

Protection level

6KV 8/20us;8KV ESD electrostatic protection

IP40

size(L*W*H)

Product size:157mm*115mm*45mm

Packaging size:410mm*280mm*100mm

N.W/G.W(kg)

3.5/4.1kg (Other: This product does not include solar panels or batteries)

Installation

DIN rail type (with wall mounting lug)

Warranty

Whole device for 1 year(Accessories not included)

Battery Type

Lead acid battery

Lithium battery

Lithium iron phosphate battery

Battery voltag

12V

24V

12.6V

25.2V

14.8V

29.6V

Charging mode

MPPT(current and voltage limiting - constant current - voltage limiting - Pressure and current limiting --- floating charge)

MPPT (current and voltage limiting constant current constant voltage)

Auxiliary Charging Function

Support

Battery Voltage Detection Threshold

<12.6V

<24.8V

<12.2V

<24.4V

<14.2V

<28.8V

Rated charging current

15A

Float current

50mA-1000mA

—

Float time

3 hours

—

Charging stop

Arrival float timing

Rated voltage and simultaneous charging current < 30mA

Rated discharge current

6.5A

3.6A

8.5A

4A

6.5A

4A

PoE output voltage

42~57V

PoE output power

Maximum 120W

Photovoltaic open circuit voltage

32V

45V

32V

45V

32V

45V

Photovoltaic input

Max 57V,Max 1200W

Maximum charging voltage

14.7V

29.6V

12.6V

25.2V

14.8V

29.6V

Floating charge voltage

13.7V

27.4V

—

—

—

—

Discharge cut-off voltagE

10.1V

20.2V

9V

18V

10.2V

20.4V

Type

Default 6 battery type specifications (12V battery pack * 3, 24V battery pack * 3) Customizable battery parameters

Supports up to 500AH

Over temperature protection

Supports automatic shutdown of motherboard over temperature and battery over temperature (optional)

Input protection

Overcurrent, overvoltage, delayed start and anti connection protection

Output function

Overcurrent, overvoltage and short circuit

Indicator light

System normal operation indicator, battery lamp, input normal indicator, charge discharge indicator and multi-functional composite fault indicator

Working temperature

-20℃ ~+65℃
