60KM Industrial PoE Media Converter Gigabit Ethernet SC Fiber Duplex Unmanaged Mini Size

1pc
MOQ
Negotiable
Price
60KM Industrial PoE Media Converter Gigabit Ethernet SC Fiber Duplex Unmanaged Mini Size
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Rugged Ethernet PoE Media Converter
Fiber: 1*fixe SC Connector, Duplex
RJ45: 1*10/100/1000M Copper
Feature: PoE Af/at, Unmanaged
Customization: Support
Input Power: Dual 48~52VDC, 6-Pin Terminal Block
Highlight:

60km transmission Industrial Ethernet Media Converter

,

SC Connector Industrial Ethernet Media Converter

,

60km trasnmission Rj45 media converter
Basic Infomation
Place of Origin: Shenzhen, China
Brand Name: OLYCOM
Certification: CE, FCC, RoHS
Model Number: IM-PC111GE/SC60
Document: OLYCOM Industrial Networkin...24.pdf
Payment & Shipping Terms
Packaging Details: One unit device and one user manual are inside one box , sealed and well protected.
Delivery Time: 3-5 working days
Payment Terms: T/T, Paypal
Supply Ability: 2000 pieces per month
Product Description

15.4W/30W PoE 60KM Fiber Media Converter



Key Features of Industrial Ethernet Media Converter



  • Supply active PoE(DC48V) to PoE IP cameras, WAPs etc. through Cat5 or above copper cable
  • 1x1G Fixed optical SC fiber*60KM distance
  • 1x10/100/1000Mbps Auto-sensing RJ45, IEEE 802.3af/at power
  • Detect the PoE modes(Non-PoE, 802.3af/at compliant) of connected electrical equipment
  • 6KV Ethernet surge protection, adapt to a harsh outdoor environment
  • Support Auto MDI/MDIX
  • Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
  • IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
  • DIN rail or Wall installation
  • Power range up to 100 meters
  • Comply with FCC and CE standards
  • A store-and-forward switching mechanism
  • Operating environment temperature: -40°C～75°C


Specification of PoE Media Converter



Product Name 10/100/1000Mbps Industrial PoE Fiber Optic Media Converter(1F+1TP)
Model No. IM-PC111GE/SC60
Port

1x1000M SC Fiber, 60Km

1x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)

1x6-PIN Power Terminal Block
Protocol

IEEE 802.3(10Base-T)

IEEE 802.3u(100Base-TX)

IEEE 802.3ab(1000Base-TX)

IEEE 802.3af 15.4W(PoE)

IEEE 802.3at 30W(PoE+)
Switching Features

Transmission mode: storage and forward

Forwarding delay: <10us

System bandwidth: 4Gbps (non-traffic jam)

Forwarding rate: 5.952Mmps

MAC: 4K

Packet buffer size: 1.75Mb
Network Media

10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)

100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m)
LEDs

Power, Fiber, Network, PoE

PWR: Power



Fiber: FX1

On: transmission is normal

Off: transmission is NOT normal(faulty optical module or disconnected)



Copper orange: PoE indicator

On: PoE is working

Off: PoE is not working or this is Non-PoE device



Copper green: Speed indicator

On: transmission speed is 1000Mbps

Blinking: in transmission

Off: Disconnected or working speed is 10/100Mbps
Power Supply

PoE power supply input voltage: 48V (max 52V)

Single PoE power supply output power: 30W

Total budget: 30W

PoE output voltage: 48V

Reverse connection: support
PoE Wiring 1/2 (V+), 3/6 (V-)
Environment

Working temperature: -40°C～75°C

Storage temperature: -40°C～85°C

Working humidity: 10%～90%, non-condensing

Storage humidity: 10%～95%, non-condensing
Industry Standards

ESD: IEC61000-4-2, ±15KV air, ±6KV contact

EFT: IEC61000-4-4, General ±6KV

Surge: IEC61000-4-5, Differential ±2KV, Common±6KV
Certification

CE-EMC: EN 55032:2015+AC: 2016+A1:2020+A11: 2020

EN 55035:2017+A11: 2020/EN IEC 61000-3-2:2019/A1: 2021

EN 61000-3-3: 2013/A2: 2021/AC:2022

CE-LVD: EN IEC 62368-1: 2020+A11:2020

FCC: 47 CFR FCC Part 15 Subpart B(Class B) ANSI C63.4: 2014
Mechanical information

Shell: Corrugated metal shell, IP40 grade level

Dimension: 114*93*35mm

Mounting method: Din-rail/Wall mounting

Weight: 0.35Kg/0.45Kg(Net/Gross)
Warranty 3 years, lifetime technical support



FAQ of Unmanaged Media Converter



Q: What about the payment terms?

A: We can accept PayPal, Western Union, T/T and etc.



Q: How does your factory do for quality control?

A: Quality is the priority. All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials. Every product must be tested before shipping to our customers. The quality is attached to great importance during the whole production process.



Q: How is the after-sale service?

A: 3 years Manufacturer Warranty (Excluding contrived damage or misusage). If there is any compatibility problem or any quality problem, the goods can be returned to us to repair or replace. The buyer should be responsible for all the charges of returning and second shipping.



Application


60KM Industrial PoE Media Converter Gigabit Ethernet SC Fiber Duplex Unmanaged Mini Size 0

Photos

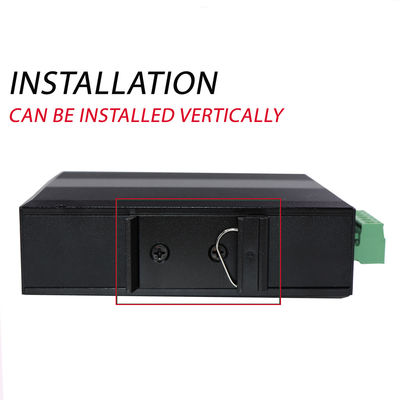

60KM Industrial PoE Media Converter Gigabit Ethernet SC Fiber Duplex Unmanaged Mini Size 1

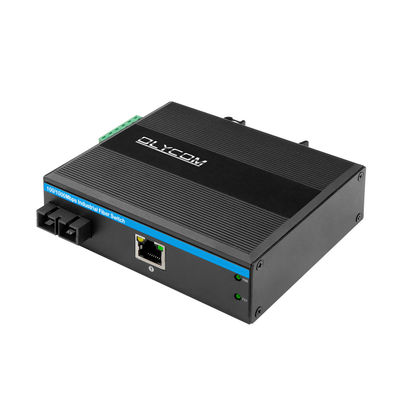

60KM Industrial PoE Media Converter Gigabit Ethernet SC Fiber Duplex Unmanaged Mini Size 2
