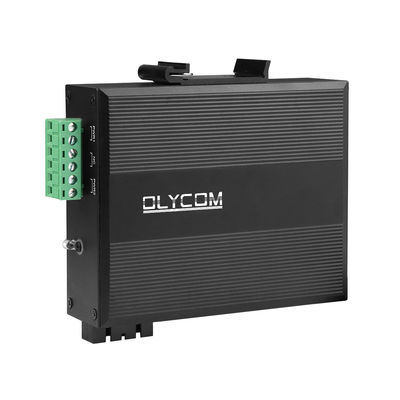

Gigabit Industrial Media Converter SC Duplex With Durable Metal Shell
IM-MC110GE series is the 10/100/1000 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
- 1 x 10/100/1000Mbps Auto-sensing RJ45 ports
- 1 x 1000Mbps SC dual fiber ports
- 4 KV Ethernet surge protection, adapt to a harsh outdoor environment
- Support Auto MDI/MDIX
- Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
- IEEE 802.3 100Base-T and IEEE 802.3u 1000Base-TX compliant
- A store-and-forward switching mechanism
- Transmission mode: storage and forward
- System bandwidth:40Gbps (non-traffic jam)
- 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
- 100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
- Operating temperature:-40 ° ~85 ° c
- Storage temperature:-40°～ 85°C
- Working humidity:10%～90%,non-condensing
- Storage humidity:10%～95%,non-condensing
Packaging And Delivery
One 22*16*6cm box includes one media converter, one user manual, and one warranty card.
Lead Time: usually three to five days, it depends on the quantity.
Q: What is the MOQ?
A: We do not have MOQ, 1 sample is available.
Q: How long is the lead time?
A: Usually 3-5days. But need to check when you process orders.
Q: Do you have CE, FCC, ROHS?
||Gigabit Industrial Media Converter SC Duplex
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m)
100BASE-TX: CAT5 or above shielded twisted pair(≤100m)
SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km
||Power, network, fiber
Input voltage:DC 9-52V
Reverse connection: support
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
Traffic Control: NEMA-TS2
Rail Traffic: EN 50121-4
CE Mark, commercial
Shell: Corrugated metal shell
Safety class: IP40
Dimension: 113.8 x 93 x 34.9mm
Mounting method: Din-rail mounting
||Replacement within 1year; 5 years repairing
