Hub Desktop Mounting 4 Port Industrial Network Switch 10/100Mbps

Network Switch 4 Port 10/100 Mbps Hub Desktop And Din Rail Mounting

Introduction

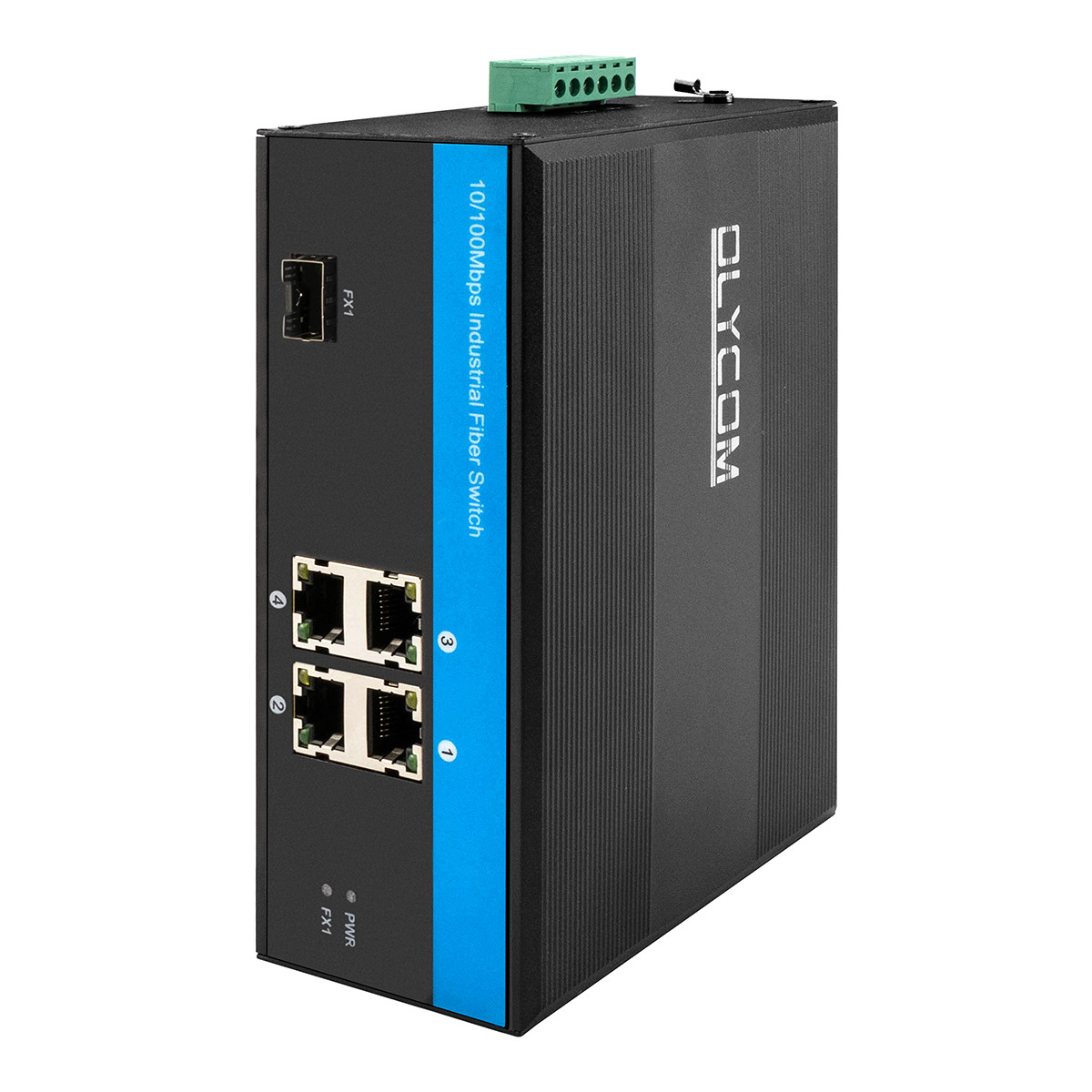

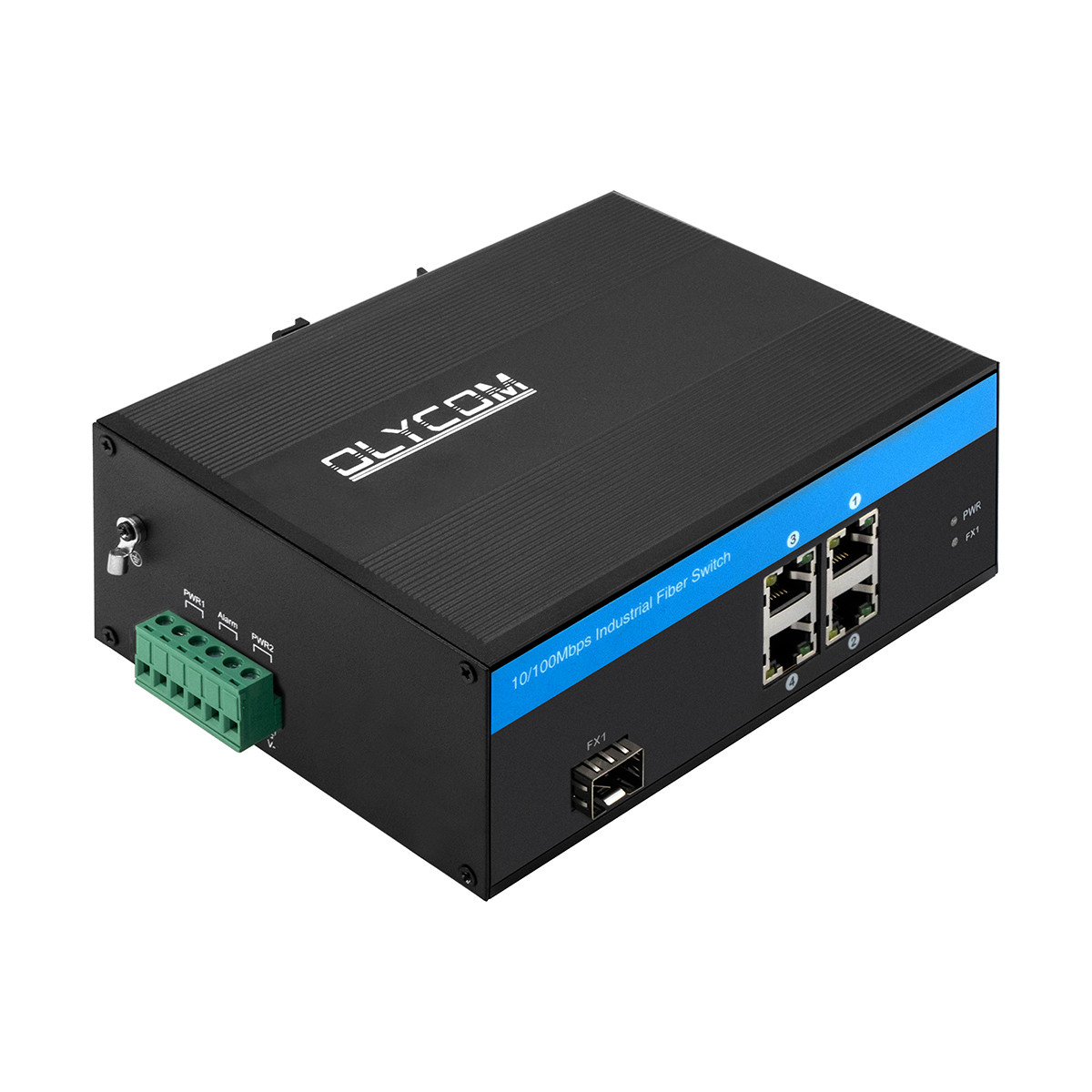

IM-FS140FE series is the 10/100 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP44 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

Key Features

1. 4 x 10/100Mbps Auto-sensing RJ45 ports
2. 1 x 100Mbps SFP fiber port
3. 4KV Ethernet surge protection, adapt to a harsh outdoor environment
4. Support Auto MDI/MDIX
5. Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
6. IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
7. A store-and-forward switching mechanism
8. Operating environment temperature:-40 ° ~85 ° c
9. Transmission mode: storage and forward
10. System bandwidth:40Gbps (non-traffic jam)

Industry Standards

• EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
• EMS: EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8
• Traffic Control: NEMA-TS2
• Vibration: IEC 60068-2-6
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• Rail Traffic: EN 50121-4

Quality Control

1. All the products we offer are brand new with new components and parts, and we absolutely never use old and refurbished materials.
2. Every production process has a special person to test to ensure quality
3. Every product must be tested before shipping to our customers. The quality is attached to great importance during the whole production process.
4. All products have passed CE, FCC, ROHS, and other certifications

Specification

Application
