Single Fiber WDM Etherner Optic Media Converter Single Mode Over Cat6 Cable
Introduction
Olycom OM230-FE series Megabit Ethernet SFP fiber media converters feature below
Specification
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u 100BASE-TX/FX (Fast-Ethernet), IEEE802.3x (Flow Control), IEEE802.1q, IEEE802.1p QoS, IEEE802.1d Spanning Tree |
| 10/100BASE-T | STP or UTP Category 5/5e/6 cable (Max. 100m) |
| SFP | SX, LX, EX, ZX, EZX, and Bi-Di optical transceivers are available |
| Conversion Mode / Delay Time | Store-and-Forward < 10us, straight-through<0.9us |
| Flow control | Full duplex-flow control, Half duplex-back pressure |
| RJ-45 Port | Auto-MDI/MDIX |
| Fiber Connector | LC (duplex), LC/SC(simplex) |
| Wavelength | 1310/1550nm |
| Dimensions | 173mm(W) x 128mm(D) x 32mm(H) |
| Weight | Net weight : 0.74kg, Gross weight : 0.96kg |
| Input Voltage | AC100 ~ 240V / 50-60HZ |
| Power Consumption | <2.5W |
| MTBF | 50,000 hours |
| BER | <1/1000000000 |
| MAC Address Table | 1K |
| Buffer Size | 128K |
| Operating Temperature | 0℃~50℃ |
| Storage Temperature | -40℃~70℃ |
| Storage Humidity | 5%~90% non-condescending |
Ordering Information
| OM230-FE/XX-XX | 10/100M, Standalone, fiber media converter, with SFP slot but without SFP, internal power supply |
| OM230-FE/LC-A2 | 10/100M, Standalone, fiber media converter, with SFP , multi mode, LC, 2km, internal power supply |
| OM230-FE/LC-20 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 20km, internal power supply |
| OM230-FE/LC-40 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 40km, internal power supply |
| OM230-FE/LC-60 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 60km, internal power supply |
| OM230-FE/LC-80 | 10/100M, Standalone, fiber media converter, with SFP , single mode, LC, 80km, internal power supply |
Application Diagram

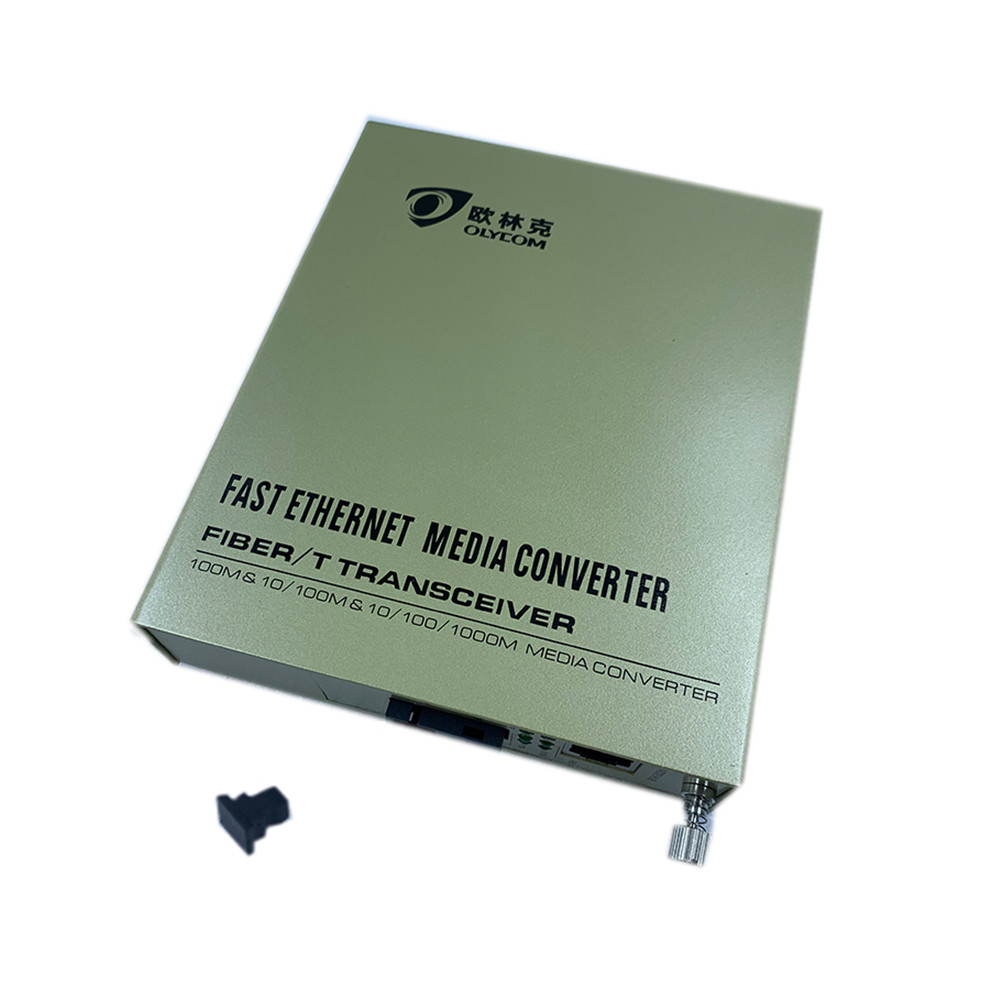

Product Pictures
