8ch AHD/HD CVI TVI Video RS422 Data Fiber Optic Converter
Olycom OM615-8V↑1D↓WT/R AHD/TVI/CVI optical video transmitter and receiver help
Key Features
Specification
| Optical | |
| Wavelength | 1310nm/1550nm |
| Output Power | -8~3dBm |
| Optic fiber | Single mode:20Km/40km, multimode:550m |
| Receiving sensitivity | -30dBm |
| Interface | FC standard, ST/SC optional |
| Video | |
| Channel Quantity | 8ch, from camera to control center |
| Video Input /Output Amplitude | typical 1Vpp (peak-to-peak), peak 1.2Vpp |
| Video Input Impedance | BNC 75Ω (unbalanced) |
| Digital Sampling | 64MHZ |
| Digital Bandwidth | 512MHZ |
| Differential Gain Phase | 10%-90% APL DG<1% (typical) |
| Video Bit Width | 8 bit |
| S/N ratio | >70dB |
| Interface | BNC |
| RS485 Data | |
| Channel Quantity | 1ch, from control room to camera |
| Data Rate | 115Kbps |
| Electrical. Environmental. Mechanical | |
| Operating voltage | DC 5V1A |
| Operating temperature | -20℃～+70℃ |
| Storage temperature | -45℃～+85℃ |
| Weight | 0.66kg/piece (Net Weight), 1.00 kg/piece (Gross Weight) |
| Dimension-standalone | 179mm ×130.5mm ×50mm |
Ordering Details
| OM615-8V↑1D↓WT/R-FC20 | 8ch video Tx, 1ch RS485 data Rx, singlemode, single fiber, 20Km, FC connector |
| OM615-8V↑1D↓MT/R-FC5 | 8ch video Tx, 1ch RS485 data Rx, multi-mode, single fiber, 0.5Km, FC connector |
| M,W | M-Multi-mode, W-Single mode |
| S,U | S-1310nm, U-1550nm |
| T,R | T -Transmitter, R-Receiver |
| FC,ST,SC,LC | Fiber connector type |
| ↑,↓, ↑↓ | ↑- forward (from TX to RX), ↓ - reverse (from RX to TX), ↑↓- bidirectional |
| 1,2,3,… | Digits ahead of signal-quantity of required channel |
| 05, 20, 40… | Digits next to fiber connector-working distance |
Below listed are some items for your reference. Please contact us for more configurations/customization/OEM/ODM.

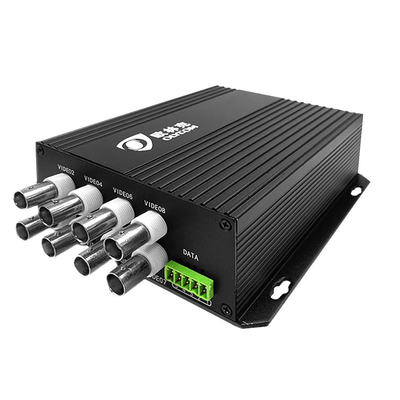

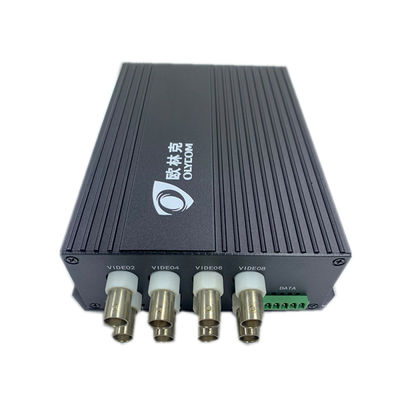

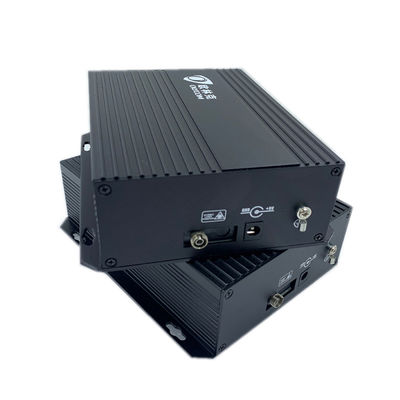

Product Photos
