Media Converter Fast Ethernet SC Dual Fiber With Auto-Sensing RJ45 Ports
Introduction of Media Converter
IM-MC110FE series is the 10/100 Mbps industrial fiber switch, operating temperature -40 ℃ to + 75 ℃, support wide voltage dual power input, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification, and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.
Key Features of Media Converter
FAQ of Media Converter
Q: How can I place an order?
A: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email/phone, in case of any delays.
Q: What is your MOQ?
A: 1 piece.
Q: Do you have any certificates?
A: Authenticated of CE, RoHS, FCC, ISO9001, and etc.
Q: Can I get a sample?
A: We can provide samples, feel free to contact me to talk about more details.
Specification of Media Converter
| Product Name | Media Converter Fast Ethernet |
| Model No. | IM-MC110FE |
| Port |
1 x 100Mpbs port SM:1310nm/1550nm,20Km 1490nm/1550nm,40~120Km MM:1310nm,2Km 1x10/100M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Switching features |
Transmission mode: storage and forward System bandwidth:40Gbps (non-traffic jam) DRAM size: 128M |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SC Dual fiber port, transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber |
| Power supply |
Input voltage:DC 12-52V No-load power:5W Reverse connection: support |
| Environment |
Working temperature:-40°～ 75°C Storage temperature:-40°～ 85°C Working humidity:10%～90%,non-condensing Storage humidity:10%～95%,non-condensing |
| Industry Standards |
EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control: NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic: EN 50121-4 |
| Safety |
CE Mark , commercial CE/LVD EN60950 |
| Mechanical information |

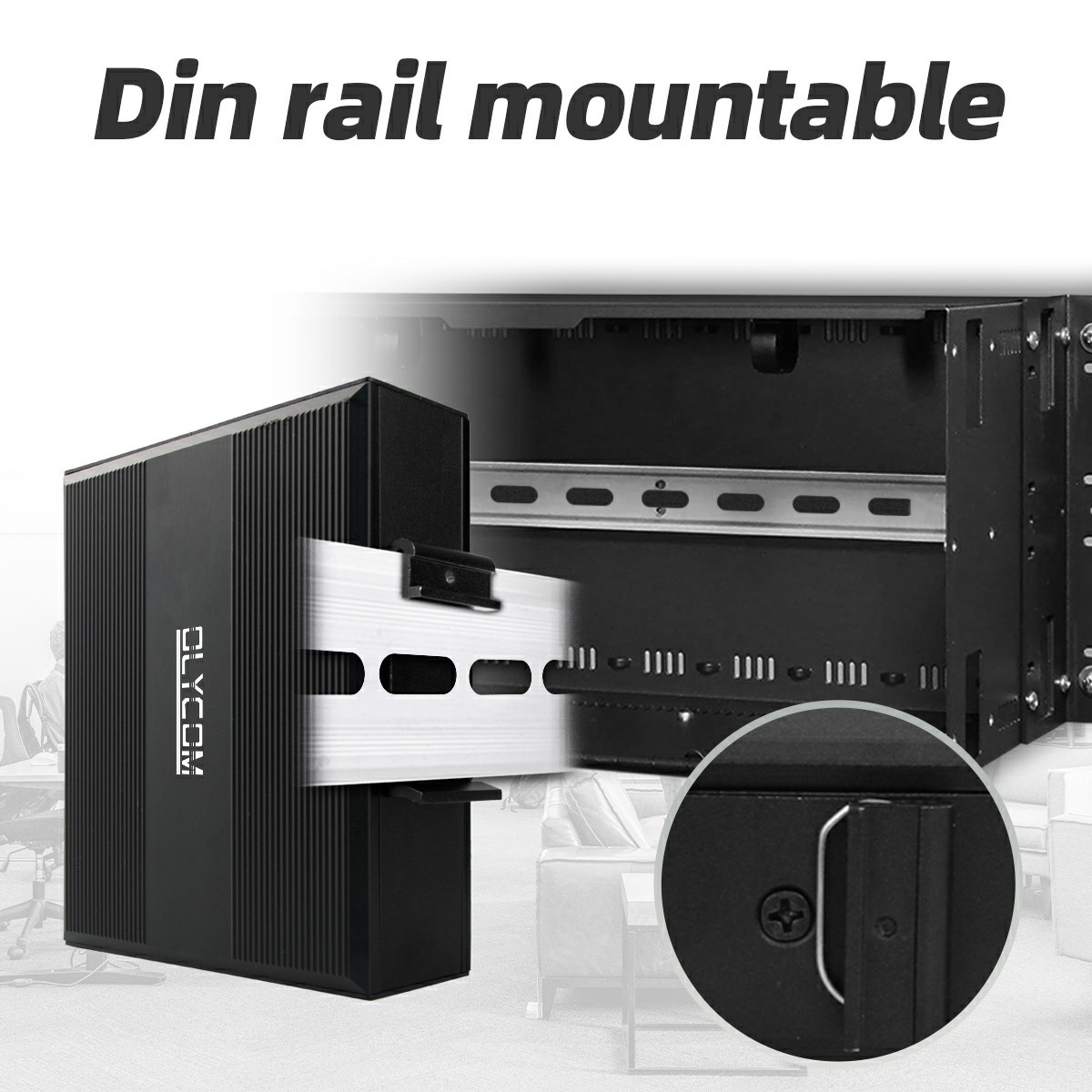

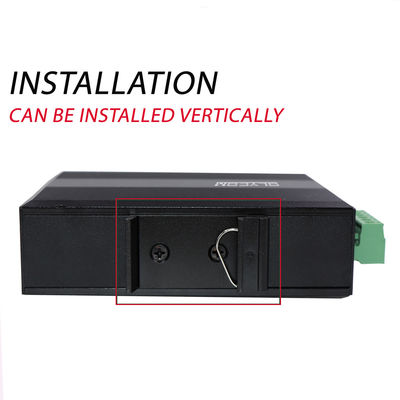

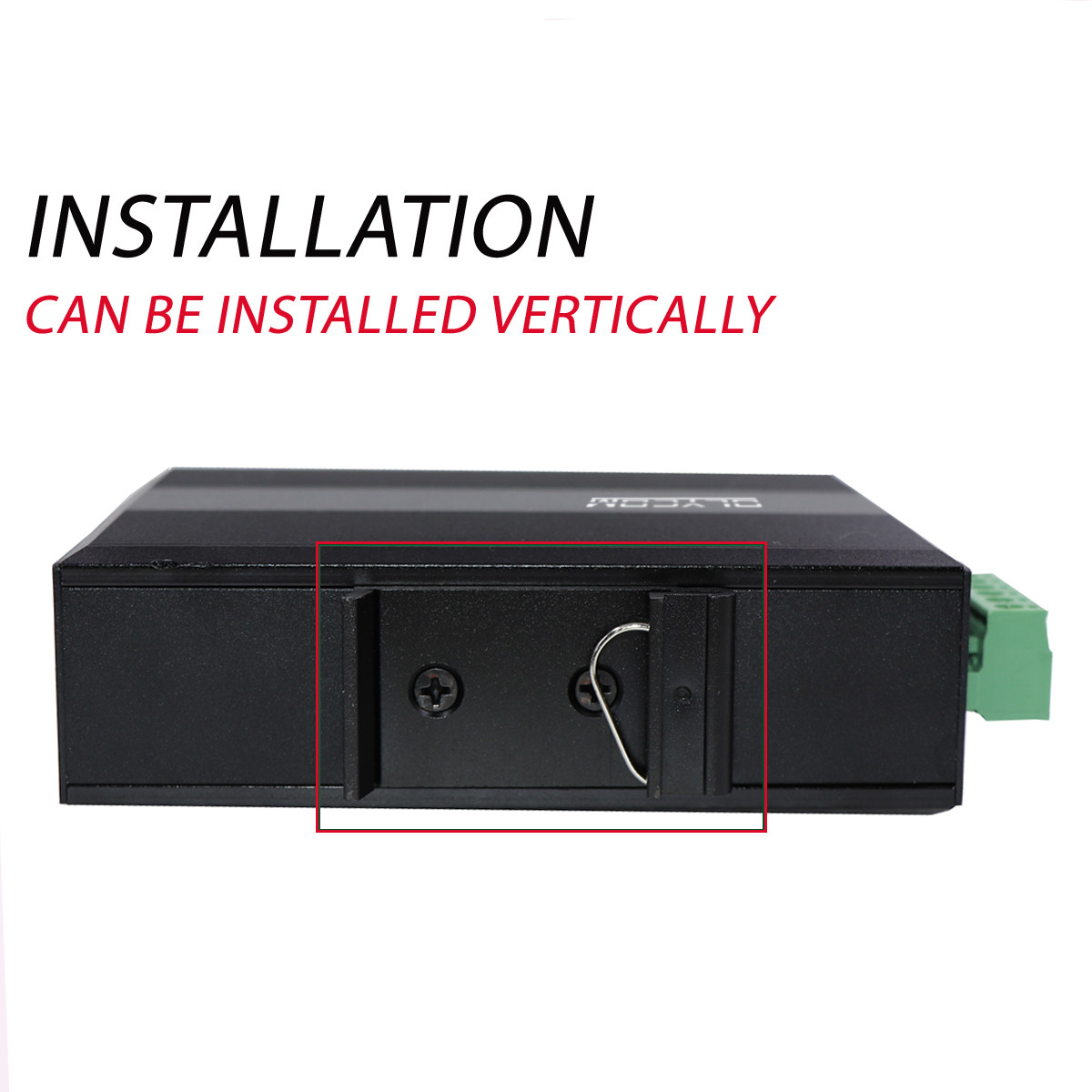

Shell: Corrugated metal shell Safety class: IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method: Din-rail mounting |
| Warranty | 3 years |
Application of Media Converter

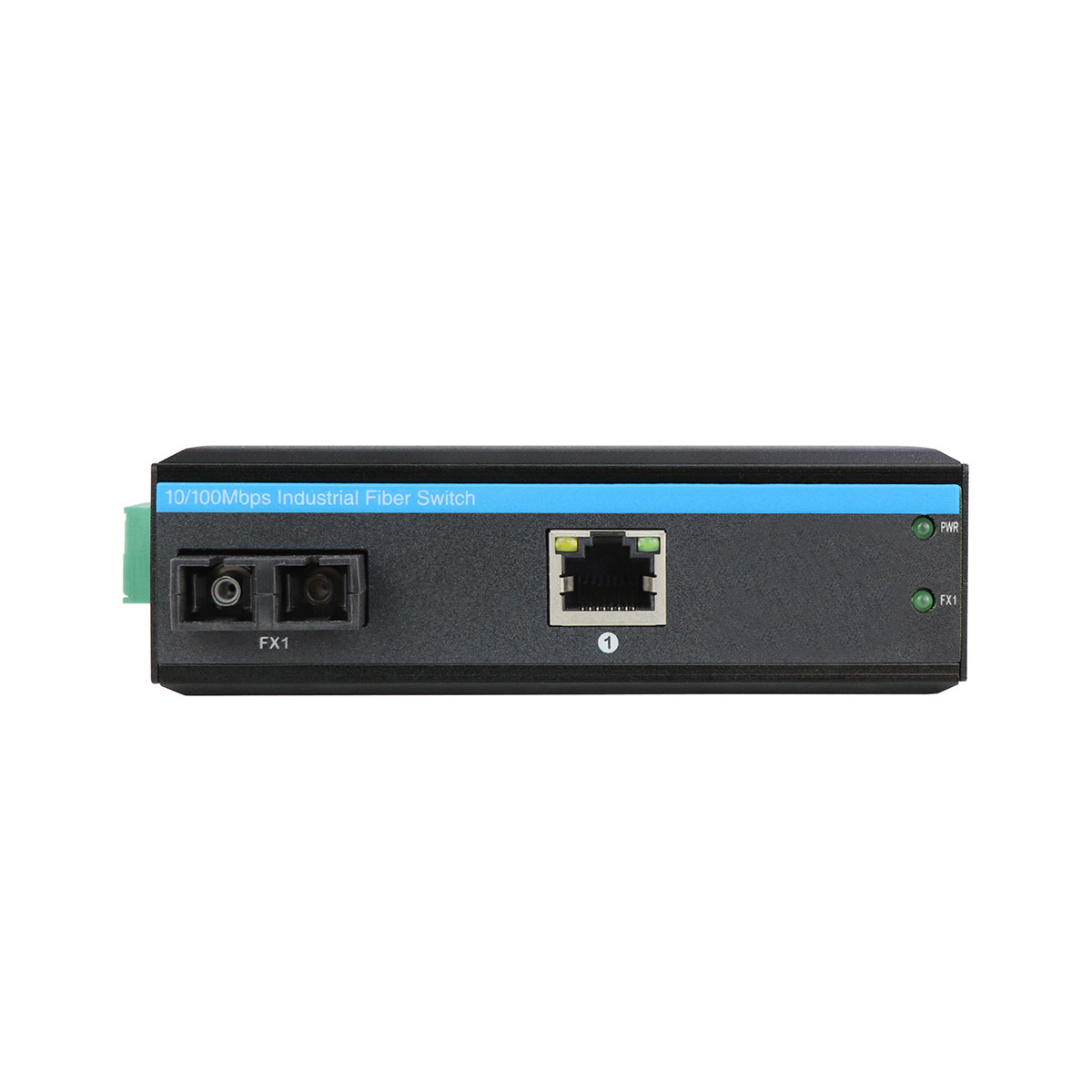

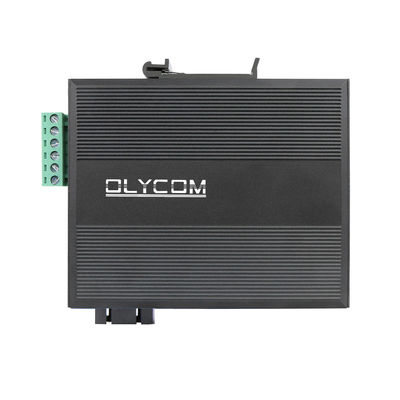

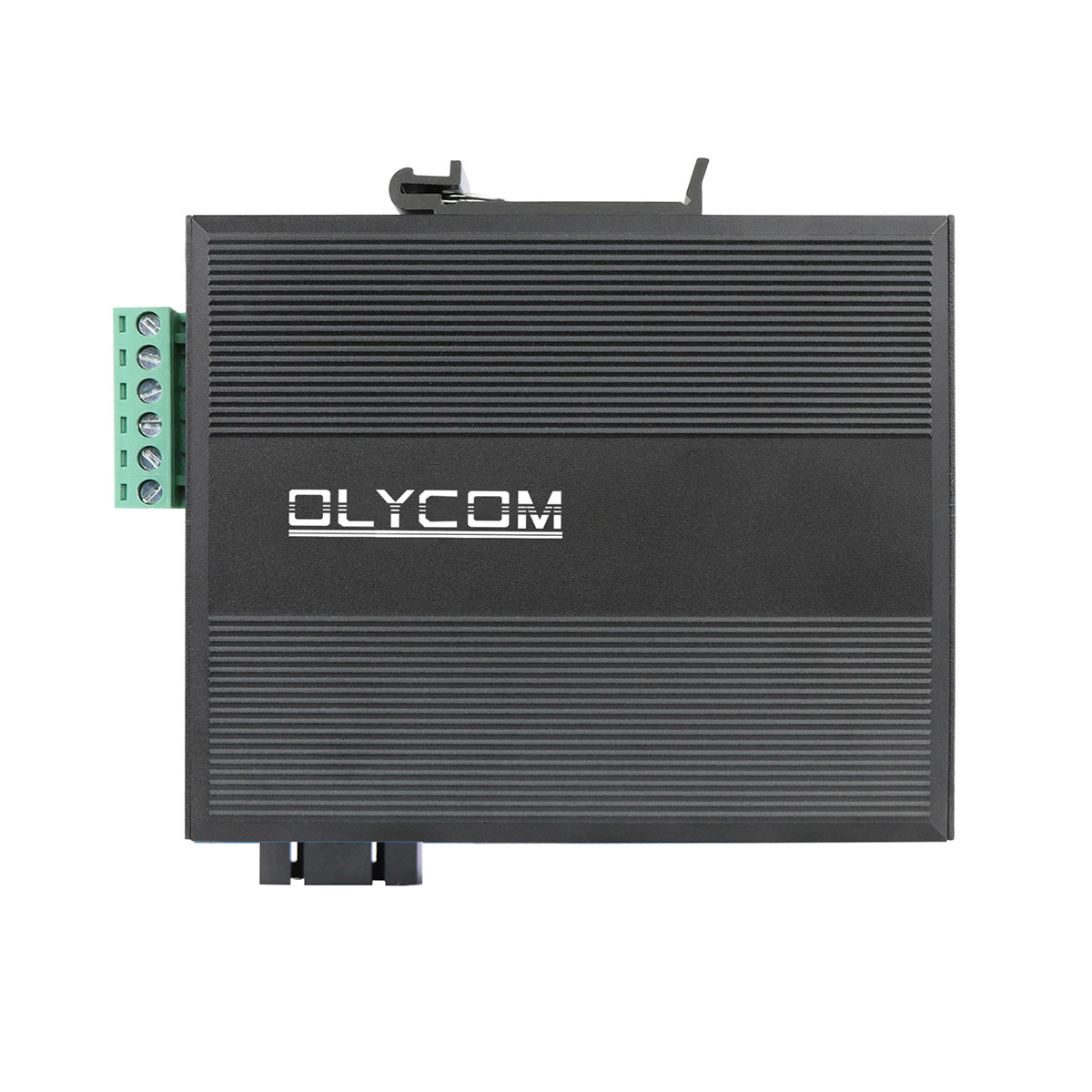

Photo of Media Converter
